Description
Display
| Panel Technology |
U-IPS |
Viewable Image Size |
55 " |
| Aspect Ratio |
16:9 |
Native Resolution |
3840x2160 |
| Supported Resolutions |
DIsplayPort: V1.4 - Up to 7680 x 4320 (30Hz - compressed image)HDMI: V2.0 - Up to 4096 x 2160 (60Hz) |
Pixel Pitch |
0.32 mm |
| Pixels Per Inch |
81 @ native resolution |
Backlight Type |
LED Edge-lit |
| Brightness (typical) |
700 cd/m2 |
Contrast Ratio (typical) |
≥8,000:1 (Out of the box conditions, local dimming ON) |
| Viewing Angle (typical) |
178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10 |
Response Time (Gray to Gray) |
8 ms |
| Refresh Rate |
60Hz |
Active Screen Area |
47.2 x 26.8 in. / 1209.6 x 680.4mm |

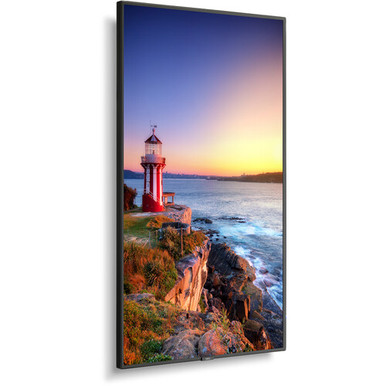

| Orientation |
Landscape/Portrait |
Dimming Capability |
Local Dimming Capable |
| Displayable Colors |
More than 1.08 billion (10-bit) |
Color Temperature (Max) (°K) |
15000K |
| Color Temperature (Min) (°K) |
3000K |
Gamma (Typical) |
Custom adjustment from 0.5 - 4.0 (0.1 increments) through SpectraView Engine, sRGB, L Star, Rec. 1886, HDR-Hybrid Log, HDR-ST2084 (PQ), DICOM, Programmable |
Synchronization Range
| Horizontal (Analog/Digital) |
Digital: 15.0 - 135.0kHz (HDMI), 22.0 - 134.0 (DisplayPort) |
Vertical |
Digital: 23.0 - 76.0Hz |
Input Signal
| Video |
Digital TMDS / DisplayPort |
|
Signal Compatibility/Connectivity
| PC Signal Compatibility |
Yes |
Macintosh Signal Compatibility |
Yes |
| Video |
Digital TMDS / DisplayPort |
External Control |
LAN In/Out and RS232 In - Full external control capabilities |

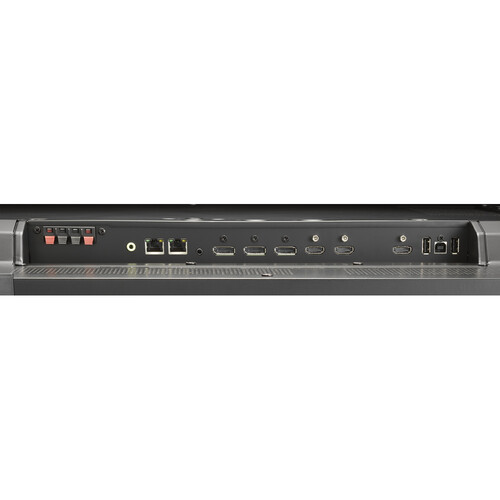

Input Terminals
Digital:
HDMI (2.0 x 2 with HDCP), DisplayPort (1.4 x 2 with HDCP)
Audio:
DisplayPort Audio x2, HDMI Audio x2
External Control:
RS-232C, LAN (100Mb), 3.5mm Mini-Jack (IR Remote)
Data:
USB-A (Hub/0.5A), USB-B (Control/Software), USB-A (Service/2A)
|
Output Terminals
Digital:
HDMI (2.0), DisplayPort (1.4)
Audio:
3.5mm Mini-Jack
External Control:
LAN (100Mb)
|
Power Consumption (typical)
| On |
110W |
ECO Mode Standby |
<0.5W |
| Network Standby |
0.5W |
Power Consumption (max) |
145W (Max Brightness), 295W (Brightness Max, SDM Max, Volume Max) |
| Power Savings Mode |
2 W |
Power Requirements |
1.4 - 3.3A @ 100V - 240V |
View AllClose
Warranty Information
1 Year Parts & Labor Manufacture Warranty
