Panel Technology S-IPS
Native Resolution 3840×2160, 3840×2160 Supported Resolutions
Pixel Pitch 0.56 mm
Brightness (maximum) 500 cd/m 2
Viewing Angle (typical) 178 Vert., 178 Hor. (89U/89D/89L/89R) @ CR>10
Refresh Rate 60Hz, 60Hz Active Screen Area 84.99 x 47.81 in. / 2158.85 x 1214.35mm Orientation Landscape/Portrait Dimming Capability Local Dimming Capable Displayable Colors More than 1.07 billion Synchronization Range Horizontal (Analog/Digital)

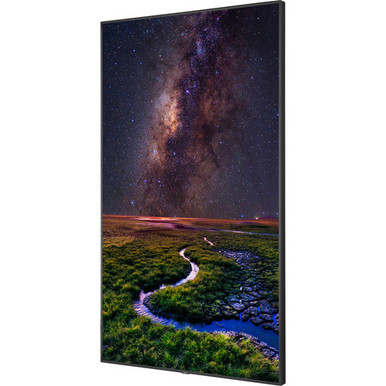

Orientation Landscape/Portrait
Displayable Colors More than 1.07 billion
Horizontal (Analog/Digital) 26kHz – 135.0kHz
PC Signal Compatibility Yes
On 380W
Network Standby 2W
Input Current 7.5A @ 100V 3.1A @ 240V
Bezel Width (Left/Right, Top/Bottom) 0.63 in./0.63 in., 0.63 in./0.63 in. : 15.9 mm/15.9 mm, 15.9 mm/15.9 mm
Operating Temperature 32-104 F / 0-40 C
Operating Altitude 9843 ft. / 3000m
Storage Humidity 10-90%
Optional Table Top Stand (ST-801) External Speakers (SP-TF1) Any OPS Option Card Standard Wall Mount (WMK-3257) Large Wall Mount (WMK-6598) Human Sensor Accessory (KT-RC2) Compute Module Interface Board (DS1-IF10CE) NEC Raspberry Pi Compute Module (RPi3CM16GB) IR Touch Overlay (OLR-751)
Bezel Width (Top) 0.63″
Bezel Width (Bottom) 0.63″
Bezel Width (Left) 0.63″
Bezel Width (Right) 0.63″
Processor Speed 2.10 GHz
Processor Core Quad-core (4 Core)
Standard Memory 4 GB
Solid State Drive Capacity 64 GB
Screen Size 98″
Display Screen Type LCD
Display Resolution 3840 x 2160
Backlight Technology Direct LED
Scan Format 2160p
Brightness 500 Nit, (maximum) 500 cd/m 2
Ethernet Yes
Wireless LAN Yes
USB Yes
HDMI Yes
Serial Yes, Yes Specifications: Display Panel Technology S-IPS Viewable Image Size 98 “
1300 1 (without local dimming)
500 cd/m brightness combined with UHD resolution and new anti-reflective screen surface will capture the attention of the audience while allowing for clear visibility in higher ambient light conditions
SpectraView Engine allows for complete color, intensity, gamma or uniformity control for the ultimate imaging performance
Integrated Media Player allows for audio, video or image playback via USB or SD card
Wireless LAN: Yes
Contrast Ratio (typical) 1300:1 (without local dimming) Viewing Angle (typical) 178 Vert., 178 Hor. (89U/89D/89L/89R) @ CR>10 Response Time (typical) 8 ms
26kHz 135.0kHz
Signal Compatibility/Connectivity PC Signal Compatibility Yes

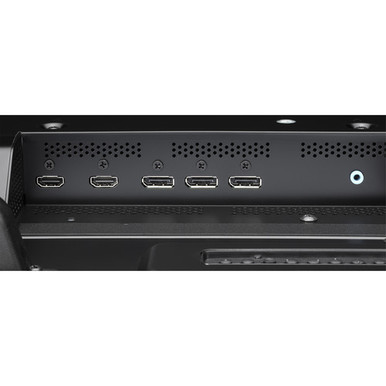

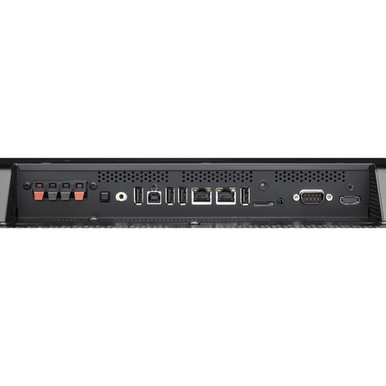

Input Terminals Digital HDMI 2.0 (3), DisplayPort 1.2 (2) Audio: Audio Mini-Jack, DisplayPort Audio, HDMI Audio External Control: RS-232C, LAN, IR Remote Data: microSD (Media Player), USB 2.0 (Media Player, USB (Service), USB Type-B (Upstream), USB x 2 (Both for Compute Module, 1 x 5V/2A Powered)
Output Terminals Digital DisplayPort (Outputs DisplayPort1 or Option) Audio: Audio Mini-Jack, External Speaker Out (2), DisplayPort Audio External Control: LAN
Macintosh Signal Compatibility Yes Power Consumption (typical) On 380W ECO Mode Standby 0.5W Network Standby 2W, (max)
650W (520W Brightness Max)
Macintosh Signal Compatibility Yes Input Current 7.5A @ 100V 3.1A @ 240V Physical Specifications
Macintosh Signal Compatibility Yes Bezel Width (Left/Right, Top/Bottom)
Macintosh Signal Compatibility Yes Dimensions (WxHxD) With stand: 2193.8 x 1286.0 x 606.0mm / 86.37 x 50.63 x 23.9 in. Without stand: 86.37 x 49.17 x 3.66 in. / 2193.8 x 1248.8 x 93 mm Shipping: 2355.0 x 1454.0 x 330.0mm / 92.72 x 57.24 x 12.99 in. Weight
Net Weight (with stand) 214.5lbs. / 97.30kg
Net Weight (without stand) 198.4 lbs. / 92 kg. Shipping: 242.5 lbs. / 110.0kg VESA Hole Configuration 400 x 400mm (M8 x 16mm) 600 x 400mm (M8 x 16mm) Environmental Conditions
Macintosh Signal Compatibility Yes Operating Temperature 32-104 F / 0-40 C
Macintosh Signal Compatibility Yes Operating Humidity 20-80%, Altitude 9843 ft. / 3000m Storage Temperature -4-140 F / -20-60 C Storage Humidity 10-90% Storage Altitude 40,000 ft. / 12,192m
Macintosh Signal Compatibility Yes Limited Warranty (parts & labor) 3 Years Advanced Replacement Additional Features
SpectraView Engine Color Control (Including Uniformity Adjustment) Integrated OPS Option Slot Localized Dimming On-Screen Key Guide
USB Upstream/Downstream RS-232 Control and Communication CEC Communication
USB Upstream/Downstream HDCP 1.4 and 2.2 support through HDMI, 1.3 support through DisplayPort Firmware via USB/Network Landscape/Portrait Capable Image Flip TileMatrix (10 x 10) Carbon footprint meter 24/7 Scheduler with Real Time Clock Holiday Settings Screen saver function Multi-Picture Mode 28% haze panel Ambient light sensor Screen Saver Function Optional Human Sensor

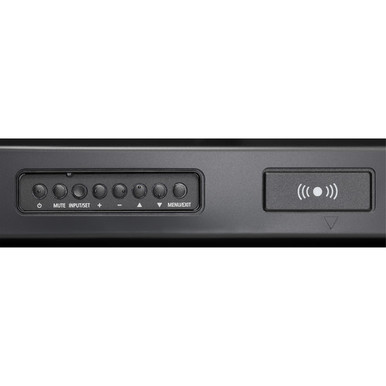

USB Upstream/Downstream Intelligent Wireless Data (Near Field Communications) Metal rear cabinet Carrying Handles Variable picture modes
USB Upstream/Downstream Advanced video settings (Noise Reduction, Adaptive Contrast)
USB Upstream/Downstream Input labeling Backlight adjust
USB Upstream/Downstream Aspect ratio control Built-in 10W x 2 speakers
Powered USB NaViSet Administrator Compatible Auto ID/IP Address Control Crestron RoomView Support AMX Beacon PJLInk Support
Powered USB HDMI and DisplayPort Cable Included Accessories Optional Table Top Stand (ST-801) External Speakers (SP-TF1) Any OPS Option Card
Powered USB Standard Wall Mount (WMK-3257) Large Wall Mount (WMK-6598)
Powered USB Human Sensor Accessory (KT-RC2)
Powered USB Compute Module Interface Board (DS1-IF10CE)
Powered USB NEC Raspberry Pi Compute Module (RPi3CM16GB) IR Touch Overlay (OLR-751) Cooling Method
Powered USB Integrated Temperature Sensors and Cooling Fans
SKU V984Q-PC4
