NEC MultiSync M491 49" Class HDR 4K UHD Commercial IPS LED Display

Free Shipping
(No reviews yet) Write a Review
  • NEC MultiSync M491 49" Class HDR 4K UHD Commercial IPS LED Display
  • NEC MultiSync M491 49" Class HDR 4K UHD Commercial IPS LED Display
  • NEC MultiSync M491 49" Class HDR 4K UHD Commercial IPS LED Display
  • NEC MultiSync M491 49" Class HDR 4K UHD Commercial IPS LED Display
  • NEC MultiSync M491 49" Class HDR 4K UHD Commercial IPS LED Display
  • NEC MultiSync M491 49" Class HDR 4K UHD Commercial IPS LED Display
  • NEC MultiSync M491 49" Class HDR 4K UHD Commercial IPS LED Display
  • NEC MultiSync M491 49" Class HDR 4K UHD Commercial IPS LED Display


NEC M491 Overview

Advertise your product or business digitally with the NEC MultiSync M491 49" Class HDR 4K UHD Commercial IPS LED Display. It has up to a 500 cd/m² brightness output with an 8000:1 typical contrast ratio to help enhance visibility in bright environments. The display features a 4K UHD native resolution, allowing you to display highly detailed signage with compatible content.

This display has a DisplayPort and two HDMI inputs to provide a variety of connectivity options. The USB port and onboard media player allow for the playback of compatible file formats. For added convenience, the M491 includes a remote control and an HDMI cable for instant connectivity.

Key Features

  • 4K UHD (3840 x 2160) Native Resolution
  • HDR10 & HLG Compatible
  • 500 cd/m² Brightness
  • 8000:1 Typical Contrast Ratio
  • DisplayPort 1.2, 2x HDMI 2.0 In
  • USB Port for Multimedia Playback
  • Dual Built-In 10W Speakers
  • Digital Signage Capable
  • RS-232, Ethernet, Wired IR Controllable
  • Includes HDMI Cable and IR Remote

4K UHD Picture Quality

By supporting native 3840 x 2160 resolution with HDR compatibility, imagery and messaging can become more vivid and lifelike than ever before.

Full Commercial Build

The full metal chassis allows for the ruggedness needed for true commercial environments, while integrated carrying handles reduce the likelihood of damage while installation. On top of that, integrated temperature sensors and active cooling fans ensure that the display remains cool and at a constant brightness output in order to maintain professional level image output.

Cisco Compatible Partner

The M491 features full compatibility with Cisco WebEx Kit products, which are professional video conferencing tools that have everything integrated into a single soundbar, including microphone(s), camera(s), the speaker, and the Video Conferencing Codec. This, combined with the M491, provides the ultimate conferencing solution.

Professional Modularity

The M491 provides everything you need for your digital signage applications while also offering the ability to enhance your screen through multiple integrated professional technologies. The M491 accepts Intel Smart Display Modules Large or Small, allowing for sleek all-in-one intelligence and interoperability in a small form factor. This allows for the flexible implementation of Intel processor-based products directly into the NEC M491 without having to deal with the hassles of mounting external devices and running video or audio cabling. Audio, video, control, and power signals are all internal from the Intel SDM through to the display, simplifying installations and allowing for clean and easy set-up.

The M491 also expands on the success of earlier display line-ups by allowing for the optional implementation of a Raspberry Pi Compute Module 4 directly into the display. The Raspberry Pi Compute Module 4 outperforms previous versions by offering gigabit network speeds, faster CPU processing, and true 4K support. The new version also comes imaged with the new and user-friendly NEC Mediaplayer. Through an intuitive user-interface, the NEC Mediaplayer allows you to load, schedule, and edit playlists, access internal storage, access online media through an internal browser, or even image the RPi to qualified CMS partner platforms – all through the supplied NEC remote control or remotely through a web interface.

Input Detect Functionality

This feature allows you to prioritize up to three inputs so that if a primary source goes down, the display will automatically switch to whatever source you have prioritized next. The first detect option also allows for the display to automatically turn onto any source that plugs into it, allowing the display to wake on any synced signal.

NaViSet Administrator 2 Software

This software is an all-in-one remote support solution that runs from a central location and provides monitoring, asset management, and control functionality of NEC display devices and Windows computers. It is ideal for multi-device installations over arrays as it allows for task management, reporting, and on-demand control options. Control your entire NEC ecosystem through this free optional asset management software.

Additional Features

  • Portrait orientation compatible (counterclockwise rotation)
  • USB media playback
  • Optional external speakers and human sensor
  • AMX support
  • Automated email alert function
  • ARC support through HDMI
  • Crestron RoomView support via firmware update
  • Display browser control
  • Display wall calibrator compatible
  • HDR compatible (PQ, HLG, HDR10)
  • Key Guide
  • Accepts Intel SDM-S or SDM-L
  • PJ Link support
  • USB power port (5V/2A)

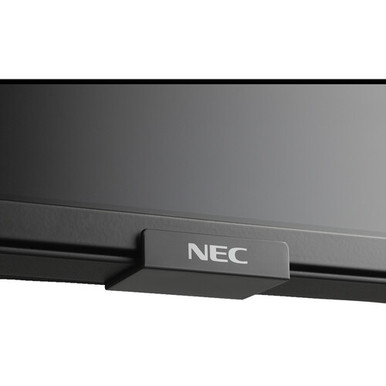

  • Removeable logo ornament
  • Real-time clock
  • Local dimming
  • TileMatrix
  • SNMP
  • Consumer Electronics Control (CEC)
  • Programmable gamma
  • Scheduler function
  • Off timer
  • Vacation switch
  • Tabletop stand available separately

NEC M491 Specs


Screen Size (Diagonal) 49"
Resolution 3840 x 2160
Panel Type IPS-Type LCD
Bit Depth / Color Support 10-Bit (1.07 Billion Colors)
Color Gamut 68% NTSC
HDR Compatibility HDR10, Hybrid Log Gamma
Brightness 500 cd/m²
Viewing Angle (H x V) 178 x 178°
Aspect Ratio 16:9
Contrast Ratio 8000:1
Backlighting Technology LED

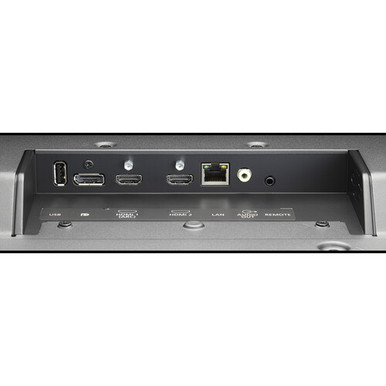

Primary Connectivity Location Display
Input Ports 2 x HDMI 2.0 – Audio, Video (Bottom)
1 x DisplayPort 1.2 – Audio, Video (Bottom)
Output Ports 1 x 1/8" / 3.5 mm – Audio (Bottom)
USB Ports 1 x USB 2.0 Type-A - Audio/Photo/Video/Power (Bottom)
Ethernet Ports Bottom: 1
Control IR via 1/8" / 3.5 mm Input
RS-232C via DE-9/DB-9

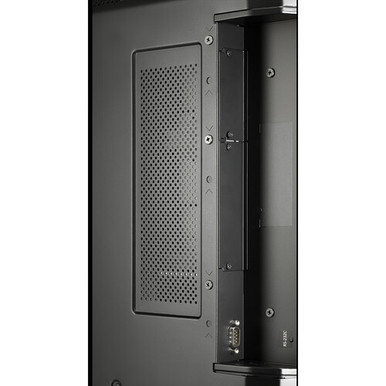

Number of OPS/Expansion Slots 1


TV Tuner No

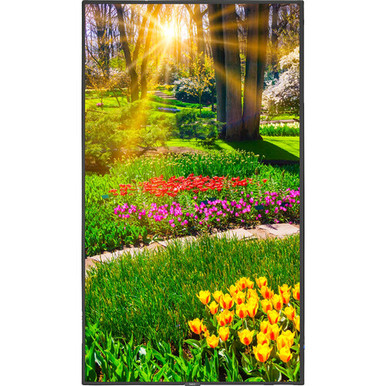

Display Orientation Landscape, Portrait
Ambient Light Sensor Yes


Haze Level 28%


Built-In Speakers Yes, 2 x 10 W
Speaker Configuration 2-Channel


Power Consumption Typical: 95.0 W
Maximum: 225.0 W
Network Standby: 2.0 W
Standby: < 0.5 W
AC Input Power 100 to 240 VAC, 50 / 60 Hz at 1.1 to 2.5 A


Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 20 to 80%
Operating Altitude 9842' / 3000 m
Certifications ENERGY STAR, as per Manufacturer


Wall Mounting 300 x 300 mm
Material of Construction Metal
IR Sensor Yes
Bezel Thickness 12.5 mm (Right/Left)
12 mm (Top)
15.6 mm (Bottom)
Dimensions 43.4 x 25.0 x 2.4" / 1103.4 x 636.2 x 61.1 mm
Weight 48.1 lb / 21.8 kg

Packaging Info

Package Weight 59 lb
Box Dimensions (LxWxH) 50.5 x 34 x 8.6"
View AllClose

Warranty Information

1 Year Parts & Labor Manufacture Warranty
