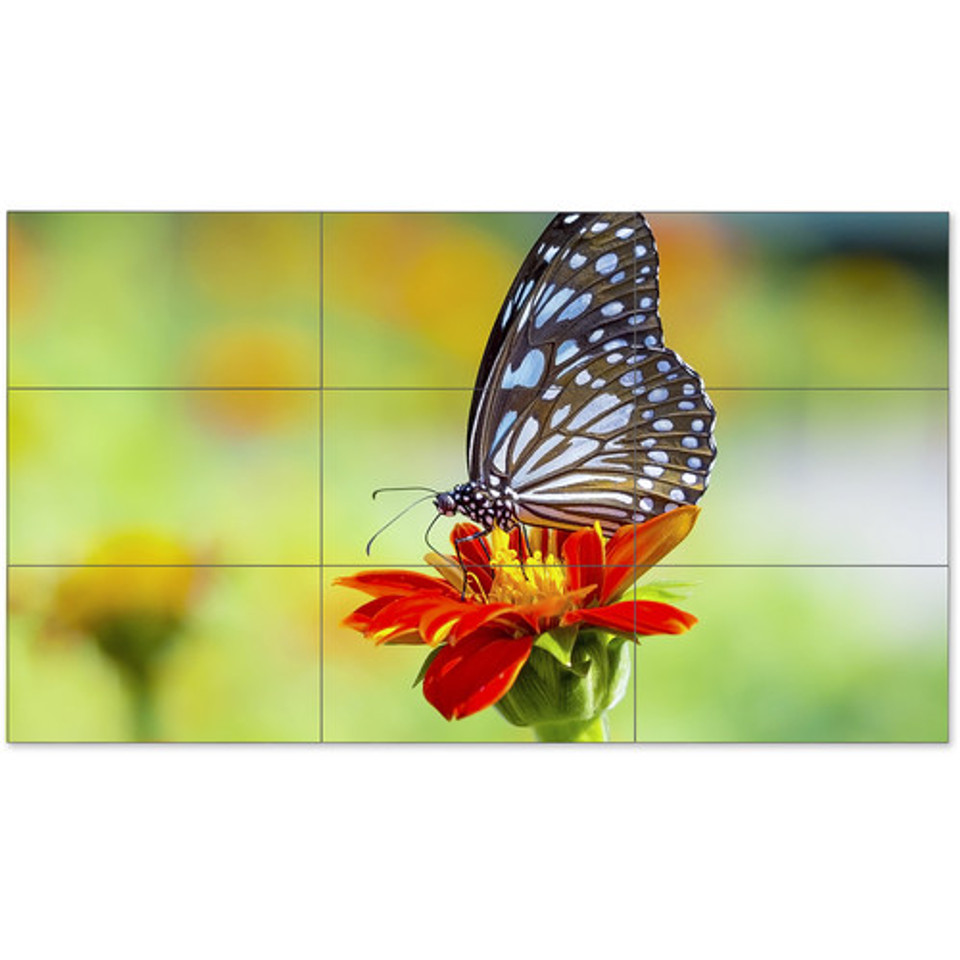

NEC UN552VS-TMX9P 55" LED Backlit Ultra Narrow Bezel 3x3 Video Wall Bundle

(No reviews yet) Write a Review
SKU:
UN552VS-TMX9P
UPC:
805736072235
MPN:
UN552VS-TMX9P
Condition:
New
Shipping:
Free Shipping
$48,009.00
Frequently bought together:

Description

NEC UN552 Overview

The 55" LED Backlit Ultra-Narrow Bezel 3x3 Video Wall Bundle from NEC delivers an all-in-one solution that is suitable for digital signage, information display and command, and control applications. The TileMatrix, TileComp, and TileCut technologies combined with the ultra-narrow bezel design and the full adjustment capabilities of the Peerless DS-VW775 mount provide for a near seamless video wall without the need for additional third-party equipment.

Key Features

  • 3x3 Video Wall Bundle
  • Full HD (1920 x 1080) Native Resolution
  • 1100:1 Typical Contrast Ratio
  • Ethernet Connectivity
  • HDMI, VGA, DisplayPort & USB Inputs
  • 500 cd/m² Maximum Brightness
  • Ultra-Narrow Bezel
  • More than 1.07 Billion Colors
  • Landscape/Portrait Orientation

3D LUT

Internal 14-bit programmable 3D lookup tables (LUTs) allow the display of 1.07 billion colors out of a palette of 4.3 trillion (with 10-bit DisplayPort input) for accurate color, smooth images, and hardware calibration.

Auto Tile Matrix

Auto Tile Matrix does auto setup of video wall via DP and LAN daisy chain.

Carbon Footprint Meter

Informs and motivates responsible use of the display by calculating and tracking the conservation of green gas emissions in real time.

LED Backlight

Provides for low power consumption and less hazardous materials.

Round-the-Clock Scheduler

Allows for advanced scheduling of monitor powering up/down, increasing panel lifetime, reducing power consumption, and saving the time and expense of finding and purchasing a third-party scheduling solution.

TileMatrix

Allows users to customize a video wall configuration using advanced On Screen Display controls.

Advanced Cooling System

Prevents the likeliness of image retention and improves color uniformity.

Built-In Expansion Slot

Allows for seamless integration of current and future NEC accessories and third-party components.

Raspberry Pi Compute Module Compatible

The Raspberry Pi Compute Module 3 NEC Edition computes power with signage displays for use in retail environments, passenger information, and quick service menu boards.

TileComp

Automatically eliminates geometrical distortions between displays by adjusting for the width of the monitor bezels, working in tandem with TileMatrix on NEC displays.

Additional Features:

  • Advanced thermal capabilities
  • Ethernet control and communication
  • RS-232 control and communication
  • Landscape/portrait capable
  • Carbon footprint meter
  • SpectraView Engine capabilities
  • Scheduler (with Real-Time Clock and Holiday mode)
  • Self-Calibration to external color sensor
  • White copy function
  • Screen saver function
  • 4K UHD daisy chain capabilities
  • Optional human sensor
  • Intelligent Wireless Data (Near Field Communications)
  • Raspberry Pi Compute Module slot
  • Expanded daisy chain (DP 1.2/HDMI 2.0)
  • 6-axis color adjustment
  • Metal rear cabinet
  • Handles
  • Variable picture modes
  • Advanced video settings (Noise Reduction, Adaptive Contrast)
  • Input labeling
  • Backlight adjust
  • Frame Comp capabilities
  • Internal Media Player via microSD or USB
  • HDR Emulation
  • Aspect ratio control
  • LED direct-lit backlighting
  • OPS/Expansion slot

NEC UN552 Specs

Display

Screen Size (Diagonal)

55"

Resolution

1920 x 1080

Panel Type

IPS-Type LCD

Brightness

500 cd/m² (Maximum)

Viewing Angle (H x V)

178 x 178°

Screen Area

47.6 x 26.8" / 120.90 x 68.07 cm

Aspect Ratio

16:9

Contrast Ratio

1100:1

Response Time

8 ms (GtG)

Refresh Rate

60 Hz

Horizontal Frequency

15.625 to 91.1 kHz (Analog)
25 to 134 kHz (Digital)

Dot Pitch

0.63 x 0.63 mm

Pixels Per Inch (ppi)

40 ppi

Backlighting Technology

Direct LED

Connectivity

Primary Connectivity Location

Display

Input Ports

1 x 15-Pin VGA Video
1 x DisplayPort 1.1 Audio, Video
1 x DisplayPort 1.2 Audio, Video
1 x HDMI 1.4 Audio, Video
1 x HDMI 2.0 Audio, Video
1 x DVI-D Video
2 x 1/8" / 3.5 mm Audio

Output Ports

1 x DisplayPort – Video
1 x HDMI – Video
1 x DVI-I – Video
1 x 1/8" / 3.5 mm – Audio
2 x Speaker Terminal – Audio

USB Ports

1 x USB 2.0 - Service
1 x USB (Version Unspecified) Type-B
2 x USB (Version Unspecified)

Ethernet Ports

2

Control

RS-232C via DE-9/DB-9
IR via 1/8" / 3.5 mm Input
IP via RJ45

Digital Media Slot

microSD (Unspecified Type)

Number of OPS/Expansion Slots

1

General

Display Orientation

Landscape, Portrait

Hardware

Slot

1 x OPS

Electrical

Power Consumption

Typical: 165.0 W
Economy Mode: < 0.5 W
Maximum: 255.0 W

AC Input Power

100 to 240 VAC, 50 / 60 Hz at 1.9 to 4.7 A

Environmental

Operating Temperature

41 to 104°F / 5 to 40°C

Storage Temperature

-4 to 140°F / -20 to 60°C

Operating Humidity

20 to 80%

Storage Humidity

10 to 90%

Operating Altitude

9843' / 3000 m

Storage Altitude

40,000' / 12,192 m

Physical

Wall Mounting

400 x 400 mm

Bezel Thickness

0.44 mm (Bottom/Right/Top/Left)

Dimensions

47.7 x 26.8 x 3.9" / 121.2 x 68.1 x 9.9 cm (without Stand)

Weight

56.9 lb / 25.81 kg (with Stand)

View AllClose

Warranty Information

1 Year Parts & Labor Manufacture Warranty
