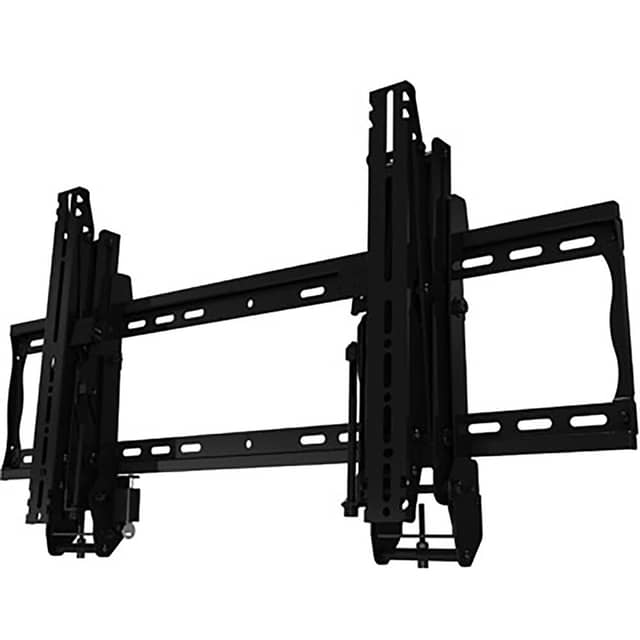

Video Wall Mount 700x400 200lb Push in Pop out Micro Adjustments

The Mustang Professional MPVW-X64U-PPV2 is a push-in/pop-out video wall display mount for 37-inch to 75-inch TVs. It carries displays weighing up to 200 lbs and supports VESA patterns up to 600x400mm. Post-installation leveling, plumb adjustment, and depth adjustment provide defined positioning control, while an 11-inch service extension creates access behind the display. High-grade cold-rolled steel construction, a scratch-resistant epoxy powder-coat finish, and a proprietary keyed-alike lock and key system complete the design.

Ideal Use Cases

This model is intended for video wall installations that require controlled display positioning and rear service access. Its supported display range covers 37-inch to 75-inch TVs, provided each display remains within the 200 lb load rating and 600x400mm maximum VESA pattern. The mount is particularly relevant when individual displays must be leveled, adjusted for plumb, or repositioned in depth after installation. Push-in/pop-out operation and the 11-inch service extension also address installations where access behind a mounted display is necessary during service.

Why Choose This Model

The MPVW-X64U-PPV2 combines a substantial load rating with several specified adjustment ranges. Post-installation leveling provides plus or minus 0.5 inch of movement, delivering 1 inch of total adjustment. Plumb micro-adjustment offers the same plus or minus 0.5-inch range. A listed 2.95-inch depth micro-adjustment adds another positioning dimension. Together, these controls support the detailed alignment work associated with a multi-display video wall while allowing adjustments to be made after the display has been installed.

Installation and Integration

Before installation, confirm that the display measures between 37 and 75 inches, weighs no more than 200 lbs, and uses a VESA pattern no larger than 600x400mm. The supplied technical data identifies a depth from the wall of 3.85 to 6.8 inches. Once the display is mounted, its position can be refined through the post-installation leveling, plumb micro-adjustment, and depth micro-adjustment provisions. For service work, the mount extends 11 inches from the wall. The proprietary keyed-alike lock and key system provides the mount's specified security function within the completed installation.

Performance Highlights

• Supports 37-inch to 75-inch TVs weighing up to 200 lbs.
• Accommodates VESA mounting patterns up to 600x400mm.
• Provides plus or minus 0.5 inch of post-installation leveling, or 1 inch total.
• Provides plus or minus 0.5 inch of plumb micro-adjustment, or 1 inch total.
• Includes 2.95 inches of specified depth micro-adjustment.
• Positions the display 3.85 to 6.8 inches from the wall.
• Extends 11 inches from the wall during service.
• Uses high-grade cold-rolled steel with a scratch-resistant epoxy powder-coat finish.

What Makes It Different

The defining characteristic of this model is the concentration of access, alignment, and security functions in one video wall mount. Push-in/pop-out operation supports service positioning, while separate leveling, plumb, and depth adjustments address three distinct aspects of display placement. The keyed-alike security system uses a proprietary lock and key design. Its cold-rolled steel construction and epoxy powder-coated finish provide the stated structural material and surface protection for the mount.

Final Assessment

The Mustang Professional MPVW-X64U-PPV2 is a focused choice for compatible video wall displays that need a 200 lb load rating, 600x400mm VESA support, post-installation micro-adjustments, and defined service access. Its 11-inch extension, adjustable 3.85- to 6.8-inch wall depth, steel construction, scratch-resistant finish, and keyed security system provide concrete reasons to select it. Confirm display dimensions, weight, and mounting pattern against the listed limits before installation.
