FLAT PANEL PULLOUT SWIVEL MNT BLK

The Peerless-AV FPS-1000 combines the compact profile of a wall mount with the movement of a pivot arm for flat-panel display installations. Built for 32-inch to 80-inch displays and rated for a maximum load of 150 lb, it provides pull-out adjustment and side-to-side swivel in a black, fused-epoxy-finished assembly. Its design emphasizes display access, positioning flexibility, and security for indoor installations.

Ideal Use Cases

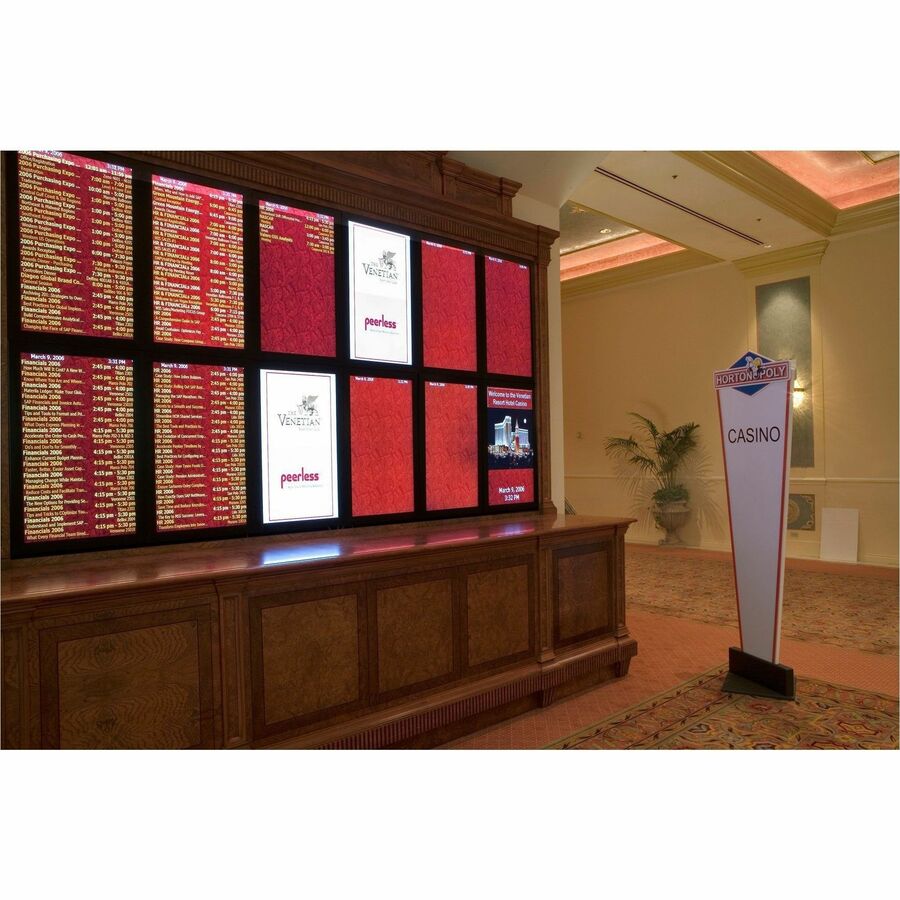

This model is intended for on-wall, low-profile installations, including single-panel setups, multi-panel video walls, and recessed hospitality applications. It supports flat-panel displays, TVs, and video-wall use. The adjustable depth is useful where a screen needs to sit close to the wall during normal operation but move outward when access to the rear is required for maintenance. Four inches (101.6 mm) of horizontal on-wall shift also gives installers room to refine display placement. The mount is specified for indoor use and wall mounting, with stud applications identified in the source specifications.

Why Choose This Model

The FPS-1000 addresses the practical tradeoff between a fixed low-profile mount and an articulated pivot arm. Its adjustable depth runs from 2.16 inches to 10.53 inches. The swivel range extends from -45 degrees to 45 degrees, allowing viewing-angle adjustment toward either side. A LockKey safety feature, locking swivel tab, and listed tamper-, theft-, and scratch-resistant durability add protection to the installed mount. The 150 lb load rating accommodates compatible displays within the stated 32-inch to 80-inch screen range.

Installation and Integration

The mount is VESA compatible and comes with display attachment fasteners for VESA 100 x 100 mm and 200 x 100 mm mounting patterns. It is also compatible with Peerless-AV PLP adaptor technology for broader flat-panel compatibility; no PLP adaptor is identified in the listed package contents. The supplied cable management sleeve helps organize cabling as the display moves between its low-profile and pulled-out positions. Installation materials also include the LockKey installation tool, locking swivel tab, and fastener packet. Assembly is required. The mount measures 21 inches wide, 9.64 inches high, and 10.53 inches deep, with an approximate weight of 17.60 lb. Confirm that the selected display falls within the stated size, weight, and mounting-pattern limits before installation.

Performance Highlights

Depth adjustment from 2.16 to 10.53 inches makes the rear of the display accessible while preserving a low-profile mounting option. The -45-degree to 45-degree swivel range supports lateral screen orientation, while 4 inches of horizontal wall shift assists with alignment. The fused epoxy finish is paired with stated scratch resistance. For service work, the pull-out architecture provides access to the back of the display, directly addressing an important requirement in recessed and multi-panel arrangements.

What Makes It Different

Unlike a basic fixed wall mount, the FPS-1000 integrates pull-out movement and swivel capability into a low-profile format. That combination is useful when a display needs to remain close to the wall while still offering rear access and viewing-angle adjustment. Installation-focused features distinguish it further: horizontal on-wall shift, cable management, VESA attachment hardware, and the LockKey system are all part of the documented configuration or package. The unit is UL listed, TAA compliant, and identified as meeting RoHS, TAA, VESA, and UL standards. It is manufactured in the United States and carries a five-year limited warranty.

Final Assessment

For indoor hospitality, recessed-display, and video-wall projects that need more access than a fixed mount provides, the FPS-1000 offers clearly defined installation capabilities: support for 32-inch to 80-inch displays, a 150 lb capacity, 2.16-inch to 10.53-inch adjustable depth, -45-degree to 45-degree swivel, and 4 inches of horizontal shift. Its included safety, locking, cable-management, and VESA attachment components provide a documented installation package for compatible displays, while PLP adaptor compatibility offers an additional option for other flat-panel mounting requirements.
