14" x 9" In-Wall Box for Recessed Power and AV Components

Ideal Use Cases

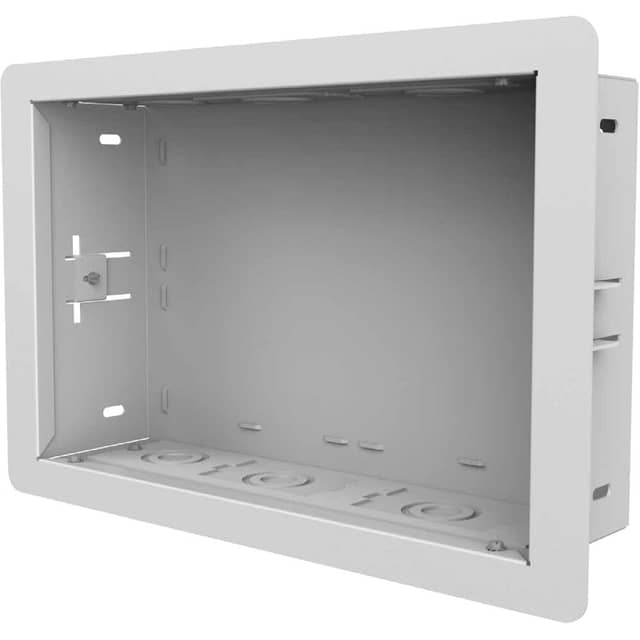

The Peerless-AV IB14X9-W is a recessed wall-mount box designed to place A/V and power equipment within a wall. Its 14 x 9-inch format and 25 lb maximum load capacity provide a defined location for components and wiring in residential, commercial, or other A/V installations. Listed applications include in-wall, drywall, and stud construction.

The removable trim ring permits installation either before or after drywall is installed. This makes the box suitable for projects at different stages of construction. Its recessed profile keeps supported equipment within the wall, while the white color and scratch-resistant finish provide a clean, durable exterior.

Why Choose This Model

Installation flexibility is the central advantage of the IB14X9-W. It can be secured using two studs, a single stud, or drywall only, allowing the mounting method to match the available wall structure. Two removable mounting plates let installers complete wiring terminations outside the box, reducing installation time and providing easier access during termination work.

The removable trim ring adds flexibility to installation scheduling because the enclosure does not have to be installed exclusively before drywall. A fused epoxy powder-coated finish provides documented scratch resistance, and the product is covered by a five-year limited warranty.

Installation and Integration

The enclosure measures 15.75 inches wide, 10.56 inches high, and 3.90 inches deep. Its required cutout measures 14.4 x 9.4 inches, or 365 x 238 mm. These dimensions should be considered when planning wall placement and clearance for the recessed installation. The box weighs approximately 5.50 lb before supported equipment is added.

Assembly is required. The package contains one 14 x 9-inch in-wall box, a trim ring, two drywall clamps, two mounting plates, and wood-stud mounting hardware. The supplied components support the documented drywall and stud mounting configurations. For component integration, the box is compatible with a RACO 420 gang box or an equivalent model.

The product title references an optional surge protector, but a surge protector is not identified in the supplied package contents. The included configuration should therefore be understood as the mounting box and listed installation hardware. Wiring can be terminated on the removable plates outside the enclosure before the plates are installed in the box.

Performance Highlights

The IB14X9-W supports A/V equipment and power equipment with a combined maximum load capacity of 25 lb. Its recessed wall-mount profile is intended for installations where components need to be integrated into the wall rather than surface mounted. The white enclosure has a fused epoxy powder-coated finish and is identified as scratch resistant.

Listed certifications and standards include RoHS, TAA, and UL. The product is identified as TAA compliant, while its environmental compliance references the Restriction of Hazardous Substances directive. The stated country of origin is Taiwan.

What Makes It Different

This model combines three useful installation features in one enclosure: a removable trim ring, removable wiring plates, and multiple wall-attachment options. The trim ring allows work before or after drywall installation. The mounting plates move wiring termination work outside the box. Support for two-stud, single-stud, and drywall-only mounting provides alternatives for different wall conditions.

The included drywall clamps and wood-stud mounting hardware correspond to those installation options, while compatibility with a RACO 420 gang box or equivalent supports power-box integration. Together, these features focus the design on practical installation access and adaptability without changing the box’s recessed 14 x 9-inch format.

Final Assessment

The Peerless-AV IB14X9-W is a flexible recessed mounting box for A/V and power components weighing up to 25 lb. Its removable trim ring and mounting plates address two common installation considerations: drywall timing and access to wiring terminations. Multiple attachment methods accommodate two studs, one stud, or drywall-only placement.

For project planning, the principal requirements are the 14.4 x 9.4-inch cutout, 15.75 x 10.56 x 3.90-inch overall dimensions, 25 lb load limit, and RACO 420 gang-box compatibility. With installation hardware, a scratch-resistant finish, and a five-year limited warranty, the IB14X9-W provides a documented in-wall integration solution in a single-unit package.
