Articulating Mount w/In-Wall Box for 37" to 65" Ultra Thin Displays

Ideal Use Cases

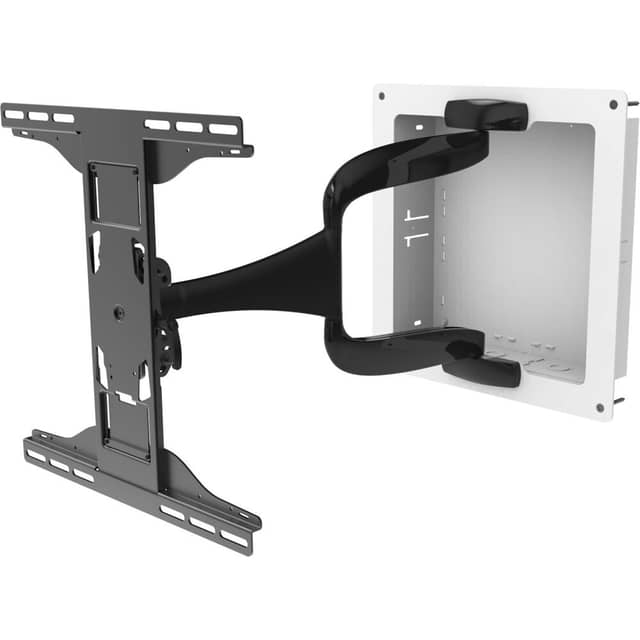

The Peerless-AV DesignerSeries IM747PU is designed for recessed, low-profile installations involving one 37- to 65-inch ultra-thin display. It is suited to rooms where power connections and AV electronics need to remain accessible without being left exposed around the display. The integrated in-wall box provides component space, while the articulating arm allows the display to move away from the wall for service or connection changes. Landscape and portrait orientation support makes the mount applicable to a range of display layouts.

Why Choose This Model

The IM747PU combines an articulating display mount and an in-wall enclosure in one installation. It supports displays weighing from 25 to 80 lb and is VESA mount compatible, with listed mounting patterns ranging from 200 x 100 to 400 x 400. Adjustable depth extends from 1.94 to 25.03 inches, allowing the display to sit close to the wall when retracted while preserving access behind it when extended. The mount is also ADA compliant when used with displays that are 2 inches thick or less.

Installation and Integration

The in-wall box is intended to provide access to power and ample room for AV electronics within the recessed installation. The articulating mount swings away from the wall so installers or service personnel can reach both the rear of the display and components placed inside the enclosure. Compatibility with a RACO 420 gang box supports electrical integration. Conduit knockouts are provided for 3/4-inch, 1-inch, 1.25-inch, and 1.5-inch conduit, while the specified wall cutout measures 14.4 x 14.4 inches, or 365 x 365 mm.

Assembly is required. Supplied installation components include the in-wall box, trim ring, two mounting plates, wood-stud mounting hardware, and four white screw caps. The complete mount measures 17.75 inches high by 20.75 inches wide, with a listed depth of 25.03 inches, and weighs approximately 36.50 lb.

Performance Highlights

Articulation supports practical positioning and maintenance access after installation. The listed tilt range is 5 to 15 degrees, and the mount provides 90-degree swivel capability. Its supported load range of 25 to 80 lb accommodates compatible displays within the specified 37- to 65-inch size range. A scratch-resistant construction and high-gloss fused epoxy finish are specified for durability. The product uses a wall-mountable form factor and is identified as a low-profile in-wall mount.

What Makes It Different

The defining feature of the IM747PU is the combination of recessed component storage and an articulating arm. Power access, AV electronics, display support, and rear service access are addressed within the same mounting assembly. When the display needs attention, the arm swings outward rather than requiring the recessed components to become inaccessible. The included trim ring and screw caps help complete the in-wall installation, while dual-color black and white elements support the supplied mounting and finishing components.

The mount is TAA compliant and carries RoHS and UL certifications or standards as listed by the manufacturer. Environmental compliance with the Restriction of Hazardous Substances directive is also specified.

Final Assessment

The Peerless-AV IM747PU is a purpose-built option for installations that require an ultra-thin display to remain close to the wall while retaining access to connections and enclosed AV equipment. Its 37- to 65-inch screen range, 25- to 80-lb capacity, articulating extension, tilt and swivel adjustment, integrated in-wall box, and included mounting hardware create a clearly defined solution for recessed display installations. A five-year limited warranty completes the package.
