Video Wall Mount Portrait 400x600 200Lbs Max Weight Push in Pop out

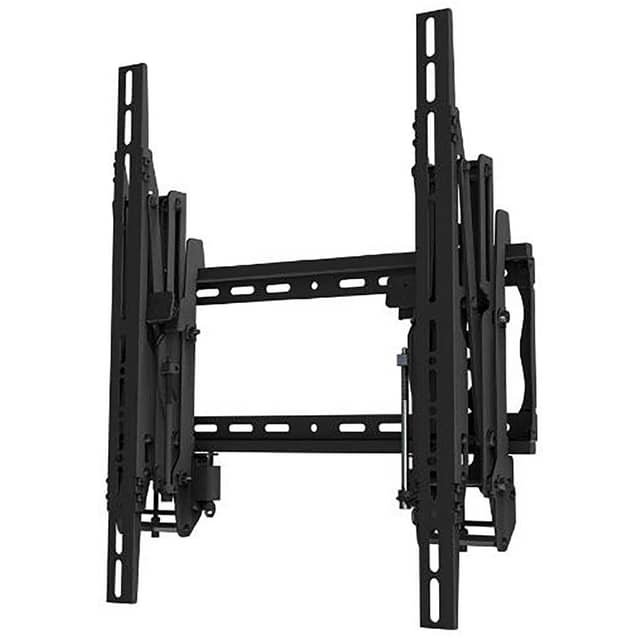

The Mustang Professional MPVWP-L46U-PPV3 is a video wall mounting solution described for portrait applications and built around push-in, pop-out technology. It supports recommended display sizes from 37 to 75 inches and accommodates VESA mounting patterns from 200 x 200 through 400 x 600 mm. Six points of adjustment support post-installation alignment, while an 11-inch service extension brings the display forward for access. The mount is constructed from high-grade cold-rolled steel and finished in black with a scratch-resistant epoxy powder coat.

Ideal Use Cases

This model is suited to video wall layouts that require close display alignment and forward access for service. Its supported display range makes it applicable to installations using screens from 37 to 75 inches, provided the display also meets the verified mounting-pattern and load requirements. Push-in, pop-out operation is particularly useful when access behind a mounted display is needed. The proprietary keyed-alike lock and key system adds a defined security mechanism for the mounting assembly. The product name and supplied description identify this as a portrait video wall mount; however, the technical specification table lists the orientation as landscape, so orientation compatibility should be confirmed before installation.

Why Choose This Model

The MPVWP-L46U-PPV3 combines service access with detailed positioning controls. Post-installation leveling provides plus or minus 0.5 inch of travel, or 1 inch total. Plumb micro-adjustment offers the same plus or minus 0.5-inch range. Depth micro-adjustment is specified as 2.95 inches total depth. Together with the stated six points of adjustment, these controls allow installers to refine display position after the mount has been placed. The mount also supports VESA patterns ranging from 200 x 200 to 400 x 600 mm, while the maximum mounting pattern is listed as 402 x 783 mm. Its steel construction and scratch-resistant finish provide a durable physical platform without introducing unnecessary visual contrast around a black display installation.

Installation and Integration

Before installation, compare the display’s mounting interface with both the supported VESA range and the listed maximum mounting pattern. The installed depth ranges from a minimum of 3.85 inches, or 98 mm, to a maximum of 6.80 inches, or 173 mm. During service, the assembly extends 11 inches from the wall. These dimensions should be considered when planning wall clearance and access around adjacent displays. Two source-data conflicts require verification: the supplied product title states a 200 lb maximum weight, while the detailed technical specifications list a 150 lb weight capacity; the product is also described as a portrait model while the technical table states landscape orientation. Use the more conservative 150 lb figure until the manufacturer or an authorized source confirms the correct rating, and verify the intended orientation before mounting a display.

Performance Highlights

The principal performance features are its push-in, pop-out service mechanism and its adjustment system. The mount can move forward 11 inches during service, while its installed wall depth remains between 3.85 and 6.80 inches. Post-installation leveling and plumb adjustment each provide 1 inch of total movement. The separate depth specification adds another stated adjustment dimension for arranging displays in a video wall. These controls directly address alignment and service access, the two functions emphasized in the supplied product description. A proprietary keyed-alike lock and key system provides the listed security feature once the mount is integrated.

What Makes It Different

The defining combination is forward service access, six-point alignment, and compatibility with a range of mounting patterns. Rather than relying solely on the initial wall position, the mount provides post-installation leveling, plumb micro-adjustment, and depth-related adjustment. The push-in, pop-out design gives the display a direct service position, and the 11-inch extension quantifies the available forward access. High-grade cold-rolled steel forms the mount structure, while the scratch-resistant epoxy powder coat supplies the black finished surface. The keyed-alike locking system is another model-specific detail included in the technical data.

Final Assessment

The MPVWP-L46U-PPV3 brings together broad 37- to 75-inch display guidance, VESA support from 200 x 200 through 400 x 600 mm, detailed alignment controls, and an 11-inch service extension. It is a practical option when push-in, pop-out access and post-installation positioning are core requirements. Final selection should depend on matching the display to the mounting pattern, installed-depth range, confirmed orientation, and verified load capacity. Because the supplied title and technical table disagree on both capacity and orientation, those two points should be resolved before the mount is specified or installed.
