Art Mount Outdoor 700x500 130Lbs Max Weight Dual security locks

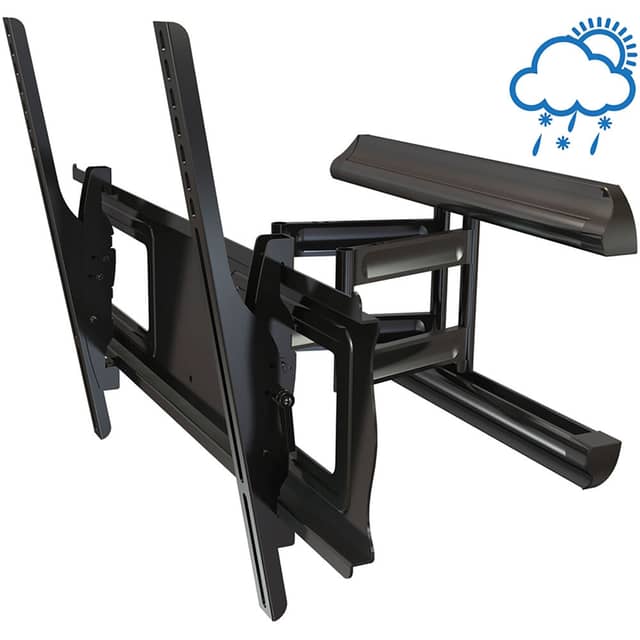

The Mustang Pro MPAO-X75ULL is an outdoor articulating mount built for displays weighing up to 130 lb (59 kg). Its aluminum and high-grade cold-rolled steel construction supports demanding display installations while allowing controlled adjustment of viewing position. A Dacromet® coating, scratch-resistant epoxy powder-coat finish, black color, and dual security locks complete its outdoor-focused design.

Ideal Use Cases

This mount is suited to outdoor display installations that require both substantial weight capacity and flexible positioning. The specified 30–70-inch display range accommodates a broad selection of screens, while the 723 x 501 mm maximum mounting pattern provides a clear compatibility threshold. Its articulating movement is useful where a display must extend away from the wall, pivot toward a viewing area, tilt vertically, or receive minor side-to-side leveling adjustments. Dual security locks also make it appropriate for installations where securing the mounted display is a priority.

Why Choose This Model

The MPAO-X75ULL combines a 130 lb capacity with a practical range of motion. It extends to a maximum of 15.5 inches (394 mm), giving the display room to pivot and change its viewing orientation. When a lower-profile position is preferred, the mount sits 3.8 inches (96.2 mm) from the wall. This combination allows the same installation to alternate between a compact resting position and an extended viewing position.

Construction consists of aluminum and high-grade cold-rolled steel. The exterior uses a scratch-resistant epoxy powder coat, and the mount is coated with a Dacromet finish. These specified materials and finishes distinguish the model as an outdoor articulating solution rather than a basic fixed display bracket.

Installation and Integration

Compatibility begins with three specifications: display size, display weight, and mounting pattern. The display should fall within the listed 30–70-inch range, weigh no more than 130 lb (59 kg), and use a mounting pattern within the 723 x 501 mm maximum. The mount itself weighs 21.8 lb (9.9 kg), a figure that can be included when planning the complete installed load.

The 3.8-inch depth from the wall defines the mount’s compact position, while the 15.5-inch maximum extension determines the available reach. These measurements help establish the space needed for articulation before installation. The black finish provides a consistent appearance behind the display, and the integrated dual security locks address display retention within the mounting assembly.

Performance Highlights

The mount provides 41 degrees of pivot for horizontal viewing adjustment. Vertical positioning is supported by +15-degree/-15-degree tilt, allowing the screen to angle upward or downward through a balanced adjustment range. A further 3 degrees of side-to-side roll supports fine alignment after the display is mounted. Together, these adjustments allow the screen position to be refined across several axes without changing the wall location.

With a maximum extension of 15.5 inches, the articulating assembly provides meaningful reach while returning to a 3.8-inch wall depth. The 130 lb maximum capacity supports heavier displays within the stated size and mounting-pattern limits.

What Makes It Different

The MPAO-X75ULL brings together outdoor designation, articulating movement, a Dacromet coating, and dual security locks in one mount. Its movement specifications are clearly defined: 41-degree pivot, 3-degree roll, and +15-degree/-15-degree tilt. The 723 x 501 mm maximum mounting pattern extends compatibility beyond a simple 700 x 500 mm class, while the aluminum and high-grade cold-rolled steel construction supports the stated 130 lb load capacity. A scratch-resistant epoxy powder coat adds the specified exterior finish.

Final Assessment

For outdoor display projects requiring flexibility, security, and a high weight capacity, the Mustang Pro MPAO-X75ULL offers a focused set of mounting capabilities. It supports 30–70-inch displays up to 130 lb, extends from 3.8 to 15.5 inches, and provides pivot, roll, and bidirectional tilt adjustment. Its Dacromet coating, dual security locks, black powder-coated finish, and limited lifetime warranty round out a purpose-built articulating mount.
