Articulating Mount 800x600 200 Lbs Max Weight Dual stud

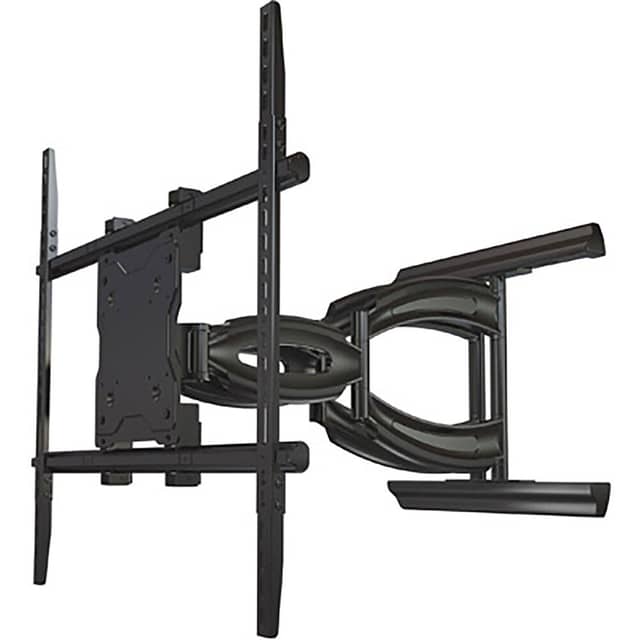

The Mustang Professional MPA-X86U is a heavy-duty articulating display mount for 37- to 80-inch TVs. It supports displays weighing up to 200 lbs and accommodates VESA mounting patterns up to 800 x 672 mm. Fabricated from high-grade cold rolled steel and aluminum, the mount features a durable epoxy powder coat finish, adjustment options for precise display positioning, a balanced lockable tilt mechanism, integrated cord management, and covers for a finished appearance.

Ideal Use Cases

The MPA-X86U is suited to installations that combine a large display, substantial load requirements, and the need for adjustable placement. Its 37- to 80-inch display range and 200 lb load rating make it appropriate for compatible TVs across a broad size range. Side adjustment supports precise placement and centering, while its corner-mounting capability addresses layouts where a display cannot be positioned flat at the center of a wall.

The mount can be installed on double wood stud structures, structural concrete, and cinder block surfaces. Metal stud installations are also supported when Mustang HT toggle bolt hardware is used.

Why Choose This Model

This model combines high-capacity display support with practical post-installation control. Its maximum 800 x 672 mm VESA pattern accommodates compatible displays with wide mounting-hole spacing, while the 200 lb load rating supports heavier television installations. Vertical adjustment, screen leveling, and side adjustment help installers refine display placement after the wall plate and display have been mounted.

The MPA-X86U is UL Listed and constructed from high-grade cold rolled steel and aluminum. A durable epoxy powder coat finish protects the fabricated structure, while covers and cord management help organize the completed installation.

Installation and Integration

The MPA-X86U arrives pre-assembled to support a quick and efficient installation process. A wall template is included to assist with positioning, and the supplied hardware is organized in a pre-sorted pack for easier fastener selection. The package includes a complete array of high-grade fasteners.

For installation, the mount is compatible with double wood stud structures, structural concrete, and cinder block surfaces. Metal stud mounting requires Mustang HT toggle bolt hardware. After installation, simplified vertical adjustment and screen leveling allow the display position to be corrected without removing the entire mount. Side adjustment can be performed before or after installation, supporting accurate centering, precise placement, and corner mounting.

Performance Highlights

• Supports 37- to 80-inch TVs.
• Provides a 200 lb maximum load rating.
• Accepts VESA mounting patterns up to 800 x 672 mm.
• Offers simplified post-installation vertical adjustment and screen leveling.
• Provides side adjustment before or after installation.
• Supports precise placement, centering, and corner-mounting configurations.
• Uses a balanced, smooth, lockable tilt feature that eliminates typical friction adjustment.
• Includes covers and cord management within its heavy-duty design.

What Makes It Different

The balanced smooth-tilt mechanism distinguishes the MPA-X86U from mounts that rely on typical friction adjustment. The tilt can be locked, providing controlled display positioning through a simplified mechanism. Its side-adjustment capability is also available both before and after installation, giving installers flexibility when aligning the display with the wall, surrounding equipment, or a corner location.

Construction is another defining element. The combination of high-grade cold rolled steel and aluminum provides the foundation for its 200 lb load rating, while the epoxy powder coat supplies a durable finish. Pre-assembly, the included wall template, and the organized hardware pack address installation efficiency as well as structural performance.

Final Assessment

The Mustang Professional MPA-X86U is a capable choice for mounting compatible 37- to 80-inch TVs weighing up to 200 lbs. Its 800 x 672 mm maximum VESA pattern, double-stud and masonry installation options, post-installation leveling, side adjustment, and lockable balanced tilt provide a focused set of tools for accurate display placement. UL listing, durable metal construction, included installation aids, covers, and cord management complete a mount designed for heavy-duty, adjustable display installations.
