Articulating Mount 600x400 80Lbs Max Weight Dual 16/20 center stud

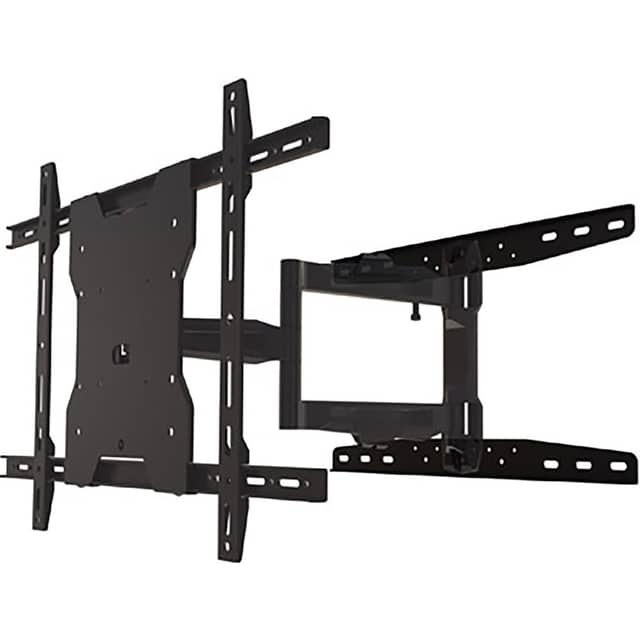

The Mustang Professional MPAUW-L64U is an articulating display mount for 30–65-inch TVs. It supports displays weighing up to 80 lbs and accommodates VESA mounting patterns up to 600x400mm. Its aluminum and cold-rolled steel construction is protected by a durable epoxy powder-coat finish.

Ideal Use Cases

This model is intended for wall-mounted televisions between 30 and 65 inches when an articulating design and adjustable tilt are required. Its 80 lb load rating and 600x400mm maximum VESA pattern make it suitable for compatible displays across a broad size range. The mount can be installed on a single wood stud or masonry surface. Metal-stud installation is also supported when the required MPHT-3 toggle bolt pack is used.

Why Choose This Model

The MPAUW-L64U combines defined display compatibility with a pre-tensioned tilt mechanism. It provides up to +15 degrees of tilt without requiring continuous adjustment of a tension knob or screw. This design allows the tilt mechanism to function smoothly while reducing the need for repeated tension changes. The mount is fabricated from high-grade aluminum and cold-rolled steel, giving installers a clearly specified material platform rather than an unspecified metal construction.

Installation and Integration

Installation options include a single wood stud, masonry surfaces, and metal studs. The supplied product title also identifies a dual 16/20 center-stud configuration. For metal-stud applications, the MPHT-3 toggle bolt pack is required and is not identified as part of the included hardware. Installers should confirm the wall structure, display weight, and VESA pattern before mounting. The television must fall within the listed 30–65-inch range, weigh no more than 80 lbs, and use a VESA pattern no larger than 600x400mm.

A complete array of high-grade fasteners is supplied in a pre-sorted hardware pack. The organized pack is designed to make the appropriate fasteners easier to identify during installation. Surface-specific requirements still apply, particularly the separate MPHT-3 toggle bolt pack required for metal studs.

Performance Highlights

The mount’s key adjustment feature is its pre-tensioned, smooth-functioning tilt mechanism. It permits up to +15 degrees of adjustment without forcing the user to repeatedly change a tension control. Its articulating format provides the product’s core positioning design, while the available source data does not specify an extension distance or swivel range. The 80 lb load rating and 600x400mm maximum VESA pattern establish the primary limits for selecting a compatible television.

What Makes It Different

The MPAUW-L64U pairs its articulating mount format with a pre-tensioned tilt system and multiple supported installation surfaces. Its structure uses both high-grade aluminum and cold-rolled steel instead of relying on a single unspecified material. A durable epoxy powder-coat finish protects the fabricated components. Installation hardware is presented in a pre-sorted pack, helping distinguish the included fasteners during setup. Compatibility is also clearly bounded by the stated 30–65-inch display range, 80 lb maximum load, and 600x400mm maximum VESA pattern.

The metal-stud option is specifically qualified: it requires the MPHT-3 toggle bolt pack. This distinction is important when planning an installation because the included high-grade fastener assortment does not remove the stated requirement for that separate toggle-bolt pack.

Final Assessment

The Mustang Professional MPAUW-L64U is a practical choice for a compatible 30–65-inch television that weighs 80 lbs or less and uses a VESA pattern no larger than 600x400mm. Its +15-degree pre-tensioned tilt, articulating design, aluminum and cold-rolled steel construction, epoxy powder-coat finish, and pre-sorted fastener pack provide a focused set of mounting features. Before installation, verify the wall surface and obtain the MPHT-3 toggle bolt pack if the mount will be attached to metal studs.
