Articulating Mount 400x400 150 Lbs Max Weight Dual stud

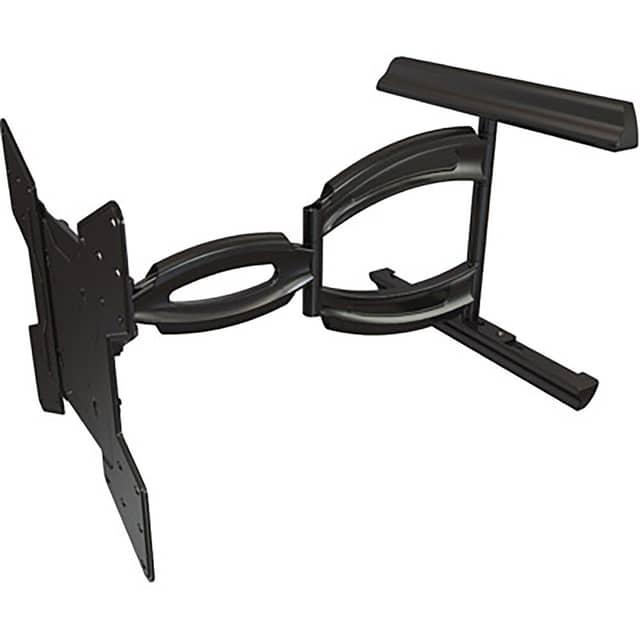

The Mustang Professional MPA-L44V is an articulating display mount built for 32-inch to 55-inch TVs weighing up to 150 lbs. Its maximum VESA pattern is 400x400mm, and its dual-stud design supports installation across several common structural surfaces. Fabricated from high-grade cold rolled steel and aluminum, the mount combines positioning flexibility with a durable epoxy powder coat finish, integrated covers, and cord management.

Ideal Use Cases

This model is suited to installations where the screen needs more positioning flexibility than a fixed mount provides. Side adjustment can support precise placement, centering, and corner mounting, both before and after installation. It is also useful when final display alignment cannot be completed until the TV is attached, because the mount provides post-installation vertical adjustment and screen leveling. Compatibility covers 32-inch through 55-inch TVs within the 150 lb load rating and 400x400mm maximum VESA pattern.

Why Choose This Model

The MPA-L44V brings its key installation and adjustment features into one heavy-duty design. The unit arrives pre-assembled and includes a wall template, reducing the number of preparation steps before mounting. A complete array of high-grade fasteners is supplied in a pre-sorted hardware pack for easier selection. Once installed, the display can be vertically adjusted, leveled, shifted sideways, and tilted. Covers and cord management help organize the finished installation, and the mount is UL Listed.

Installation and Integration

The mount is designed for double wood stud structures, structural concrete, and cinder block surfaces. Metal stud installations require Mustang HT toggle bolt hardware. Before installation, confirm that the TV falls within the stated 32-inch to 55-inch display range, does not exceed 150 lbs, and uses a VESA pattern no larger than 400x400mm. The included wall template supports layout and placement, while the pre-assembled design supports quick and efficient installation. The pre-sorted fastener pack makes the appropriate supplied hardware easier to identify.

Adjustment remains available after the display is mounted. Vertical correction and screen leveling can refine alignment, and side adjustment can be used either before or after installation. That side-to-side capability supports centering, precise placement, and corner-mounting configurations. Integrated cord management provides a defined way to organize display cabling within the mount’s finished presentation.

Performance Highlights

• Display compatibility: Designed for 32-inch to 55-inch TVs.
• Load capacity: Rated for displays weighing up to 150 lbs.
• VESA support: Accommodates patterns up to 400x400mm.
• Positioning: Offers vertical adjustment, screen leveling, and side adjustment before or after installation.
• Tilt operation: Uses a balanced smooth-tilt feature that eliminates typical friction adjustment and can be locked in position.
• Materials and finish: Fabricated from high-grade cold rolled steel and aluminum with a durable epoxy powder coat finish.

What Makes It Different

The defining feature is the combination of articulation and installer-focused fine adjustment. Rather than ending alignment when the wall plate is secured, the MPA-L44V allows vertical adjustment, leveling, and side adjustment after installation. This can be especially useful when centering a TV or refining a corner placement. Its balanced smooth-tilt system removes the typical need for friction adjustment while retaining a lockable tilt function. The package also connects heavy-duty construction with practical finishing details: an epoxy powder coat finish, covers, cord management, a wall template, and organized mounting hardware.

Final Assessment

For a 32-inch to 55-inch TV that weighs no more than 150 lbs and uses a VESA pattern up to 400x400mm, the MPA-L44V offers a clearly specified mounting solution for double wood studs, structural concrete, or cinder block. Its pre-assembled design and supplied installation materials support efficient setup, while post-installation alignment, side adjustment, balanced lockable tilt, and cord management provide the flexibility needed to complete a precise, organized display installation.
