Product Overview

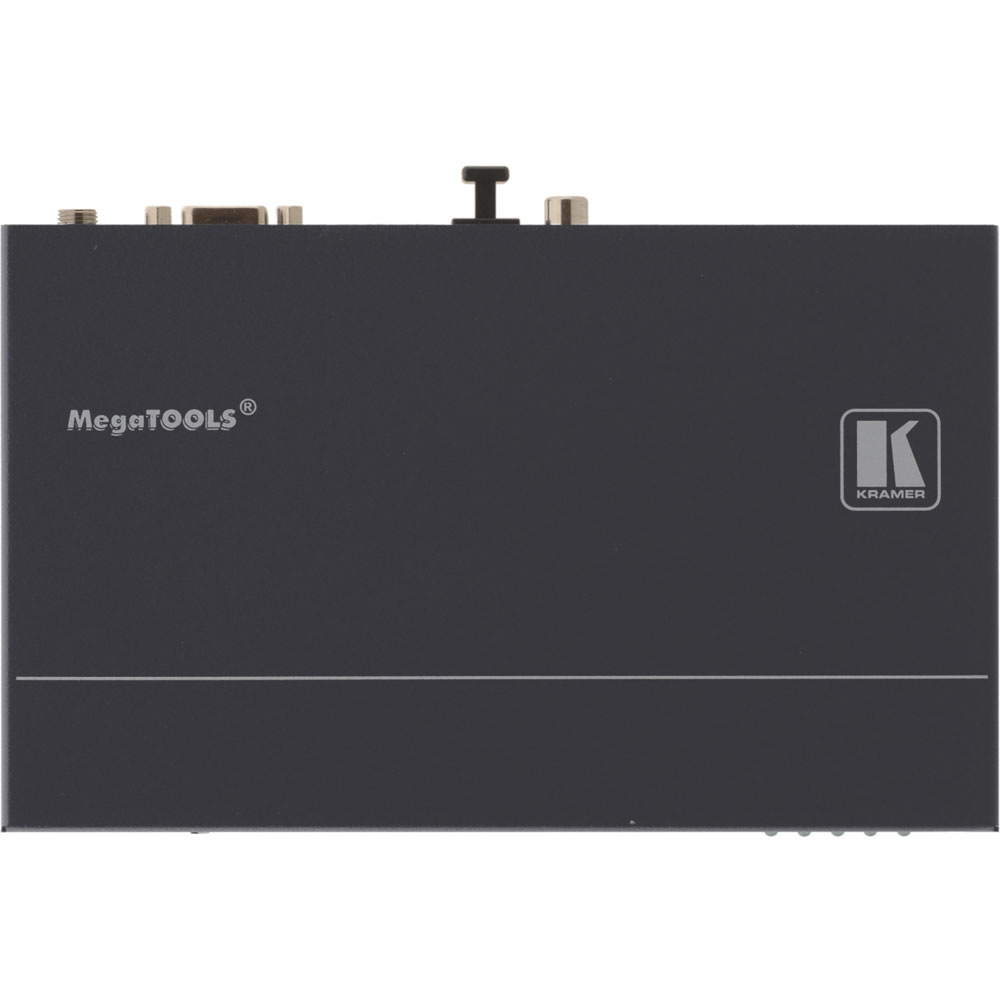

The Kramer TP-582R is an extended-reach HDBaseT receiver that delivers two mirrored HDMI outputs at up to 1080p60, 36bpp over CAT copper cable. It carries Ethernet, bi-directional RS-232 and IR, reaches up to 130m (430ft), supports 6.
Shipping charges and warranty coverage vary by product and order. Review the applicable terms before purchase.
Available to order; contact us to confirm lead time
Rates and available methods are shown at checkout
Key Features
The Kramer TP-582R is a high-performance, extended-reach HDBaseT receiver designed to convert a transmitted HDBaseT signal into two mirrored HDMI outputs while also carrying Ethernet, RS-232 and IR signals over twisted-pair cabling. It supports video resolutions up to 1080p at 60Hz with 36bpp color and provides digital audio de-embedding through S/PDIF and TOSLINK outputs.
The TP-582R is suited to installations that need the same HDMI content displayed at two endpoints from a single HDBaseT transmission. Its combination of video, Ethernet and control-signal reception makes it useful where displays are separated from the source equipment by a substantial cable distance. It is also appropriate when an installation requires RS-232 or IR control alongside the audiovisual signal rather than as a separate transmission path.
Audio de-embedding expands its usefulness in systems where the HDMI program audio must also be routed to equipment supporting S/PDIF or TOSLINK digital audio. Because both HDMI outputs are mirrored, the receiver is intended for applications that show identical content on both connected displays.
This receiver combines extended signal reach with two mirrored HDMI outputs and integrated transport for Ethernet, bi-directional RS-232 and IR. The design consolidates video, network and control signals over a twisted-pair connection, providing a practical receiver endpoint for an HDBaseT installation.
The TP-582R supports transmission distances up to 130m (430ft) over CAT copper cable at video resolutions up to 1080p at 60Hz and 36bpp. Its specified 6.75Gbps bandwidth supports the stated Full HD video performance, while separate S/PDIF and TOSLINK outputs provide two available paths for extracted digital audio.
The TP-582R receives an HDBaseT signal over twisted-pair cabling and converts it to its available output signals. Installation requires a compatible HDBaseT transmission source and suitable CAT copper cable. The maximum stated extension distance is 130m (430ft) at up to 1080p60, 36bpp, so cable selection and total run length should be planned around those limits.
Two mirrored HDMI outputs connect the received video signal to two displays. Ethernet can be incorporated into the same extended connection, while RS-232 and IR support control integration. The available digital audio outputs allow the installer to route de-embedded audio to compatible S/PDIF or TOSLINK equipment without relying exclusively on the audio carried by the HDMI outputs. No transmitter, installation cable or included accessory package is identified in the supplied product data.
The defining feature of the TP-582R is its 1:2 receiver configuration: one received HDBaseT signal is converted into two mirrored HDMI outputs. This directly supports dual-display layouts without requiring different content at each display. The receiver also handles Ethernet and control signals within the same HDBaseT workflow, reducing the number of independent signal-extension functions required at the receiving location.
Its dedicated audio outputs further distinguish it from a receiver that only converts HDBaseT to HDMI. S/PDIF and TOSLINK de-embedding make the received program audio independently available for compatible audio equipment while the mirrored HDMI feeds continue to serve the displays.
The Kramer TP-582R is a focused solution for extended-reach Full HD distribution to two mirrored displays. With up to 130m transmission distance, 1080p60 36bpp video support, 6.75Gbps bandwidth, Ethernet, bi-directional RS-232, IR and dual-format digital audio de-embedding, it brings the principal receiving, control and audio-routing functions together in one HDBaseT endpoint.
