4K HDR HDMI Compact PoC Receiver over Long-Reach DGKat 2.0

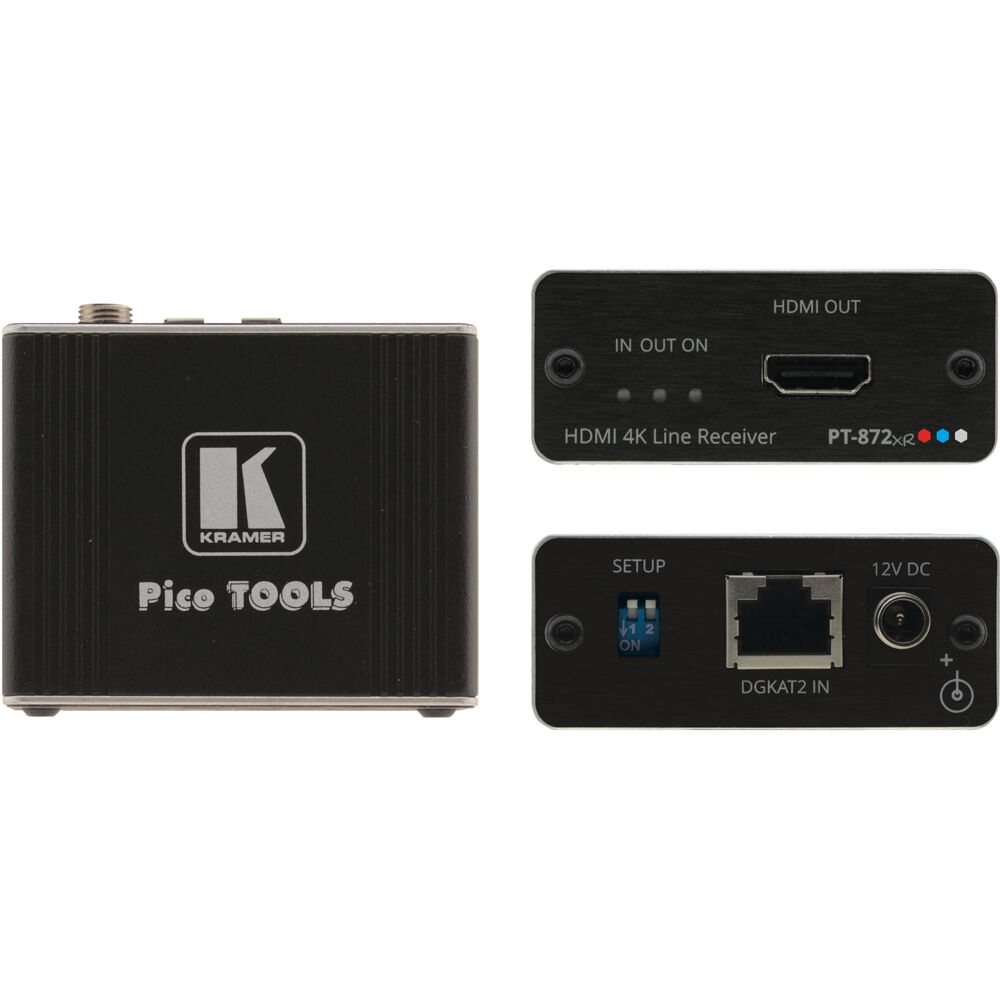

The Kramer PT-872XR is a compact, long-reach DGKat 2.0 receiver designed to convert a transmitted DGKat 2.0 signal into HDMI. It supports 4K@60Hz video with 4:4:4 chroma, HDR10, HDCP 2.2, and bandwidth up to 18Gbps. Over Kramer shielded cables, the receiver extends 4K@60Hz (4:4:4) signals up to 60m (200ft), while 4K@30Hz (4:4:4) 24bpp signals can reach up to 70m (230ft). Two-way powering over twisted pair supports streamlined integration at the receiving endpoint.

Ideal Use Cases

The PT-872XR is suited to AV systems that require high-resolution HDMI delivery across distances beyond a conventional local HDMI connection. Its 60m reach at 4K@60Hz (4:4:4) makes it a practical receiver for installations where full chroma detail and a 60Hz refresh rate must be carried from a remotely positioned DGKat 2.0 transmitter. For applications using 4K@30Hz (4:4:4) 24bpp, the supported distance increases to 70m.

Because the unit converts the incoming DGKat 2.0 transmission back into HDMI, it belongs at the display end of a compatible long-reach signal path. Its compact format is useful when the receiving device needs to be placed close to the HDMI destination without adding a large enclosure.

Why Choose This Model

This receiver combines the core capabilities required for a modern 4K signal chain: 18Gbps bandwidth, 4K@60Hz operation, 4:4:4 chroma, HDR10 support, and HDCP 2.2 compatibility. These specifications make it appropriate for HDMI content where color detail, protected-content support, and high-resolution output must be preserved across a twisted-pair extension.

The stated reach is clearly defined for two important operating formats. It supports up to 60m (200ft) at 4K@60Hz (4:4:4), or up to 70m (230ft) at 4K@30Hz (4:4:4) 24bpp, when used over Kramer shielded cables. This gives system designers a concrete basis for matching signal format and cable distance.

Installation and Integration

Integration centers on a DGKat 2.0 twisted-pair link feeding the PT-872XR at the receiving end. The unit converts that transmitted signal into HDMI for connection to the destination device. Kramer shielded cables are specified for achieving the published extension distances, so cable selection and the required video format should be considered together when planning the run.

The receiver also supports two-way powering over twisted pair. This power arrangement is part of the same long-reach connection and can simplify how power is planned between compatible endpoints. The compact receiver format helps keep the destination-side installation focused on the required DGKat 2.0 and HDMI signal conversion.

Performance Highlights

• Supports 4K@60Hz video with 4:4:4 chroma.
• Extends 4K@60Hz (4:4:4) up to 60m (200ft) over Kramer shielded cables.
• Extends 4K@30Hz (4:4:4) 24bpp up to 70m (230ft) over Kramer shielded cables.
• Provides bandwidth up to 18Gbps.
• Supports HDR10 and HDCP 2.2 signals.
• Converts transmitted DGKat 2.0 signals into HDMI.
• Supports two-way powering over twisted pair.

Together, these capabilities address both signal quality and practical transmission distance. The 4:4:4 support is especially relevant where complete chroma information is required, while the separate 60Hz and 30Hz distance ratings make the receiver’s operating limits easy to evaluate.

What Makes It Different

The PT-872XR is purpose-built around Kramer DGKat 2.0 rather than being presented as a general-purpose HDMI accessory. Its defining combination is long-reach twisted-pair reception, conversion to HDMI, two-way powering, and support for an 18Gbps 4K HDR signal path. The published performance also distinguishes between 4K@60Hz and 4K@30Hz operation instead of presenting a single distance without format context.

That format-specific detail helps avoid ambiguity during system design. Users can identify whether the installation prioritizes a 60Hz refresh rate across 60m or the longer 70m reach available with the specified 4K@30Hz 24bpp format.

Final Assessment

The Kramer PT-872XR is a focused receiver for extending 4K HDR HDMI through a DGKat 2.0 system. It delivers the most value where a compact receiving endpoint, 4:4:4 video, HDCP 2.2 compatibility, HDR10 support, and two-way twisted-pair powering are required. With clearly stated reaches of 60m at 4K@60Hz and 70m at 4K@30Hz over Kramer shielded cables, it provides a defined foundation for a long-distance HDMI signal path.
