12-bay drop-in charger & case Digi-Wave DLT 400 trans ;or DLR 400 RCH

Ideal Use Cases

The Williams AV CHG 412 PRO is a 12-bay, drop-in charging system for Digi-Wave DLT 400 transceivers, DLR 400 RCH receivers, or a combination of both compatible models. Its 12-unit capacity makes it suitable wherever multiple Digi-Wave units need to be charged together between uses. The included CCS 056 case keeps the charger and its compatible units together in a single case-based format.

Each bay provides a dedicated charging position, allowing DLT 400 and DLR 400 RCH units to be placed directly into the charger. Charge status is shown through the indicators on the inserted DLT or DLR units, so charging progress can be checked using the devices themselves.

Why Choose This Model

The defining advantage of the CHG 412 PRO is its combination of 12 charging bays and an included case. It supports both Digi-Wave DLT 400 transceivers and DLR 400 RCH receivers, eliminating the need for separate charging models when both compatible device types are in use. The charger can accommodate as many as 12 units in its available bays.

A universal DC adapter is included. It delivers 5 VDC at 6 A with center-positive polarity, while the charger provides a rated output of 5 VDC and 0.5 A per bay. The specified TFP 066 power supply accepts 90–240 VAC input at up to 1.5 A.

Installation and Integration

Integration centers on the included power supply and the charger’s drop-in bay arrangement. Connect the universal DC adapter to a compatible 90–240 VAC power source, then place supported DLT 400 transceivers or DLR 400 RCH receivers into the 12 charging positions. No other connection method or external charging accessory is specified in the supplied product information.

The charger measures 9 inches long by 7 inches wide by 1.5 inches high, equivalent to 23 by 17.8 by 3.8 centimeters. It weighs 1.8 pounds, or 845 grams. These measurements identify the space and weight requirements to consider when positioning the charger or storing it with the CCS 056 case.

Performance Highlights

All 12 bays are rated at 5 VDC and 0.5 A per bay. The stated charging time is approximately five hours. Actual charge status is communicated by the indicator system on each compatible DLT or DLR device rather than by a separately specified charger display.

The enclosure is constructed from black ABS plastic with a metal base. The combination provides the physical construction specified for the charging unit while maintaining a consistent black exterior. The product carries CE, FCC, WEEE, RoHS, and CB approvals.

What Makes It Different

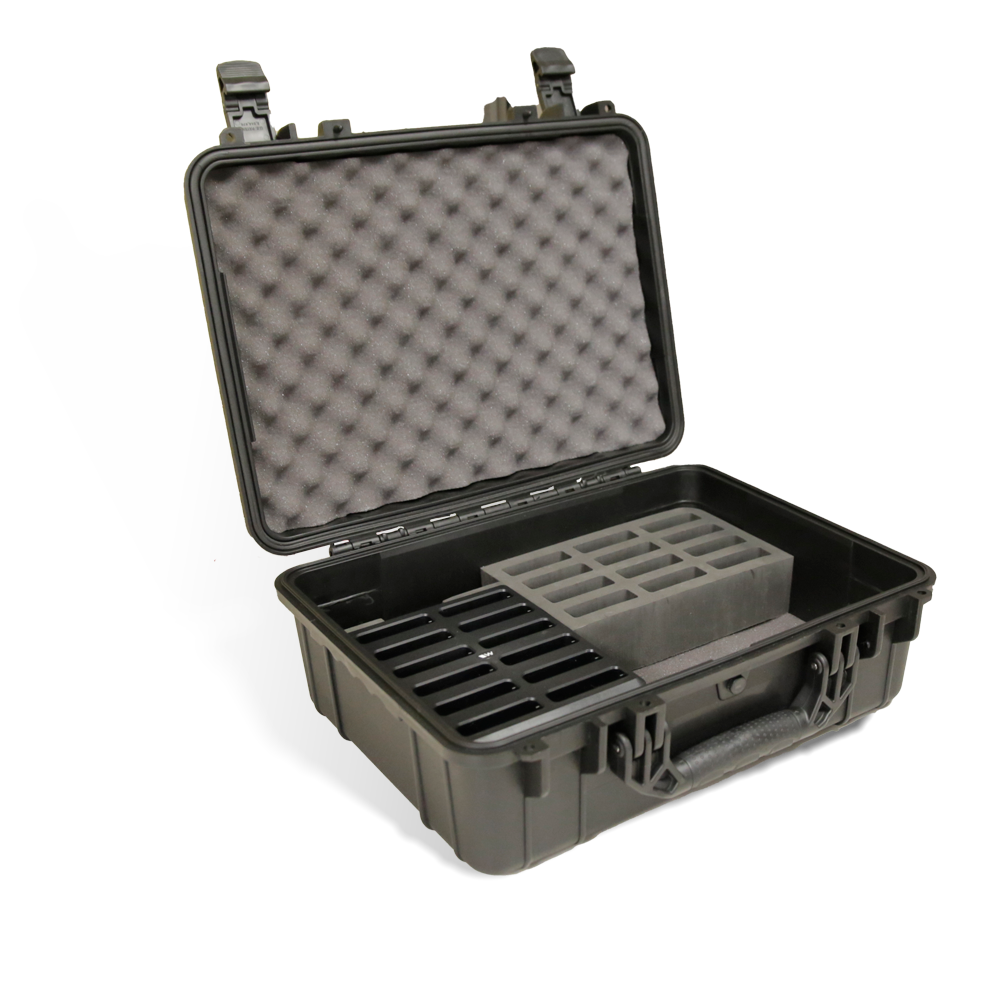

The PRO configuration includes the CCS 056 case in addition to the 12-bay charger. This distinguishes it through an integrated charger-and-case package rather than a charger-only description. Compatibility is specifically identified for the Digi-Wave DLT 400 transceiver and DLR 400 RCH receiver, giving the charger a clearly defined role within those Digi-Wave device configurations.

Its mixed-device compatibility is also important: the bays may be used for DLT 400 transceivers, DLR 400 RCH receivers, or both types within the charger’s total 12-unit capacity. The supplied universal adapter and wide 90–240 VAC input specification complete the documented power arrangement.

Final Assessment

The Williams AV CHG 412 PRO brings together a 12-bay drop-in charger, CCS 056 case, and universal power adapter for supported Digi-Wave equipment. Its core specifications are straightforward: capacity for 12 units, approximately five hours of charging time, 5 VDC at 0.5 A per bay, and compatibility with DLT 400 and DLR 400 RCH devices.

The charger is covered by a two-year warranty, while its cables and power supply carry a 90-day warranty. For systems built around the specified Digi-Wave models, the CHG 412 PRO provides the documented charging capacity, case configuration, power supply, device-level status indication, and regulatory approvals in one model.
