4 slot charging bay for use with DLT 400 transceiver and;or DLR 400 RCH

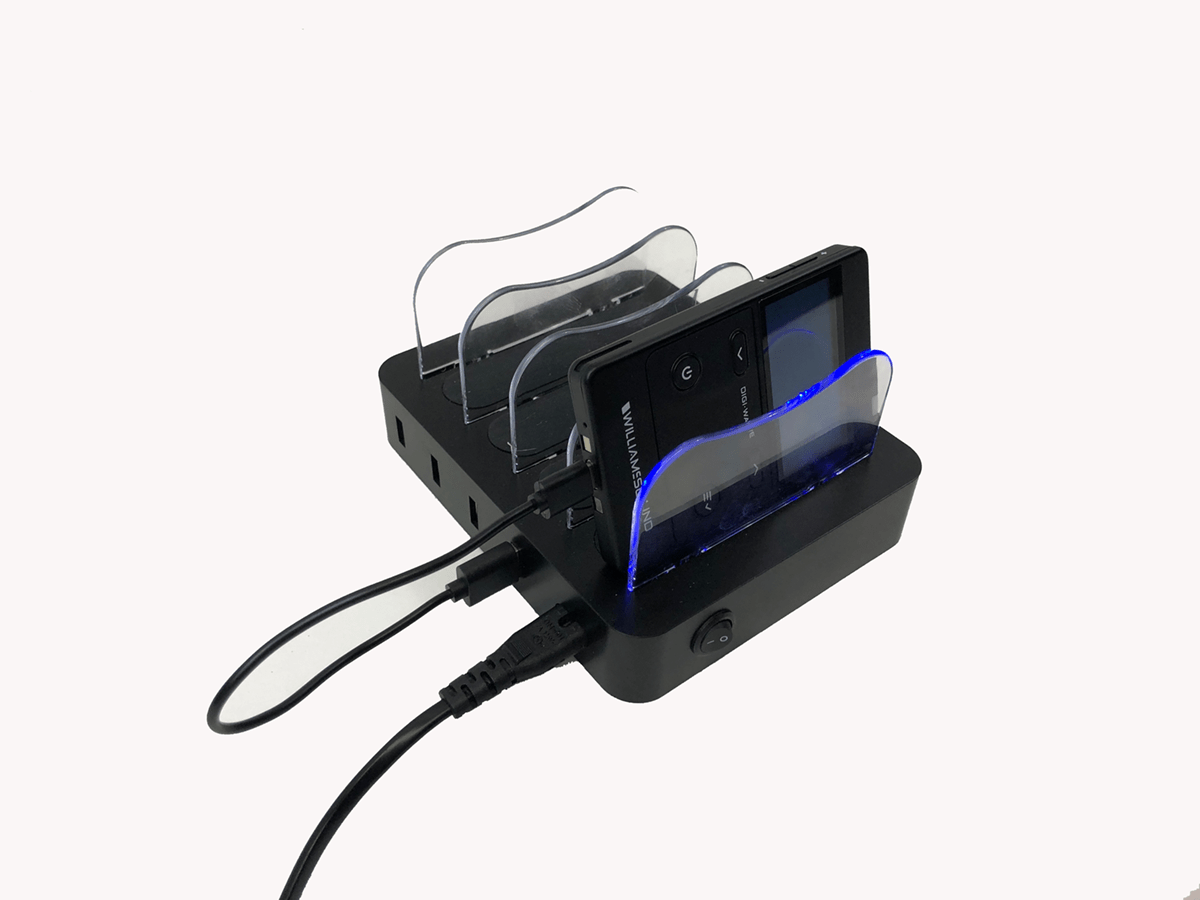

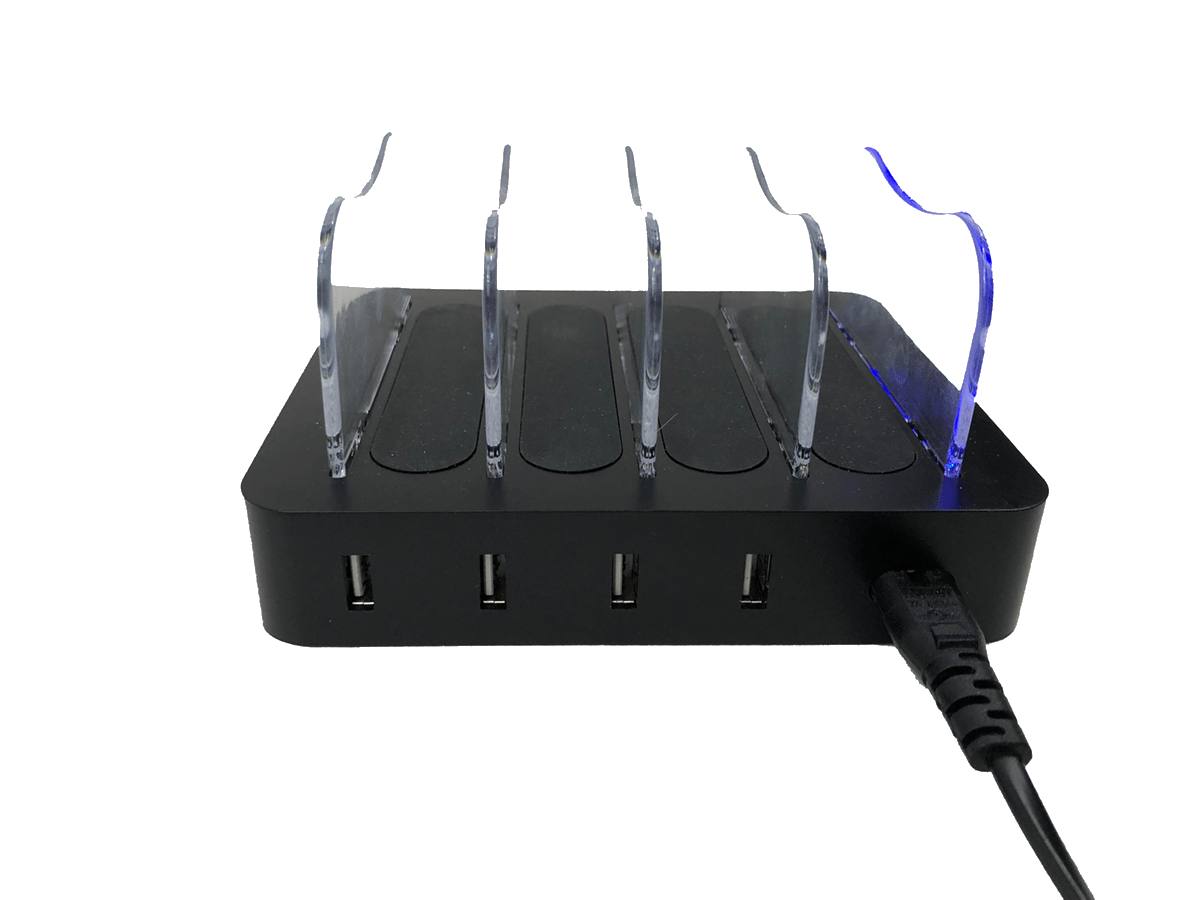

The Williams AV CHG 404 DW provides a compact, centralized charging station for Digi-Wave DLT 400 transceivers and DLR 400 RCH units. Its four charging bays support up to four compatible devices, while individual blue LED indicators make charging activity easy to identify. The charger includes its power supply and accepts USB Type-A plugs for flexible connection with appropriate device cables.

Ideal Use Cases

The CHG 404 DW is designed for workflows that rely on multiple DLT 400 or DLR 400 RCH units and need a consistent place to recharge them. Its four-unit capacity is especially useful when compatible devices are issued, collected, and charged as a group. Instead of arranging several separate charging locations, operators can place up to four units in one compact bay. This SKU is specifically identified for the DLT 400 and DLR 400 RCH models.

Why Choose This Model

Each bay provides a specified DC output of 5.0 V at 1.1 A, with a maximum stated output of 22 W. Individual charging indicators use blue LEDs that illuminate the clear dividing panels, giving each bay a distinct visual indicator. The included power supply supports AC 100–220 V, 50/60 Hz input at 0.5 A maximum. Together, the four-bay capacity, individual indicators, and included supply provide the essential components for managing a compatible Digi-Wave charging setup.

Installation and Integration

The charger measures 6 inches long by 5 inches wide by 3 inches high, or 15.6 by 12.7 by 7.85 centimeters, allowing it to fit into a relatively small charging area. Connect the included power supply to a compatible AC 100–220 V, 50/60 Hz source. The charging bay accepts USB Type-A plugs. Appropriate cables may use either a USB-C or Micro-B plug at the end that connects to the device being charged. Cable selection should therefore match the connection on the compatible DLT 400 or DLR 400 RCH unit.

The unit weighs 0.70 pounds, or 0.3 kilograms, making it easy to position within an existing equipment-handling area. Its black and clear plastic construction also keeps the illuminated dividing panels visible during charging.

Performance Highlights

The CHG 404 DW supports four units and supplies each bay with DC 5.0 V at 1.1 A. The specified maximum output is 22 W. Every charging position has its own indicator rather than relying on a single shared light for the entire station. Blue LEDs illuminate the clear panels dividing the bays, providing a visible charging indication for each position.

Power compatibility covers AC input from 100 to 220 V at 50/60 Hz, with a maximum input current of 0.5 A. These published input and output specifications make it possible to confirm the charger’s electrical requirements before integration.

What Makes It Different

This model combines four charging positions with a compact footprint and individually illuminated bay dividers. The clear plastic sections are functional parts of the indicator system, allowing the blue LED illumination to remain visible between the black sections of the charger. USB Type-A plug acceptance also permits the use of appropriate cables terminating in USB-C or Micro-B for connection to the device.

The CHG 404 DW carries WEEE, RoHS, CE, FCC, and IC approvals. Its published warranty is one year, while the cables and power supply have a 90-day warranty. These details distinguish the coverage for the main charging bay from the coverage provided for its supporting accessories.

Final Assessment

For a Digi-Wave system built around DLT 400 and DLR 400 RCH units, the Williams AV CHG 404 DW offers a clearly specified four-device charging solution. It combines a 5.0 V, 1.1 A output per bay with individual blue LED charging indicators, broad 100–220 V AC input compatibility, and an included power supply. Its 6-by-5-by-3-inch enclosure and 0.70-pound weight keep the charging station compact while providing four dedicated positions for compatible equipment.
