12-bay drop in charger for DigiWave DLT 400 transceiver and DLR 400 RCH

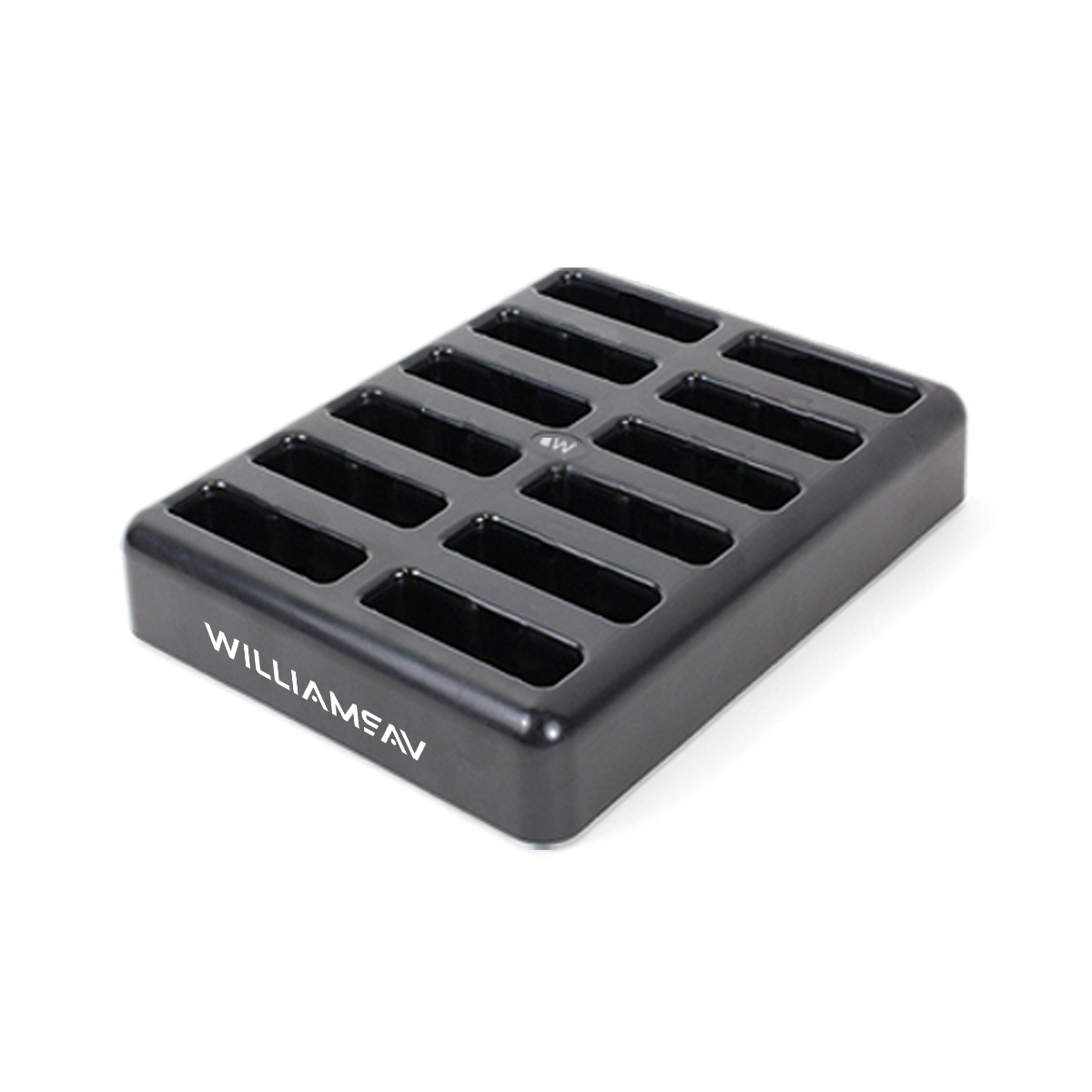

The Williams AV CHG 412 is a purpose-built, 12-bay drop-in charger for the Digi-Wave DLT 400 transceiver and DLR 400 RCH receiver. It combines twelve charging positions in a single black ABS plastic enclosure with a metal base. Each bay provides a specified 5 VDC, 0.5 A output, while the listed charging time is approximately five hours.

Ideal Use Cases

This model is intended specifically for users who need to charge multiple DLT 400 transceivers, DLR 400 RCH receivers, or a combination of those compatible units. Its 12-unit capacity makes it relevant wherever these Digi-Wave devices are managed in quantity. Because it uses a drop-in format, compatible units can be placed into the available charging bays without separate charging specifications for each position.

Compatibility is explicitly identified for the DLT 400 transceiver and DLR 400 RCH receiver. The CHG 412 is therefore best selected when those exact models are already in use or planned for a system. No compatibility with other transceivers or receivers is specified.

Why Choose This Model

The CHG 412 brings twelve charging bays together in one enclosure while maintaining a defined output of 5 VDC at 0.5 A per bay. This makes its charging capacity and electrical requirements clear before purchase. The approximately five-hour charging time also provides a concrete basis for planning when compatible devices need to be returned to service.

Charge status is shown through indicators on the connected DLT or DLR units. This keeps status information associated with each individual device. The charger supports up to 12 units, allowing its full bay capacity to be used with the specified Digi-Wave models.

Installation and Integration

The charger measures 9 inches long by 7 inches wide by 1.5 inches high, equivalent to 23 cm by 17.8 cm by 3.8 cm. It weighs 1.8 pounds, or 845 grams. These measurements provide the information needed to account for the charger within an equipment area or other designated charging location.

The listed power supply input is TFP 066 with a 90-240 VAC input and a maximum current of 1.5 A. The power supply is specified as a universal DC adapter delivering 5 VDC at 6 A with center-positive polarity. The output rating at the charger is 5 VDC and 0.5 A for each of its twelve bays. Integration should be limited to the stated power specifications and the identified compatible units.

Performance Highlights

• Twelve drop-in charging bays with capacity for 12 compatible units.
• Approximately five hours of charging time.
• 5 VDC, 0.5 A output rating per charging bay.
• Compatibility with the Digi-Wave DLT 400 transceiver and DLR 400 RCH receiver.
• Charge status indicators located on the DLT or DLR devices.
• Universal DC adapter specification of 5 VDC, 6 A output with center-positive polarity.

The defined per-bay output and overall 12-unit capacity make the charger’s operating scope easy to evaluate. Its performance information is specific to charging and does not introduce unrelated networking, audio, or display functions.

What Makes It Different

The CHG 412 is differentiated by its model-specific Digi-Wave compatibility and twelve-bay configuration. Rather than serving as a general-purpose charger, it is identified for two particular Williams AV devices: the DLT 400 transceiver and the DLR 400 RCH receiver. Its enclosure combines black ABS plastic with a metal base, and the complete unit remains 1.5 inches high.

Listed approvals include CE, FCC, WEEE, RoHS, and CB. The charger carries a two-year warranty, while cables and the power supply are covered for 90 days. These separate warranty periods should be considered when evaluating coverage for the charger and its associated power components.

Final Assessment

The Williams AV CHG 412 is a focused charging solution for systems using DLT 400 transceivers and DLR 400 RCH receivers. It offers twelve bays, an approximately five-hour charging time, device-based charge indicators, and clearly documented electrical ratings. Its black ABS enclosure, metal base, compact physical dimensions, listed approvals, and defined warranty terms provide the principal details needed to determine whether it fits an existing Digi-Wave equipment setup.
