Remote Channel Selector-4 Channels-controls RU-ASX4D/R-Black

The RDL DB-RCS4 is a black remote channel and source selection panel that places four-channel control and clear status indication at a convenient wall location. The provided product title identifies control of the RU-ASX4D/R, while the scraped manufacturer description names the RDL RU-SX4A Audio Selector. Its pushbutton-actuated SEL output and direct LED connections create a focused operator interface, while five indicators make the current selection state immediately visible.

Ideal Use Cases

This model suits audio installations that require remote access to four source choices from a compact, professional-looking panel. Support for multiple control and indication locations makes it useful when the selector module is installed away from the operator. Four green LEDs identify the selected channel, while a red LED shows that no channel is selected. These distinct visual states provide straightforward confirmation whenever an operator needs to verify the active source before continuing an audio task.

Why Choose This Model

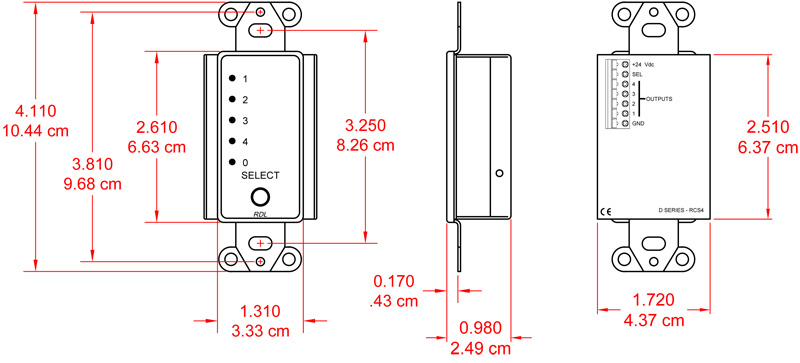

The DB-RCS4 combines source selection, status indication, and wall-box mounting in a panel measuring 4.11 inches high, 1.72 inches wide, and 1.66 inches deep. Its five-LED display communicates all four selectable channel states as well as the no-selection state. A detachable terminal block provides the specified connection method, and the premium-quality remote panel is designed with a professional aesthetic appearance suitable for visible installation locations.

Installation and Integration

The panel mounts in a US electrical box or an RDL WB-1U or WB-2U international wall box. A decorative plate is available separately. LED inputs operate by grounding, with direct connections from the RDL selector module. The SEL output is rated at 15 Vdc at 5 mA and is actuated by the pushbutton. Power requirements are ground-referenced 24 Vdc at 25 mA. Recommended power supplies, which are not included, are the PS-24AS for the USA and PS-24AX for international use. Because the supplied title and scraped description reference different controlled selector models, compatibility with the intended selector should be confirmed before installation.

Performance Highlights

The panel provides dedicated indication for each selectable channel rather than relying on a shared or ambiguous status light. A green LED illuminates for each of the four selected-channel states, and the separate red LED communicates that no channel is selected. The specified operating environment spans 0 degrees C to 55 degrees C. Together with the detachable terminal block and defined control output, these characteristics provide installers with concrete electrical and environmental requirements for system planning.

What Makes It Different

The DB-RCS4 is purpose-built around a four-choice control workflow. Its interface combines a pushbutton-actuated SEL output with direct selector-module LED inputs, keeping selection and confirmation together on one panel. The additional red no-selection indicator distinguishes an inactive state from any of the four active channel states. Multiple control and indication locations are supported, allowing the control point and visible feedback to be positioned where operators need them within the supported RDL selector installation.

Final Assessment

The RDL DB-RCS4 offers a concise remote-control interface for four-channel source selection. Its strongest practical attributes are the five clearly defined LED states, detachable terminal-block connection, wall-box mounting options, and specified 24 Vdc power requirement. With its black finish and professional aesthetic appearance, it is intended for exposed control locations where both selection access and visual confirmation matter. Confirm the intended selector model and separately required mounting plate or power supply before ordering.
