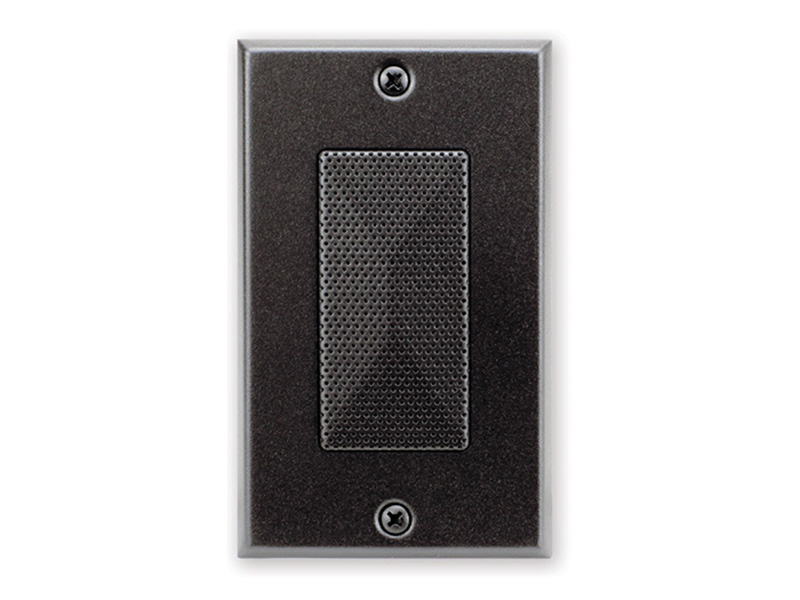

2 Watt Decora-Style 8 Ohm Loudspeaker-Black

Ideal Use Cases

The RDL DB-SP1A is suited to audio installations that require a compact, black, Decora-style loudspeaker with nominal 8-ohm impedance. Its enclosure can be mounted in a US electrical box, installed with an RDL international WB- wall box, paired with an SMB- surface-mount box, or integrated into a DC- desktop chassis. Those mounting accessories are available separately. The speaker is particularly appropriate where available wall or surface space is limited but clear, detailed sound and broad hemispherical dispersion are required. Its detachable terminal block also supports straightforward integration with 14 to 24 AWG wiring.

Why Choose This Model

The DB-SP1A combines an acoustically optimized Decora enclosure with a convex aluminum cone, rubber surround, and neodymium motor. This construction is designed to deliver fidelity comparable to larger drivers while retaining an ultra-compact form. RDL specifies rich presence, detailed clarity, and exceptional audio quality for the speaker’s size. The black finish supports installations calling for this specific color, while the formed perforated steel grille and powder-coated steel enclosure provide a defined metal construction. Its 8-ohm nominal impedance makes the electrical requirement clear when selecting compatible amplification.

Installation and Integration

The speaker measures 4.1 inches high by 1.72 inches wide and 2.07 inches deep with the terminal block installed. Metric dimensions are 10.4 by 4.37 by 5.26 centimeters. A mounting box with a minimum depth of 2 inches, or 5.08 centimeters, is required. Connection is made through a detachable terminal block that accepts conductors from 14 to 24 AWG. Depending on the installation, the DB-SP1A can be placed in a US electrical box or used with separately available RDL WB-, SMB-, or DC-series mounting hardware. This range of supported mounting arrangements allows the same speaker format to be used in a wall, on a flat surface, or within a desktop chassis.

Performance Highlights

The DB-SP1A is rated for 2 W RMS input power, with modulation peaks limited to 10 W. Its nominal frequency range extends from 150 Hz to 20 kHz, providing specified coverage from the upper bass region through high frequencies. Sensitivity is rated at 78 dB with 1 W input measured at 1 meter, nominal. When mounted in a wall or on a flat surface, the speaker provides hemispherical dispersion. The aluminum cone, rubber surround, and neodymium motor work within the acoustically optimized enclosure to support the model’s stated combination of compact size, presence, clarity, and fidelity.

What Makes It Different

This model places a complete 8-ohm loudspeaker into a Decora-style footprint rather than relying on the dimensions associated with a larger driver. The compact format is paired with specified installation flexibility: electrical-box mounting, international wall-box compatibility, surface mounting, and desktop-chassis integration. Its construction is also clearly defined, with a convex aluminum cone and rubber surround behind a formed perforated steel grille. A neodymium motor completes the driver design. The detachable terminal block further distinguishes the integration approach by allowing connection of 14 to 24 AWG wiring without making the connection hardware a permanent part of the cable.

Final Assessment

The RDL DB-SP1A is a focused choice for installations needing a black, ultra-compact Decora-style speaker with an 8-ohm nominal load. It provides 2 W RMS power handling, a nominal 150 Hz to 20 kHz frequency range, 78 dB nominal sensitivity, and hemispherical dispersion when mounted in a wall or on a flat surface. Its powder-coated steel enclosure, perforated steel grille, aluminum cone, rubber surround, and neodymium motor establish a specific construction package. Multiple separately available mounting formats and the detachable terminal block support practical installation across compatible wall, surface, and desktop configurations.
