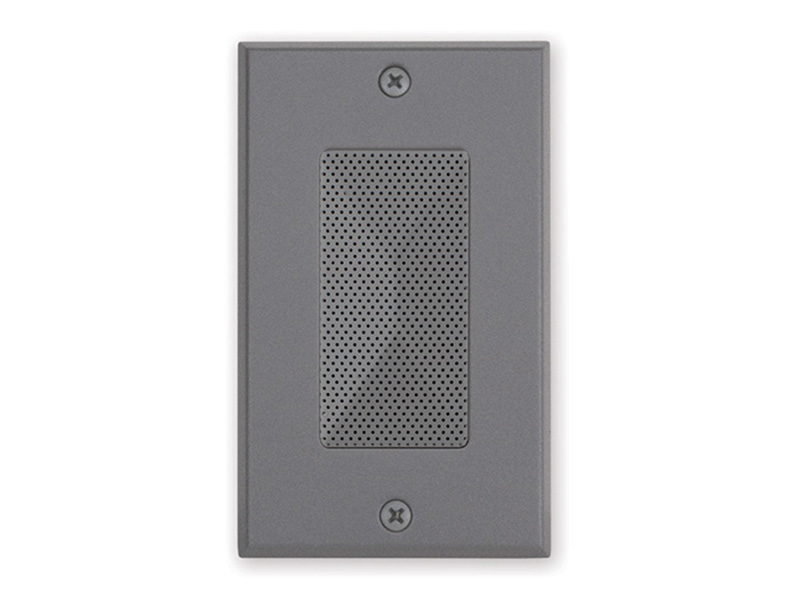

2 Watt Decora-Style 8 Ohm Loudspeaker-Gray

The RDL DG-SP1A is a gray, ultra-compact Decora-style loudspeaker built around an acoustically optimized enclosure. It delivers 2 W RMS input power, with modulation peaks limited to 10 W, and presents a nominal 8-ohm impedance. Its convex aluminum cone, rubber surround, and neodymium motor are designed to provide rich presence, detailed clarity, and fidelity comparable to larger drivers while retaining a compact installation footprint.

Ideal Use Cases

This model is suited to installations that require a loudspeaker to fit within a Decora-style form factor. It can be mounted in a compatible US electrical box, installed with an RDL international wall box, placed on a flat surface using a surface-mount box, or integrated into a compatible desktop chassis. Its hemispherical dispersion supports both in-wall and flat-surface placement, allowing the loudspeaker to distribute sound from several mounting positions without changing the specified driver configuration.

Why Choose This Model

The DG-SP1A combines an ultra-compact enclosure with a nominal frequency range of 150 Hz to 20 kHz. Its sensitivity is rated at 78 dB with 1 W input measured at 1 meter under nominal conditions. The driver uses a convex aluminum cone with a rubber surround and a neodymium motor. Together with the acoustically optimized Decora enclosure, these elements support the exceptional audio quality, presence, and detailed clarity described for the model.

Steel is used for both the enclosure and grille. The enclosure is powder-coated, while the formed grille uses perforated steel. This construction keeps the visible assembly compact while protecting the driver behind a rigid metal grille.

Installation and Integration

The DG-SP1A measures 4.1 inches high, 1.72 inches wide, and 2.07 inches deep with its terminal block installed. Metric dimensions are 10.4 cm high, 4.37 cm wide, and 5.26 cm deep. A mounting box with a minimum depth of 2 inches, or 5.08 cm, is required.

Audio wiring connects through a detachable terminal block that accepts conductors from 14 to 24 AWG. The detachable design provides direct access to the wiring connection during installation or service. Compatible mounting choices include a US electrical box, RDL international wall boxes identified by the WB- prefix, surface-mount boxes identified by the SMB- prefix, and desktop chassis identified by the DC- prefix. The RDL mounting boxes and desktop chassis are available separately.

Performance Highlights

• 2 W RMS input power with modulation peaks limited to 10 W
• Nominal 8-ohm impedance
• Nominal frequency range of 150 Hz to 20 kHz
• 78 dB sensitivity at 1 W and 1 meter, nominal
• Hemispherical dispersion in wall-mounted or flat-surface configurations
• Convex aluminum cone with a rubber surround
• Neodymium motor
• Detachable terminal block for 14 to 24 AWG wiring

These specifications define a compact loudspeaker intended to preserve clarity and presence across its stated operating range. The hemispherical dispersion characteristic is especially relevant where the speaker must operate from a wall opening or compatible surface-mounted enclosure.

What Makes It Different

The defining feature of the DG-SP1A is its combination of a Decora-style footprint and driver construction intended to deliver fidelity comparable to larger drivers. The aluminum cone and neodymium motor are housed within an acoustically optimized enclosure measuring only 4.1 inches in height. Its formed perforated-steel grille and powder-coated steel enclosure distinguish it from compact assemblies that rely on nonmetal enclosure components.

Integration flexibility is another practical difference. The same loudspeaker can be fitted to a US electrical box or paired with compatible RDL wall-box, surface-mount, and desktop-chassis options. This allows the core 8-ohm loudspeaker and its detachable wiring interface to remain consistent across the supported mounting approaches.

Final Assessment

The gray RDL DG-SP1A is a focused choice for installations that need a compact Decora-style loudspeaker with clearly defined electrical, acoustic, and mounting specifications. It provides 2 W RMS handling, nominal 8-ohm impedance, a 150 Hz to 20 kHz nominal range, and hemispherical dispersion in a metal enclosure. Its detachable terminal block, multiple supported mounting formats, aluminum cone, rubber surround, and neodymium motor make it a well-documented option for space-conscious in-wall or flat-surface integration.
