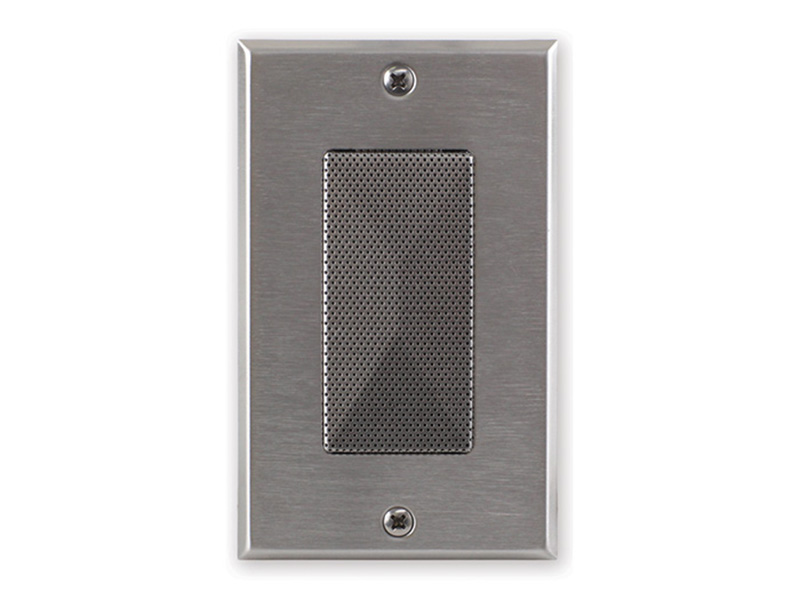

2 Watt Decora-Style 8 Ohm Loudspeaker-Stainless Steel

The RDL DS-SP1A is a stainless-steel, Decora-style loudspeaker designed to deliver detailed sound from an ultra-compact format. Its 8-ohm nominal impedance and 2 W RMS input rating make its electrical requirements clear, while a nominal frequency range of 150 Hz to 20 kHz supports articulate audio reproduction. An acoustically optimized enclosure, convex aluminum cone, rubber surround, and neodymium motor work together to provide rich presence and detailed clarity. The speaker also produces hemispherical dispersion when installed in a wall or on a flat surface.

Ideal Use Cases

The DS-SP1A is suited to installations that require a loudspeaker to fit within a compact wall, surface, or desktop footprint. It mounts in a US electrical box and is compatible with RDL international WB-series wall boxes. An RDL SMB-series box can be used for surface mounting, while a DC-series desktop chassis supports placement on a desk or other flat surface. These mounting products are available separately. Its hemispherical dispersion is useful where sound needs to spread outward from a wall or flat mounting position without relying on a physically large loudspeaker enclosure.

Why Choose This Model

This model combines defined installation dimensions with components selected for compact audio performance. RDL describes its fidelity as comparable to larger drivers, with exceptional audio quality for its ultra-compact size. The convex aluminum cone provides a rigid radiating surface, while the rubber surround supports the cone assembly. A neodymium motor completes the driver design. The powdercoated steel enclosure and formed perforated steel grille provide a metal construction throughout the housing and exposed grille areas. Together, these details distinguish the DS-SP1A from products that provide only basic specifications without identifying their driver or enclosure materials.

Installation and Integration

The DS-SP1A measures 4.1 inches high, 1.72 inches wide, and 2.07 inches deep with its terminal block installed. Metric dimensions are 10.4 cm high, 4.37 cm wide, and 5.26 cm deep. A mounting box with a minimum depth of 2 inches, or 5.08 cm, is required. Audio wiring connects through a detachable terminal block that accepts conductors from 14 to 24 AWG, helping simplify connection and service access. Installers can select a US electrical box, an RDL WB-series international wall box, an SMB-series surface-mount box, or a DC-series desktop chassis according to the intended location. The stated depth includes the terminal block, which is important when confirming available clearance before installation.

Performance Highlights

The loudspeaker is rated for 2 W RMS input, with modulation peaks limited to 10 W. Its impedance is 8 ohms nominal, and its sensitivity is specified at 78 dB with 1 W measured at 1 meter, nominal. The specified nominal frequency range extends from 150 Hz to 20 kHz. These figures provide the essential information needed to evaluate amplifier matching and expected bandwidth without relying on unspecified performance claims. Hemispherical dispersion supports broad outward radiation from either an in-wall position or a flat-surface installation, while the optimized enclosure is designed around the compact driver format.

What Makes It Different

The DS-SP1A concentrates a defined set of acoustic and installation features into a Decora-style footprint. Its combination of an aluminum cone, rubber surround, neodymium motor, steel enclosure, and perforated steel grille is unusually specific for such a compact loudspeaker. It also offers multiple installation paths without changing the core speaker: recessed mounting in a compatible electrical or wall box, surface mounting with an optional SMB-series box, or desktop integration with an optional DC-series chassis. The result is one model that can retain consistent acoustic components and electrical specifications across several physical configurations.

Final Assessment

The RDL DS-SP1A is a focused choice for buyers who need a compact 8-ohm loudspeaker with clearly documented power handling, frequency range, sensitivity, connection type, and mounting requirements. Its 2 W RMS rating, 150 Hz to 20 kHz nominal response, detachable terminal block, and hemispherical dispersion support straightforward system planning. For installations where space is limited but driver construction and detailed clarity still matter, the DS-SP1A provides a practical Decora-style solution with several separately available mounting options.
