10.4" Rack Mount for 6 STICK-ON Series Products

Ideal Use Cases

The RDL STR-H6A is intended for systems built around RDL STICK-ON Series products that need a defined mounting location in a 10.4-inch rack. It accepts up to six STICK-ON modules and occupies two rack units, so it is suited to installations that consolidate several compatible modules in one rack section. Its hinged front panel is especially relevant when the installed modules must remain accessible after mounting. This makes the STR-H6A a focused mechanical integration choice for rack layouts using multiple STICK-ON products.

Why Choose This Model

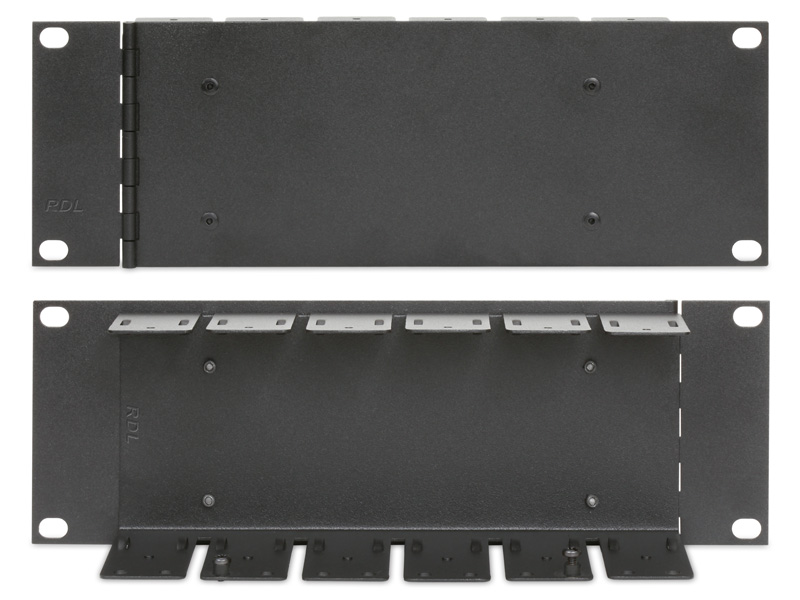

This model gives installers a rack solution matched to the format of the modules it holds. Each STICK-ON module slides into the mount and clicks into place, providing a clearly defined method for retaining compatible products. The all-steel construction forms the mount’s physical structure, while the hinged front panel allows easy access and the complete assembly occupies two RUs. Capacity is straightforward: one STR-H6A holds as many as six compatible RDL modules. For projects already standardized on a 10.4-inch rack and STICK-ON products, those dimensions and limits make planning direct.

Installation and Integration

Reserve two rack units in a 10.4-inch rack before installation. Position the STR-H6A in that space, then slide each compatible STICK-ON module into its designated mounting position until it clicks into place. The mount can be populated with up to six modules, allowing the installed quantity to be matched to the system without exceeding its stated capacity. Once the modules are mounted, the front panel remains hinged for easy access. Project documentation identified for this model includes a PDF specification sheet, American DXF front and end panel diagrams, and CAD material listed in the source data. Those resources can be referenced when coordinating the mount with a rack layout.

Performance Highlights

The STR-H6A is a mounting accessory, so its relevant performance characteristics are mechanical organization, capacity, rack-space use, and access rather than signal processing or electrical specifications. It supports up to six RDL STICK-ON modules, fits the stated 10.4-inch rack format, and uses two RUs. The slide-and-click module interface defines how compatible modules are seated, while the hinged panel provides access from the front. No audio, video, networking, power, or display performance specifications are supplied for this model, and none are implied here.

What Makes It Different

What distinguishes the STR-H6A within the supplied product information is its specific combination of six-module capacity and 10.4-inch rack compatibility. Rather than being described as a general-purpose shelf, it is identified for RDL STICK-ON Series modules, with a slide-in, click-into-place mounting method. The front is hinged rather than fixed, preserving access to the installed modules. All-steel construction and a clearly stated two-RU requirement complete a concise installation profile. The source also identifies the manufacturer part number and model as STR-H6A, helping match the mount to procurement and project records.

Final Assessment

The RDL STR-H6A is a clearly defined choice when the installation calls for as many as six RDL STICK-ON modules in a 10.4-inch rack. Its two-RU allocation should be planned into the rack, and its hinged front panel provides easy module access. The slide-and-click mounting method and all-steel construction are the central hardware attributes supplied for evaluation. Shipping data lists a shipping weight of 1.59 lbs and a cardboard box package type; this is shipping information, not a stated net product weight. For exact project documentation, review the STR-H6A PDF specification sheet.
