19 Universal Rack Chassis

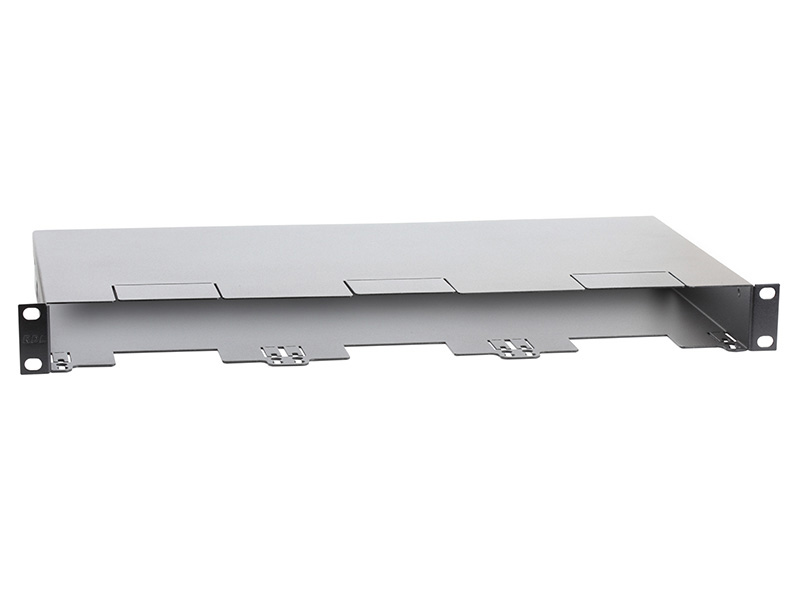

The RDL RC-1UR is a 19-inch universal rack chassis developed for organizing multiple RDL module formats within a rack-based installation. It mounts up to three RDL RACK-UP modules and also provides space for additional RDL products, including STICK-ON and TX Series modules. The chassis is also suited to RDL AMS accessories fastened in an AMS-RU4, giving system designers a single mounting platform for several supported RDL product families.

Ideal Use Cases

The RC-1UR is intended for installations that need to place RDL modules into a standard 19-inch rack environment. It is particularly relevant when a system includes as many as three RACK-UP modules or combines RACK-UP products with smaller RDL module formats. It is also an appropriate choice for projects using AMS accessories mounted in an AMS-RU4.

Its mixed-module support makes the chassis useful when an installation cannot be handled by one RDL module format alone. RACK-UP, STICK-ON, TX Series, and AMS-based components can be considered when planning how the available chassis space will be used.

Why Choose This Model

The principal advantage of the RC-1UR is its support for multiple RDL mounting needs. Rather than limiting the chassis to one named module family, RDL specifies capacity for up to three RACK-UP modules while also providing room for additional modules such as STICK-ON and TX Series products.

The RC-1UR is also specifically identified as ideal for mounting RDL AMS accessories that have been fastened in an AMS-RU4. This documented compatibility helps distinguish the model from a basic rack panel and makes it a focused mounting component for systems built around supported RDL hardware.

Installation and Integration

The chassis is designed around a 19-inch rack format. Before selecting modules, determine whether the planned configuration uses RACK-UP products, AMS accessories secured in an AMS-RU4, additional STICK-ON or TX Series modules, or a combination of these supported formats. The stated maximum for RACK-UP hardware is three modules.

Because no dimensions beyond the 19-inch rack designation, mounting hardware list, weight, or installation procedure are included in the supplied product information, those details should be confirmed from the RC-1UR specification sheet when planning a particular installation. The available specification sheet is provided in PDF format. The supplied data does not identify which modules, accessories, fasteners, or rack hardware are included with the chassis.

Performance Highlights

The RC-1UR is a mechanical mounting chassis rather than a projector, signal processor, or powered audio component. Its documented performance is therefore defined by mounting capacity and module compatibility. It supports as many as three RDL RACK-UP modules, accommodates RDL AMS accessories installed in an AMS-RU4, and reserves space for additional RDL modules such as STICK-ON and TX Series models.

No electrical connections, signal-processing functions, power requirements, display specifications, or audio specifications are stated for this product. Its purpose in the supplied information is the rack mounting and organization of compatible RDL components.

What Makes It Different

What separates the RC-1UR from a chassis described for only one product format is the range of RDL mounting applications named for it. The product data identifies three distinct integration paths: up to three RACK-UP modules, AMS accessories held in an AMS-RU4, and additional module space for products including the STICK-ON and TX Series families.

This combination gives the RC-1UR a clearly defined role within an RDL-based rack assembly. Its universal designation reflects the documented ability to work with these different RDL module arrangements, while its 19-inch format establishes the intended rack context.

Final Assessment

The RDL RC-1UR is a purpose-built 19-inch universal rack chassis for installations involving supported RDL modules and accessories. Its key specifications are straightforward: capacity for up to three RACK-UP modules, suitability for AMS accessories fastened in an AMS-RU4, and space for additional STICK-ON and TX Series modules. For system designs that require these mounting combinations, the RC-1UR provides the documented compatibility needed to organize the selected RDL components in a rack-based configuration.
