24 Vdc Switching Power Supply, no cord, 3 A, dc Plug (Replaces PS-24V2)

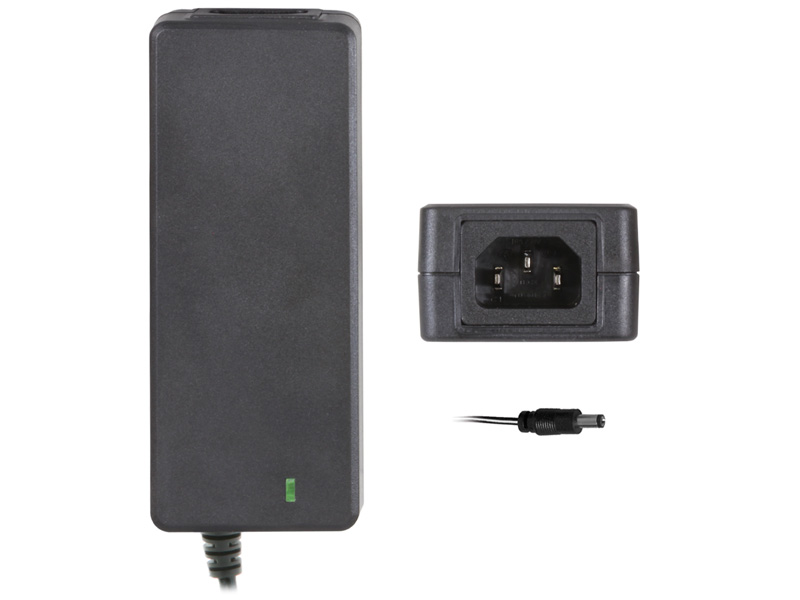

The RDL PS-24V3 is a 24 Vdc switching power supply rated for 3 A output. It accepts 100 to 240 VAC input and is specified at ENERGY STAR Level VI efficiency. This version is supplied with no cord and includes a DC plug intended for quick connection to numerous RDL modules. When a plug-in connection is not appropriate, the DC plug may be cut off for hard wiring to RDL modules. The PS-24V3 replaces the PS-24V2.

Ideal Use Cases

The PS-24V3 fits RDL system installations that require a 24 Vdc, 3 A power source and can use its DC plug. It is also suitable for RDL modules that use a hard-wired power connection because the plug may be removed for that installation method. Projects using associated RDL PS mounting accessories are another direct fit. Its specified 100 to 240 VAC input accommodates installations where the available AC input falls within that range.

Why Choose This Model

This model combines a defined electrical output with two documented connection options:

• Provides 24 Vdc at 3 A, with UL and CSA noted in the published output specification.
• Accepts 100 to 240 VAC input.
• Includes a DC plug for quick connection to numerous RDL modules.
• Allows the DC plug to be cut off for hard wiring to RDL modules.
• Meets the stated ENERGY STAR Level VI efficiency specification.
• Replaces the RDL PS-24V2 model.

These characteristics make the PS-24V3 a focused choice when the required voltage, current capacity, and RDL connection method match the installation.

Installation and Integration

For plug-based integration, the supplied DC plug provides the documented quick-connection method for numerous RDL modules. For an RDL module requiring a direct hard-wired connection, the plug may be cut off. The power supply is also compatible with associated RDL PS mounting accessories, allowing it to be incorporated into installations that use those mounting products.

No cord is supplied with this model. Its nominal product dimensions are 1.99 inches by 1.31 inches by 5.06 inches, equivalent to 5.05 by 3.33 by 12.85 centimeters. These measurements provide the information needed to account for the power supply within the planned installation. The specified ambient operating environment is 0° C to 40° C maximum.

Performance Highlights

The electrical profile is centered on a 24 Vdc, 3 A output and a 100 to 240 VAC input range. The published output specification lists UL and CSA, while efficiency is identified as ENERGY STAR Level VI. Together, these are the principal electrical and efficiency details supplied for the PS-24V3.

The unit is packaged in a cardboard box measuring 6.25 by 3.75 by 2.25 inches. Published logistics information lists a shipping weight of 0.723 pounds and a WEEE weight of 0.66 pounds. The shipping weight is package-related data and is not presented as the standalone product weight. The listed tariff code is 8504.40.9520.

What Makes It Different

The defining feature of the PS-24V3 is its connection flexibility within RDL installations. The DC plug supports quick connection to numerous RDL modules, while the documented option to remove the plug supports hard-wired integration with RDL modules. Compatibility with associated RDL PS mounting accessories further connects the supply to the RDL installation ecosystem.

Its specifications are clearly bounded: 24 Vdc output, 3 A capacity, 100 to 240 VAC input, Level VI efficiency, no supplied cord, and operation in ambient conditions from 0° C through 40° C maximum. It also serves as the stated replacement for the PS-24V2.

Final Assessment

The RDL PS-24V3 is a purpose-defined switching power supply for compatible RDL module installations. It is the appropriate selection when a project calls for 24 Vdc at up to the specified 3 A output, a 100 to 240 VAC input, and either the included DC plug connection or the documented hard-wiring option. Its nominal dimensions, operating-temperature specification, Level VI efficiency, and compatibility with associated RDL PS mounting accessories provide the core information needed to evaluate installation fit.
