32In Tableux ePaper, 2560x1440, Reflective, Lan, Wifi, USB, Android SoC

Ideal Use Cases

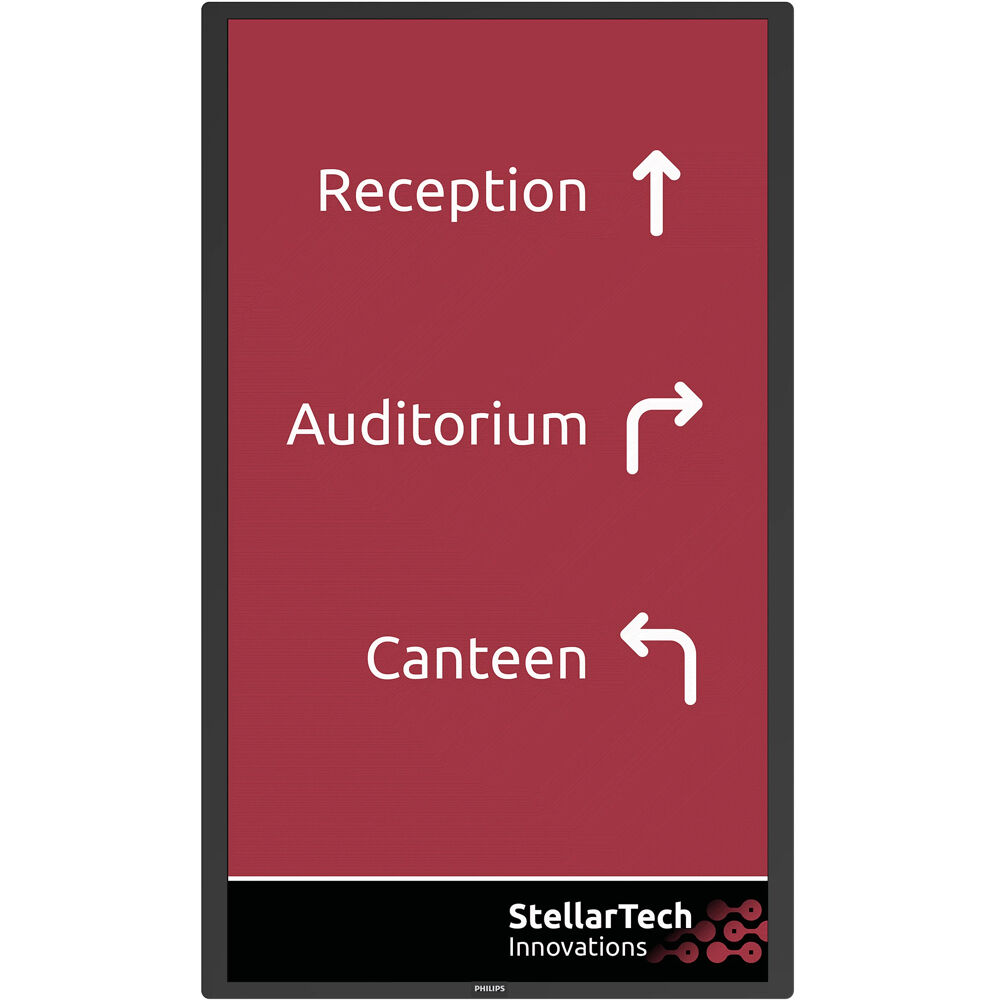

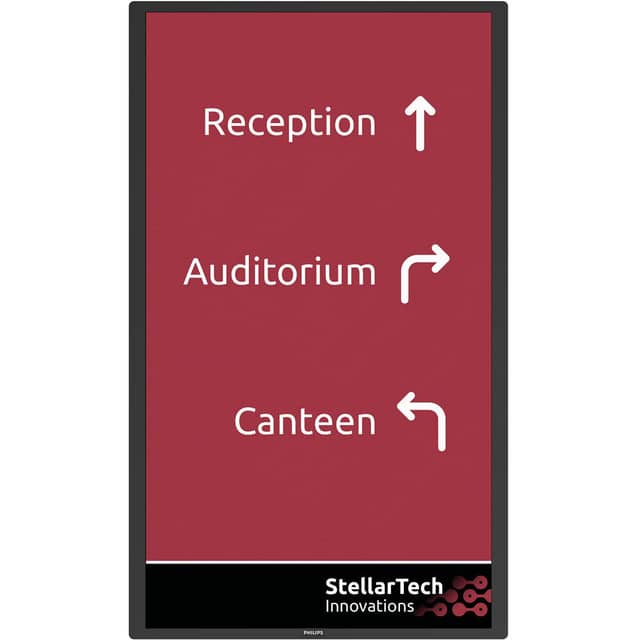

The Philips Tableaux 5150I is a 31.5-inch reflective ePaper display designed as an alternative to A2 colour posters and point-of-sale materials. Its 2560 x 1440 resolution, 16:9 aspect ratio and support for 65,000 colours make it suitable for detailed static imagery, promotional messages, informational displays and other content that does not require continuous motion. The display can be positioned in landscape or portrait orientation, allowing it to accommodate horizontal graphics as well as vertically formatted poster designs.

Because static imagery can remain visible using zero power, this model is particularly relevant for installations where content remains unchanged for extended periods. LAN network control, Wi-Fi connectivity and an integrated Android platform also support installations where content needs to be managed through a connected display.

Why Choose This Model

The Tableaux 5150I combines a reflective ePaper panel with a 31.5-inch viewing area and QHD-class 2560 x 1440 pixel resolution. Its 65K colour capability gives static graphics a broader visual palette than monochrome ePaper formats. The reflective display design and zero-power presentation of static imagery distinguish it from conventional powered signage screens.

An integrated Rockchip RK3566 processor, 2 GB of DDR4 memory and 16 GB of eMMC storage provide the hardware platform for Android 13. Connectivity includes 10 M/100 M Ethernet, 2Tx/2Rx 802.11 ac/a/b/g/n Wi-Fi and a Bluetooth 5.1 module. Micro USB and USB connections are also available, along with left and right audio output.

Installation and Integration

The display measures 718.7 mm wide, 426.9 mm high and 37.5 mm deep, with a product weight of 3.5 kg. It supports both 100 x 100 mm and 200 x 200 mm VESA mounting patterns. Combined with landscape and portrait placement options, these mounting provisions allow the unit to be integrated into a range of wall-mounted signage layouts.

Bezel measurements are 18.6/18.6/12.2/12.2 mm. Power can be supplied using the specified 20 V/2.25 A adapter or through PoE++ compliant with IEEE 802.3bt. A battery bay accommodates four 18650 batteries, although batteries are not included. The supplied package contains an AC power adapter and quick-start guide.

For connected deployments, the display is network controllable through LAN and includes both Ethernet and wireless networking. These options provide a choice between wired infrastructure and compatible Wi-Fi networks without changing the core display configuration.

Performance Highlights

The 2560 x 1440 panel presents content at a 16:9 aspect ratio across a 31.5-inch diagonal screen. It displays 65K colours, while the underlying Android 13 system runs on a Rockchip RK3566 CPU with 2 GB DDR4 memory and 16 GB eMMC storage. The combination provides an integrated processing and storage platform within the display.

Specified operating conditions include temperatures from 0 to 50 degrees Celsius, relative humidity from 20% to 80% and altitudes from 0 to 3,000 metres. The listed storage temperature range is 20 to 60 degrees Celsius. On-screen display languages include English and Simplified Chinese.

Available physical connections include micro USB and USB, while audio is provided through left and right audio output. Ethernet operates at 10 M/100 M speeds, and the wireless module supports 802.11 ac/a/b/g/n Wi-Fi with 2Tx/2Rx operation plus Bluetooth 5.1.

What Makes It Different

The defining feature of the Tableaux 5150I is its ability to show static colour imagery using zero power. That characteristic is paired with a larger ePaper format intended to replace A2 colour posters and POS materials. Rather than limiting content to monochrome graphics, the panel supports 65,000 colours at 2560 x 1440 resolution.

Its power options also provide deployment flexibility: the display can use the included AC adapter, PoE++ through IEEE 802.3bt or four separately purchased 18650 batteries. Landscape and portrait positioning, two VESA mounting patterns and integrated Android 13 further distinguish it as a purpose-built connected ePaper signage display.

Final Assessment

The Philips Tableaux 5150I is a focused choice for static digital signage that requires a 31.5-inch reflective colour ePaper panel, detailed 2560 x 1440 imagery and flexible network integration. Its zero-power display of static images, 65K colour support, Android 13 operating system and wired or wireless connectivity address the practical requirements of poster and POS replacement applications.

Installation is supported by dual VESA patterns, two orientation options and multiple power methods. Buyers planning battery-powered operation should note that the required four 18650 batteries are not included. The display carries a three-year warranty and has CE, CB, UL and FCC regulatory approvals.
