86" 3840 x 2160 UHD, 50pt IR Touch, 18/7, 400cd/m2, Android 14

Ideal Use Cases

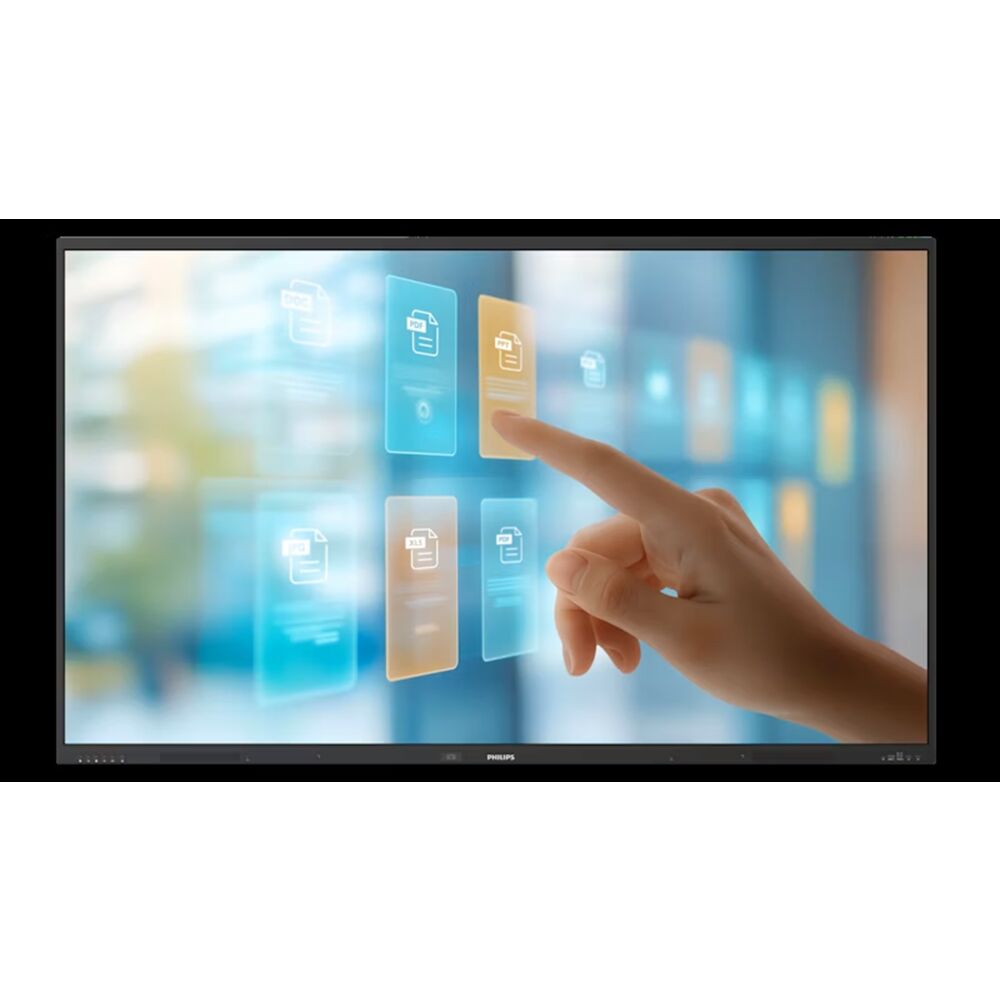

The 86BDL4252E/00 is an 86-inch interactive display built for large-format collaboration and shared on-screen work. Its 3840 x 2160 UHD panel presents detailed content across an expansive 16:9 canvas, while 50 simultaneous touchpoints allow multiple participants to interact with the display. The included touch pen supports direct input without requiring a separate accessory purchase.

Android 14, a built-in microphone, 2 x 20 W speakers, and broad wired and wireless connectivity make this model suitable for interactive presentations, collaborative sessions, and other environments where content, audio, and touch input need to operate together. It is specified for 18/7 operation and includes carrying handles to assist with positioning during installation.

Why Choose This Model

This display combines a 400 cd/m2 ADS panel with 0-gap infrared touch technology and HID-compliant plug-and-play operation. The touch system supports as many as 50 simultaneous points, helping groups participate directly rather than relying on a single presenter. Tempered safety glass with a 9H pencil rating provides protection for frequent use, while anti-glare and anti-fingerprint properties help maintain a practical viewing and interaction surface.

The integrated Android 14 platform is supported by a 4xA72 plus 4xA53 CPU, a multi-core Mali-G52 GPU, 8GB of memory, and 128GB of eMMC storage. These built-in resources allow the display to provide its own UHD interface without depending entirely on an external computer.

Installation and Integration

The display measures 1957 x 1170.8 x 97.1 mm and weighs 51.25 kg without a stand. It is intended for landscape placement and supports an 800 x 600 mm M8 wall-mount pattern. The supplied USB A-to-B cable, AC power cord, remote control with AAA batteries, quick-start guide, and touch pen provide the primary items needed for setup. An optional pen tray with two color styluses is also listed.

Video connections include HDMI 2.0, USB-C, DisplayPort, and VGA inputs, plus an HDMI 2.0 output. USB-B, USB 3.0, OPS, a 3.5 mm audio input, a 3.5 mm audio output, and SPDIF digital audio output support integration with additional equipment. External control is available through RS232C D-Sub9 and two Gb LAN connections, with RS232 and RJ45 network control also specified. Lockable keyboard and remote-control functions help manage local access.

Performance Highlights

The native 3840 x 2160 panel operates at an optimum 60 Hz refresh rate and displays 1.07 billion colors. Typical contrast is rated at 1200:1, with a dynamic contrast ratio of 500,000:1. Horizontal and vertical viewing angles are both 178 degrees, and the typical response time is 8 ms. Picture processing includes progressive scan, dynamic contrast enhancement, and 3/2 and 2/2 motion pull-down.

Wireless capabilities include 2T/2R Wi-Fi across 2.4, 5, and 6 GHz bands, Bluetooth 5.2 BLE, and NFC. The display also includes a blue light filter, Pixel Shift, Low Brightness screen-saving functions, and Smart Power. Typical power consumption is 175 W, while the specified mains input is 100-240 V, 50-60 Hz, 7.5 A.

What Makes It Different

• Up to 50 simultaneous touchpoints using 0-gap infrared technology.
• Android 14 with 8GB memory and 128GB eMMC storage.
• 86-inch ADS panel with UHD resolution, 400 cd/m2 brightness, and 178-degree viewing angles.
• Tempered 9H safety glass with anti-glare, anti-fingerprint, and blue light filtering features.
• Integrated microphone, 2 x 20 W speakers, Wi-Fi, Bluetooth 5.2 BLE, and NFC.
• HDMI 2.0, USB-C, DisplayPort, VGA, OPS, USB, RS232, and dual Gb LAN connectivity.

Final Assessment

The 86BDL4252E/00 brings together a large UHD image, high-capacity multi-touch interaction, integrated Android processing, built-in audio, and extensive connection options. Its protective glass, control features, 18/7 specification, and 50,000-hour MTBF address regular professional use, while the five-year warranty adds defined coverage. For installations that need an 86-inch interactive surface with onboard computing and flexible integration, this model offers a comprehensive combination of display, touch, audio, and control capabilities.
