75" 3840 x 2160 UHD 20pt HE-IR Touch, 400nits, OPS Slot Display d/m2, Android SoC

Ideal Use Cases

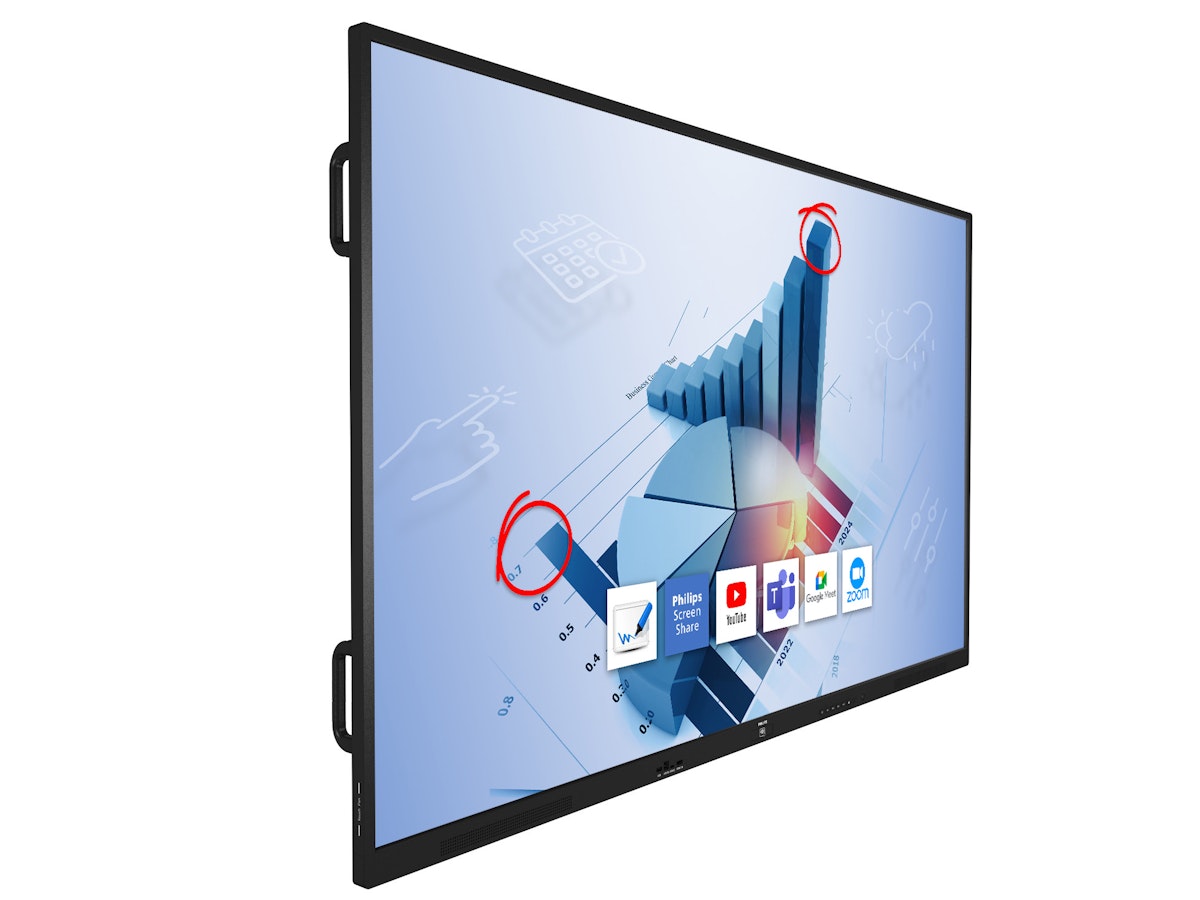

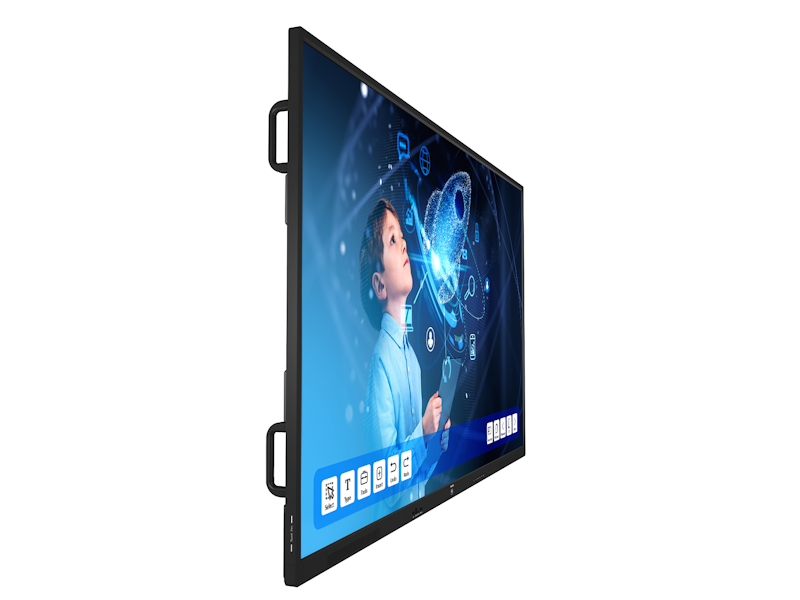

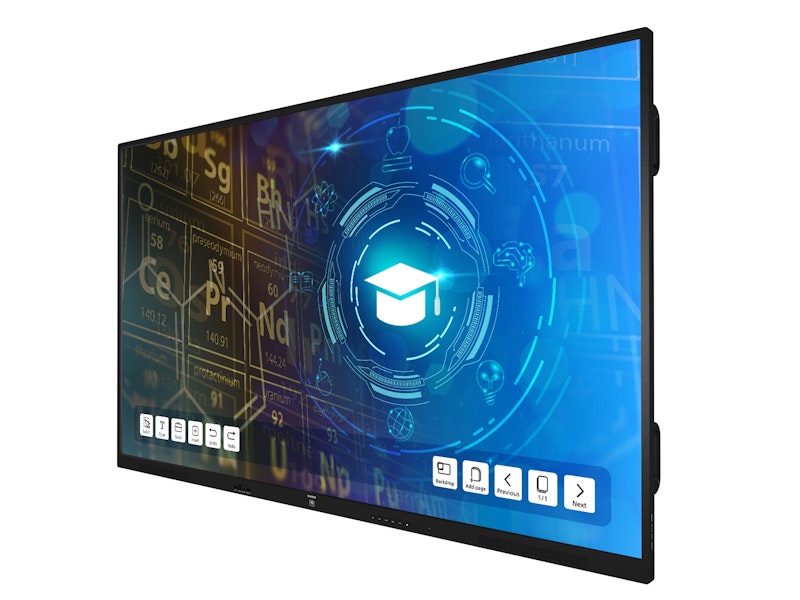

The PPDS 75BDL4152E/00 is a 74.5-inch interactive display designed for shared visual work, presentations and collaborative sessions. Its 3840 x 2160 panel provides a large UHD canvas for detailed content, while 0-gap infrared technology supports up to 40 simultaneous touchpoints. HID compliance simplifies connection to compatible systems, and the supplied touch pen supports direct interaction. Android 14, integrated wireless connectivity and built-in speakers make the display suitable for meeting spaces, training rooms, classrooms and other environments where multiple participants need to view, discuss and manipulate content together.

Why Choose This Model

This model combines an ADS panel, 400 cd/m² brightness and wide 178-degree horizontal and vertical viewing angles. It displays 1.07 billion colors and has a typical contrast ratio of 1200:1, supplemented by a listed dynamic contrast ratio of 500,000:1. The touch surface uses tempered safety glass rated at 7 MOHS, with anti-glare protection and a blue-light filter. The source description also identifies anti-reflection and anti-fingerprint characteristics. These features help maintain a usable, protected interaction surface while supporting clear visibility across a large room.

The integrated Android system uses a processor configuration of four A73 and four A53 cores, a multi-core Mali-G52 GPU, 8 GB of memory and 32 GB of eMMC storage. This on-board platform is complemented by Bluetooth 5.2 BLE, NFC and 2T/2R Wi-Fi supporting 2.4, 5 and 6 GHz bands. An OPS connection provides an additional integration option for installations that require compatible modular computing hardware.

Installation and Integration

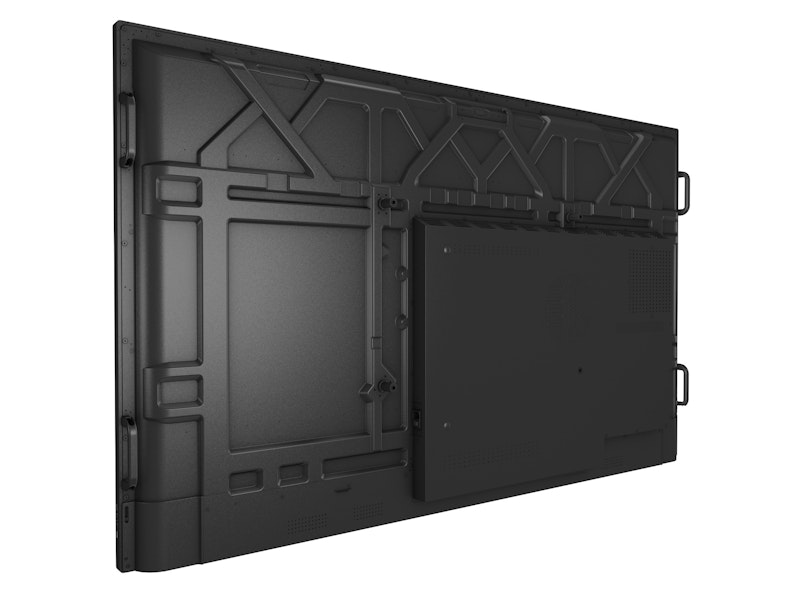

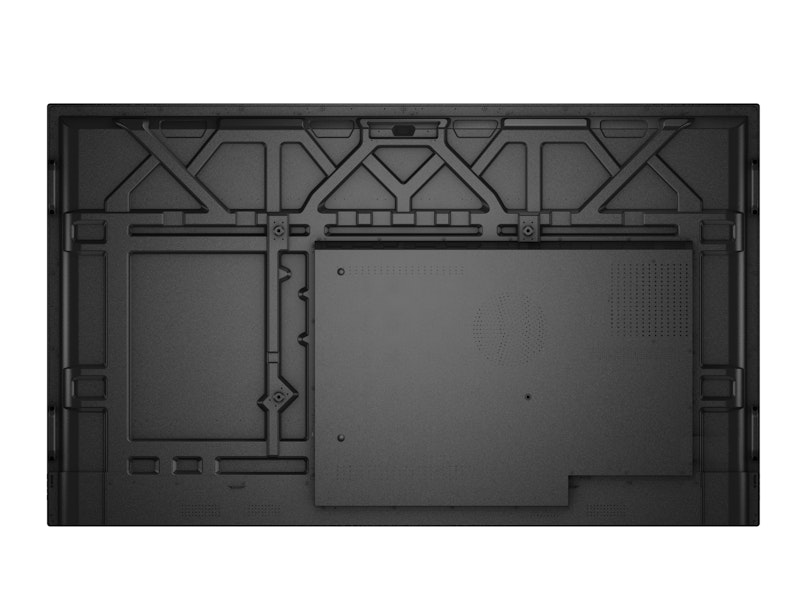

The display is intended for landscape placement and supports a 600 x 400 mm wall-mount pattern with M8 hardware. It measures 1715.2 x 1018.3 x 116.15 mm, or 67.53 x 40.09 x 4.57 inches, and weighs 45.5 kg or 100.31 lb without a stand. Integrated carrying handles assist with positioning during installation. Power requirements are 100 to 240 VAC at 50/60 Hz, with typical consumption rated at 155 W and standby consumption listed below 0.5 W.

Connection options include HDMI 2.0 input and output, USB 3.0, USB 2.0, two listed USB-C connections, USB-B and Micro USB. Separate 3.5 mm audio input and output jacks are provided. External management options include RS232C, RJ45 network control, two Gigabit LAN connections, IR control and RS232 and IR loop-through. Lockable keyboard and remote-control functions can help administrators maintain the intended operating configuration.

Performance Highlights

The panel’s native resolution is 3840 x 2160, with an optimum resolution and Android interface resolution of 3840 x 2160 at 60 Hz. A 75 Hz refresh rate is also listed in the supplied specifications. Typical response time is 8 ms, pixel pitch is 0.4296 x 0.4296 mm and the aspect ratio is 16:9. Picture-processing features include progressive scan, 3D comb filtering, motion-compensated deinterlacing, 3D motion-adaptive deinterlacing, motion pull-down processing and dynamic contrast enhancement.

Supported video signals extend through 2160p at 50 or 60 Hz, with listed support for 480i, 480p, 720p, 1080i and 1080p formats. USB video playback includes H.263, H.264, H.265, MPEG-1/2, MPEG-4, VP8 and VP9. Supported USB audio formats include AAC, HE-AAC and MPEG, while image playback supports BMP, JPEG, PNG and WebP. Two integrated 20 W speakers provide a combined built-in audio solution.

What Makes It Different

The combination of a large UHD panel, 40-point simultaneous infrared touch and Android 14 distinguishes this display as a self-contained collaboration platform rather than a conventional non-interactive screen. Its connectivity spans wired control, dual Gigabit LAN, current Wi-Fi bands, Bluetooth, NFC, USB-C and OPS. Pixel Shift and Low Brightness screen-saving functions are included, along with Smart Power management. The display has a stated MTBF of 50,000 hours and carries a five-year warranty.

Included accessories cover the primary setup essentials: an AC power cord, remote control with AAA batteries, USB-A-to-B cable, touch pen, cleaning cloth, quick-start guide, Philips logo and an AC switch cover with one screw. An optional pen tray with three colored styli and an eraser is also listed.

Final Assessment

The 75BDL4152E/00 brings together 4K detail, a 400 cd/m² ADS panel, broad viewing angles, 40 simultaneous touchpoints and an integrated Android 14 system. Its protected touch glass, 2 x 20 W speakers, extensive connection set and OPS support make it a well-equipped choice for large-format collaborative installations that need interactive operation, on-board processing and centralized control in one display.
