Universal Vector Pro II Projector Mount

Ideal Use Cases

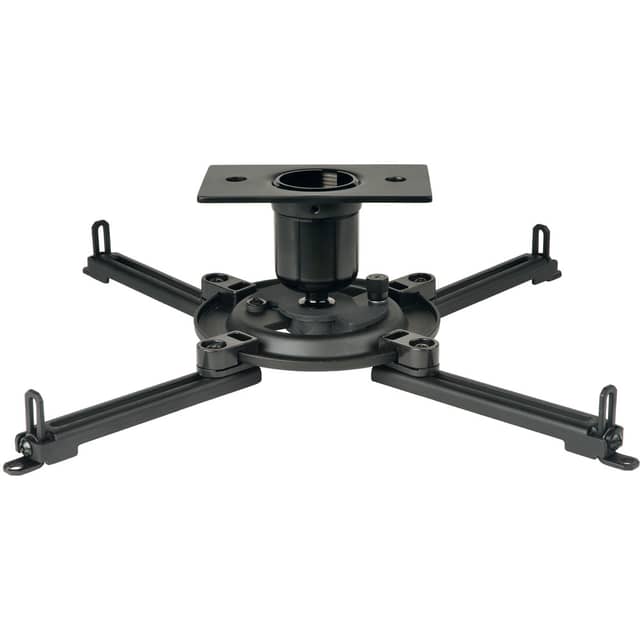

The Peerless-AV Vector Pro II PJF2-UNV is an indoor ceiling mount for multimedia projectors weighing up to 50 lb (22 kg). Its listed applications include classrooms, boardrooms, hotels, bars, and restaurants, making it suitable for environments where the projector needs an overhead mounting position. The black, flush-profile design helps the installation maintain a clean appearance, while internal cable-management paths keep cords concealed from view. Security is also a listed application: preinstalled security hardware at every connection point and tamper-resistant construction address installations in shared or publicly accessible spaces.

Why Choose This Model

The PJF2-UNV combines multidirectional projector positioning with integrated cable and security features. Its ball-and-socket design supports roll, pitch, and yaw adjustments for proper image alignment. The mount is height adjustable and has a published adjustable-depth range from 8.50 to 17.63 inches. Minimum and maximum tilt-angle specifications are listed as 5 degrees and 15 degrees. These adjustment capabilities allow the installer to position the attached projector while keeping the mounting system close to the ceiling through its flush mount profile.

An included extension-column connector incorporates internal pathways for cable management. This keeps projector wiring within the mounting arrangement instead of leaving cords visibly routed around the installation. The result is especially relevant in presentation rooms, hospitality spaces, classrooms, and dining or entertainment venues where exposed cabling can detract from the room.

Installation and Integration

The package includes the PJF2 projector mount, a Spider Universal Adapter Plate, a ceiling plate, mounting and projector-attachment hardware, and assembly instructions. The product is listed as requiring no assembly. Its mounting surface is the ceiling, its form factor is ceiling mountable, and it is intended for indoor use. The supplied adapter plate and attachment hardware provide the core components required to connect a supported projector to the mount.

The complete mount measures 17.63 inches wide by 17.63 inches deep by 7.73 inches high and weighs approximately 3.08 lb. Its 50 lb maximum load capacity should be considered when selecting the projector for the installation. The adjustable depth begins at 8.50 inches and extends to a listed maximum of 17.63 inches. Installation guidance is supplied in the included instructions.

Performance Highlights

For projector alignment, the ball-and-socket mechanism provides movement across roll, pitch, and yaw rather than limiting adjustment to a single axis. This multidirectional positioning is designed to support proper image alignment after the projector is mounted. Height adjustment and the published tilt specifications add further setup flexibility, while the flush profile keeps the mounting arrangement close to the ceiling.

The mount is constructed from aluminum and nylon and is finished in black. Its finish is listed as powder coated and fused epoxy. Durability characteristics include scratch resistance and tamper resistance. Cable management is integrated as a mount function, allowing signal and power cords to follow internal paths through the included extension-column connector.

What Makes It Different

The defining combination of the Vector Pro II is its universal adapter plate, internal cable routing, multidirectional ball-and-socket positioning, and security hardware. Preinstalled security hardware is provided at every connection point, integrating protection throughout the mounting assembly. The listed certifications and standards are RoHS, TAA, and UL, and the product is identified as UL Listed. It also complies with the Restriction of Hazardous Substances requirements.

Peerless Industries, Inc. manufactures the PJF2-UNV, which belongs to the Vector Pro II product line and MOD-PJF2 series. The mount is supplied as one unit, has a country of origin of Taiwan, and is backed by a five-year limited warranty.

Final Assessment

The Universal Vector Pro II PJF2-UNV is a ceiling-mounting solution for indoor multimedia projectors up to 50 lb. It brings together a flush profile, roll, pitch, and yaw positioning, height adjustment, concealed cable paths, and preinstalled security hardware. Its included Spider Universal Adapter Plate, ceiling plate, attachment hardware, and instructions provide a coordinated package for projector installations in classrooms, boardrooms, hospitality properties, restaurants, and bars.
