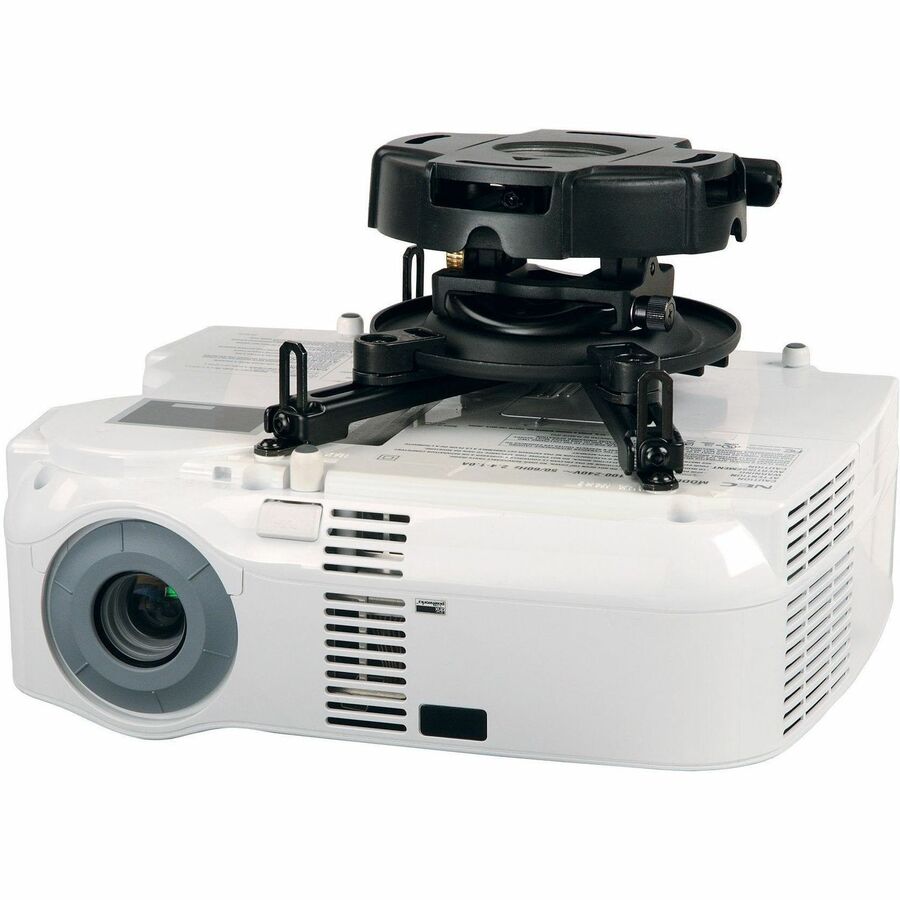

Universal PRG precision gear projector mount

Ideal Use Cases

The Peerless-AV PRG-UNV is designed for indoor ceiling and flush-mount installations using multimedia projectors weighing up to 50 lb (22 kg). It is especially relevant for installations where accurate image alignment must remain secure during routine projector maintenance. The mount is classified as a universal projector mount and includes a Spider Universal Adaptor Plate, providing a universal mounting format rather than a projector-specific plate. Its black, ceiling-mountable form factor is suitable for permanent indoor projector installations.

Why Choose This Model

The PRG-UNV centers on a patent-pending precision gear design that simplifies tilt and roll image positioning. Two adjustment knobs allow the projector position to be refined with a Phillips screwdriver. For tool-less adjustment, the knobs can be extended and turned by hand. Once the precision gear reaches the desired position, it can be secured in place. Peerless-AV states that the mount holds its position even while the projector is being serviced, reducing the need to repeat alignment after maintenance. The mount is also height adjustable and supports swivel, tilt, locking, cable-management, and extendable functions.

Installation and Integration

Assembly is required. The package includes the PRG Precision Gear Projector Mount, a Spider Universal Adaptor Plate, mounting and projector-attachment hardware, and assembly instructions. It is intended for mounting to a ceiling in indoor or flush applications. The maximum adjustable height is 2.14 inches, while the adjustable depth is listed from 8.50 to 17.63 inches. Overall mount dimensions are 17.63 inches wide, 17.63 inches deep, and 4.81 inches high. The mount weighs approximately 3.08 lb. Projector weight should remain within the stated 50 lb maximum load capacity.

Cable management is incorporated into the listed mount functions, helping integrate connected projector cabling with the ceiling-mounted installation. The lockable and tamper-resistant characteristics also support installations where the final projector position needs to remain secured after alignment.

Performance Highlights

The mount’s primary performance feature is its precision control over projector alignment. The geared mechanism supports exact tilt and roll positioning without relying on conventional adjustment screws or repeated micro-adjustments. Technical data lists both the minimum and maximum tilt angles as 20 degrees. The mount also provides swivel and tilt functions, allowing the projector image to be positioned before the mechanism is locked.

The structure has a maximum load capacity of 50 lb and is described as aluminum. Its black finish is listed as powder coated and fused epoxy. Scratch-resistant and tamper-resistant durability characteristics are also specified for the mount.

What Makes It Different

The PRG-UNV combines geared image alignment with two adjustment methods. Installers can use a Phillips screwdriver for controlled adjustment or extend the knobs and make changes by hand. After positioning, the precision gear retains its setting, including during projector maintenance. This directly addresses the repeated alignment work that can occur when a projector is removed, serviced, or handled.

The included Spider Universal Adaptor Plate, projector-attachment hardware, and mounting hardware provide the principal components specified for assembly. The product is listed as RoHS, TAA, and UL certified or compliant, with TAA compliance separately confirmed in the supplied specifications. It is manufactured in Taiwan and carries a five-year limited warranty.

Final Assessment

The Peerless-AV PRG-UNV is a universal indoor ceiling mount for multimedia projectors up to 50 lb. Its defining advantages are precision geared tilt and roll positioning, screwdriver or tool-less adjustment, a lockable design that retains alignment during maintenance, integrated cable management, and an included universal adaptor plate. For installations that require repeatable image positioning and a ceiling or flush mounting format, it provides a focused set of adjustment and integration features.
