Mosaic Video Wall Mount for 46" - 70" Displays

Ideal Use Cases

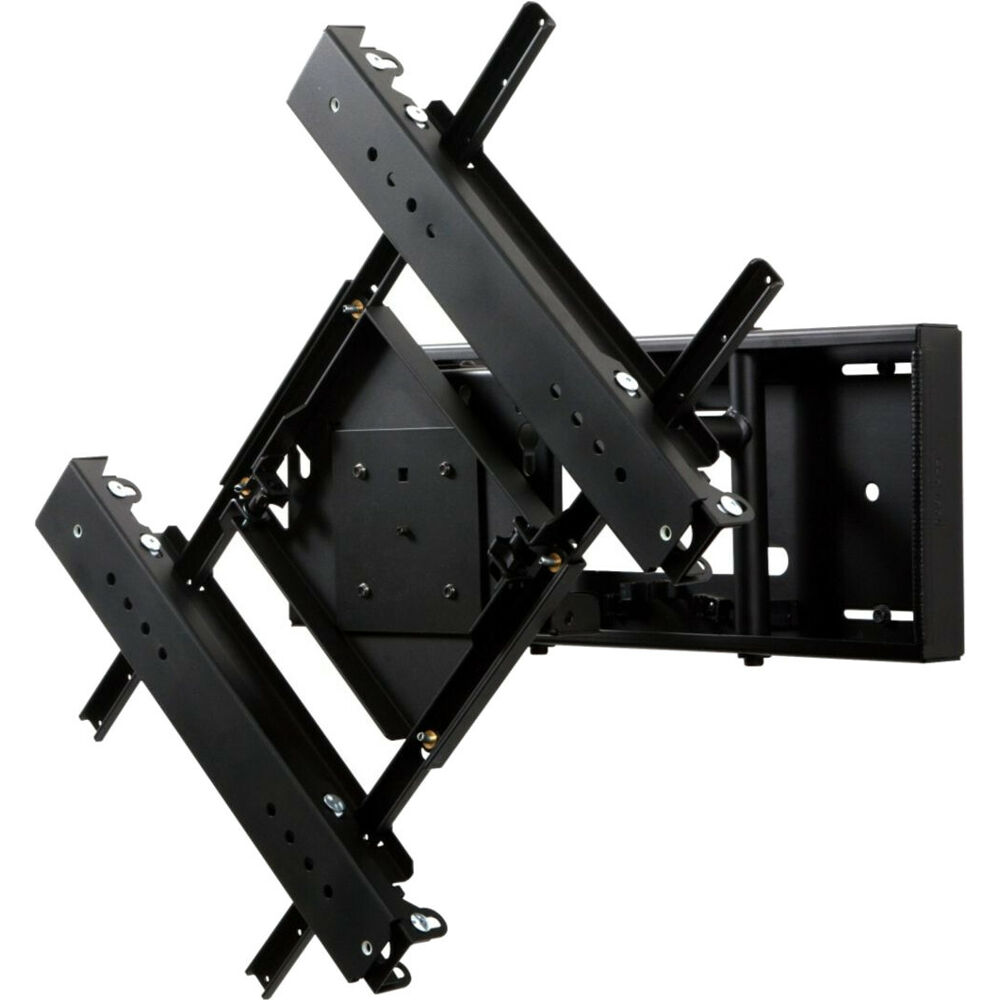

The Peerless-AV SmartMount DS-VWM770 is designed for video-wall installations using 46- to 70-inch displays. Its special-purpose format is particularly useful when a conventional, uniformly aligned screen grid is not the intended design. Displays attach to the mount in 15-degree increments, giving designers the flexibility to develop mosaic-style arrangements and other distinctive wall-mounted configurations. A maximum load capacity of 125 lb supports the specified display range, while the black matte powder-coated finish keeps the mounting structure visually restrained.

Why Choose This Model

This model combines creative display positioning with the precise adjustment and service access required by a multi-display installation. Ten points of micro-adjustment provide the fine control needed to align adjacent screens and refine the appearance of the video wall. The mount also extends away from the wall and pivots to provide convenient access behind the display. Once servicing is complete, the display can be pushed back until it clips securely into its home position. These functions address alignment, positioning, and rear access through one integrated wall-mount assembly.

Installation and Integration

The DS-VWM770 is wall mountable and features universal mount-pattern compatibility with VESA-compatible displays. Listed mounting patterns include 300 x 300, 400 x 200, 400 x 300, 400 x 400, and 600 x 400, with a stated minimum mounting pattern of 100 x 100. Before installation, the display size, weight, and mounting interface should be checked against the mount’s specified limits.

Adjustable depth ranges from 4.40 to 12.90 inches, allowing the display to extend for rear access and return to its installed position. The mount measures 26.94 inches wide, 18.79 inches high, and 12.95 inches deep. Its maximum swivel angle is 90 degrees. Assembly is required, and the package includes the special-purpose video wall mount, an adapter, and mounting hardware.

Performance Highlights

The mount supports displays weighing up to 125 lb and measuring from 46 to 70 inches. Its ten micro-adjustment points are intended to provide the fine tuning needed for a seamless video-wall appearance. Display attachment in 15-degree increments expands the range of possible orientations, while the extending and pivoting mechanism provides access to connections and components behind the display. The secure home-position clip helps return the display to its intended installed position after service access.

Mechanical adjustment is supported by a wall-mountable form factor, universal pattern compatibility, VESA compatibility, and a 90-degree maximum swivel angle. Together, these specifications make the DS-VWM770 suitable for installations where accurate multi-screen positioning and accessible rear servicing are both priorities.

What Makes It Different

The defining feature of the DS-VWM770 is its support for displays positioned in 15-degree increments. This enables arrangements that extend beyond a standard rectangular video wall while retaining the adjustment points needed to refine screen alignment. The mount’s ability to extend and pivot also separates installation positioning from service access: the display can move outward when rear access is required and then clip back into the home position. The result is a specialized mounting platform built around flexible presentation, detailed alignment, and practical maintenance access.

Final Assessment

The Peerless-AV DS-VWM770 is a focused choice for 46- to 70-inch video-wall displays requiring mosaic-style positioning, up to 125 lb of load support, and precise multi-point adjustment. Its universal VESA-compatible interface, adjustable depth, pivoting rear access, and secure return position provide a comprehensive mechanical foundation for specialized display walls. The mount is manufactured in the United States, is TAA compliant, meets RoHS requirements, and includes a five-year limited warranty.
