DUAL DISPLAY CEILING MOUNT SYSTEM

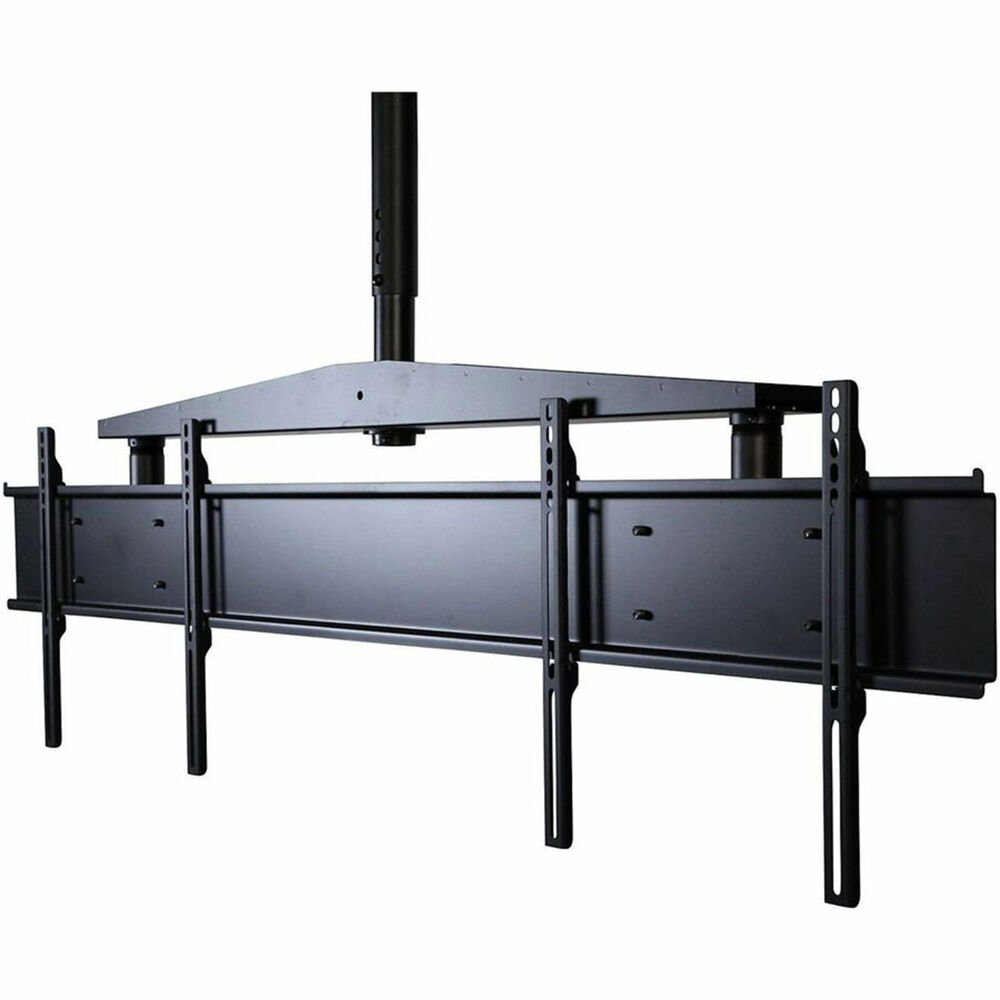

The Peerless-AV DST940 is a ceiling-mount system designed to place two 37-inch to 46-inch flat panel displays side by side on the same plane. A long plate spans both displays, while easy-glide brackets secure them and support practical positioning during setup. The system accepts a stated load range of 75 lb to 150 lb, supports universal mounting patterns from 100 x 100 through 600 x 400, and is VESA mount compatible. Its black, powder-coated structure combines a dual-display layout with horizontal slide adjustment and tilt up to 20 degrees.

Ideal Use Cases

The DST940 is suited to restaurant menu-board installations where two adjacent screens must present coordinated content, as well as airport applications identified by the manufacturer. Its 37-inch to 46-inch screen range makes it appropriate when a project calls for two flat panels of the supported size rather than a single central display. Because both screens share one ceiling-mounted structure and sit on the same plane, the system provides a unified arrangement for information, menus, or other visual messaging. The horizontal positioning and tilt capability help installers aim that messaging toward the intended viewing area.

Why Choose This Model

This model centers on alignment and adjustability. Rather than treating the displays as two unrelated mounting points, the spanning plate establishes a shared mounting plane. Easy-glide brackets allow the displays to slide horizontally, helping with side-by-side positioning after they are attached. Both displays can also tilt up to 20 degrees, so the final angle can be selected for the installation. Universal mount-pattern compatibility and VESA support cover patterns beginning at 100 x 100 and extending to 600 x 400. The result is a defined solution for supported dual-display ceiling installations.

Installation and Integration

Assembly is required. The package includes the Dual Display Ceiling Mount System, two PLCM-2 mounts, two EXT006 poles, an adaptor plate, two cross supports, two adaptor bracket sets, and assembly hardware. Installers should confirm that both flat panel displays fall within the stated 37-inch to 46-inch size range, that their mounting patterns are supported, and that the planned load is within the stated 75 lb to 150 lb capacity. Once installed, the easy-glide brackets provide horizontal movement for alignment, while tilt adjustment supports final viewing-angle placement. The ceiling-mountable assembly measures 67.50 inches wide, 18.54 inches high, and 4.86 inches deep.

Performance Highlights

The DST940 supports two displays and is built around controlled physical positioning rather than electronic processing. Its shared plate keeps the displays on one plane, the brackets permit horizontal adjustment, and the tilt function reaches up to 20 degrees. These features let the installer address spacing, alignment, and viewing angle within the mount’s documented limits. The black powder-coated finish gives the mounting structure its specified exterior treatment. For compatibility planning, the key limits are two flat panel displays, 37-inch to 46-inch screen support, 75 lb minimum and 150 lb maximum load capacities, and VESA-compatible 100 x 100 to 600 x 400 mounting patterns.

What Makes It Different

What distinguishes this model is the integrated side-by-side design. The DST940 does not simply list support for two displays; its long rear plate spans both, and its easy-glide attachment method is intended to support secure placement along with adjustment. Both displays can slide horizontally, allowing their relative positions to be refined on the common plane. The combination of shared alignment, universal pattern compatibility, ceiling mounting, and 20-degree tilt directly addresses the needs of paired signage installations. Its country of origin is listed as the United States, it complies with the Restriction of Hazardous Substances requirements, and it carries a five-year limited warranty.

Final Assessment

For installations that match its documented screen, load, and mounting-pattern ranges, the Peerless-AV DST940 offers a focused way to suspend two flat panels in a coordinated row. Its value lies in concrete mechanical features: a plate shared across both displays, easy-glide brackets, horizontal screen adjustment, and tilt up to 20 degrees. The supplied mounts, poles, supports, adaptor components, bracket sets, and hardware provide the listed system components for assembly. Restaurant menu-board and airport projects that require two supported displays on the same plane are the clearest fit for this model.
