Panasonic PT-LW335U 3100-Lumen WXGA 3LCD Projector

The Panasonic PT-LW335U is a compact WXGA 3LCD projector delivering 3100 lumens of brightness and a 16,000:1 contrast ratio, suitable for educational and business environments. Its native 1280 x 800 resolution supports widescreen content with crisp detail and accurate color reproduction. The projector’s lightweight design and quiet operation allow for flexible installation in small to medium-sized rooms. A range of connectivity options—including HDMI, VGA, USB, and LAN—enable compatibility with a wide variety of devices. The built-in 10W speaker provides integrated audio, and advanced features such as Daylight View Lite, corner keystone correction, and network control help ensure dependable performance across various scenarios. With up to 20,000 hours of lamp life in Eco mode, the PT-LW335U offers efficient long-term operation with minimal maintenance.

Product Features

• Brightness: 3100 ANSI lumens

• Resolution: WXGA (1280 x 800)

• Display Technology: 3LCD

• Contrast Ratio: 16,000:1

• Aspect Ratio: 16:10

• Speaker: Built-in 10W speaker

• Connectivity: HDMI, VGA, Composite, USB, LAN, Audio In/Out

• Keystone Correction: Vertical and horizontal (corner correction)

• Lamp Life: Up to 20,000 hours (Eco Mode)

• Network Control: Yes (via LAN/RS-232C)

Highlights

• The PT-LW335U delivers 3100 lumens of brightness with a high 16,000:1 contrast ratio, ensuring clear images and legible text in classroom and meeting room environments with ambient light.

• Its native WXGA resolution (1280 x 800) and 16:10 aspect ratio provide wide-format projection ideal for modern presentations, spreadsheets, and widescreen video playback without scaling distortion.

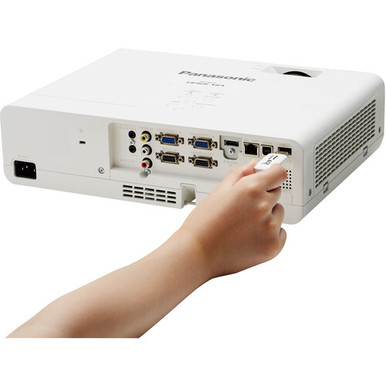

• Equipped with HDMI, VGA, USB, LAN, and composite video inputs, the projector supports seamless connectivity with computers, media players, and network systems for versatile usage scenarios.

• The built-in 10W speaker supports audio playback directly from the projector, reducing the need for external sound systems in standard educational or conference settings.

• With up to 20,000 hours of lamp life in Eco mode, the PT-LW335U minimizes maintenance interruptions and operating costs, making it suitable for continuous or scheduled projection use.

General Characteristics

• Model: Panasonic PT-LW335U

• Brightness: 3100 lumens

• Resolution: WXGA (1280 x 800)

• Contrast Ratio: 16,000:1

• Display Technology: 3LCD

• Aspect Ratio: 16:10

• Speaker: 10W mono

• Input Ports: HDMI, 2x VGA, Composite, Audio In

• Output Ports: VGA Out, Audio Out

• USB: USB Type-A (Memory Viewer), USB Type-B

• Network Control: RJ-45 LAN, RS-232C

• Keystone Correction: Vertical/Horizontal

• Lamp Life: Up to 20,000 hours (Eco)

• Dimensions: 12.3 x 3.6 x 8.9 in

• Weight: Approx. 6.6 lbs (3 kg)
