Panasonic MZ10KLWU Overview

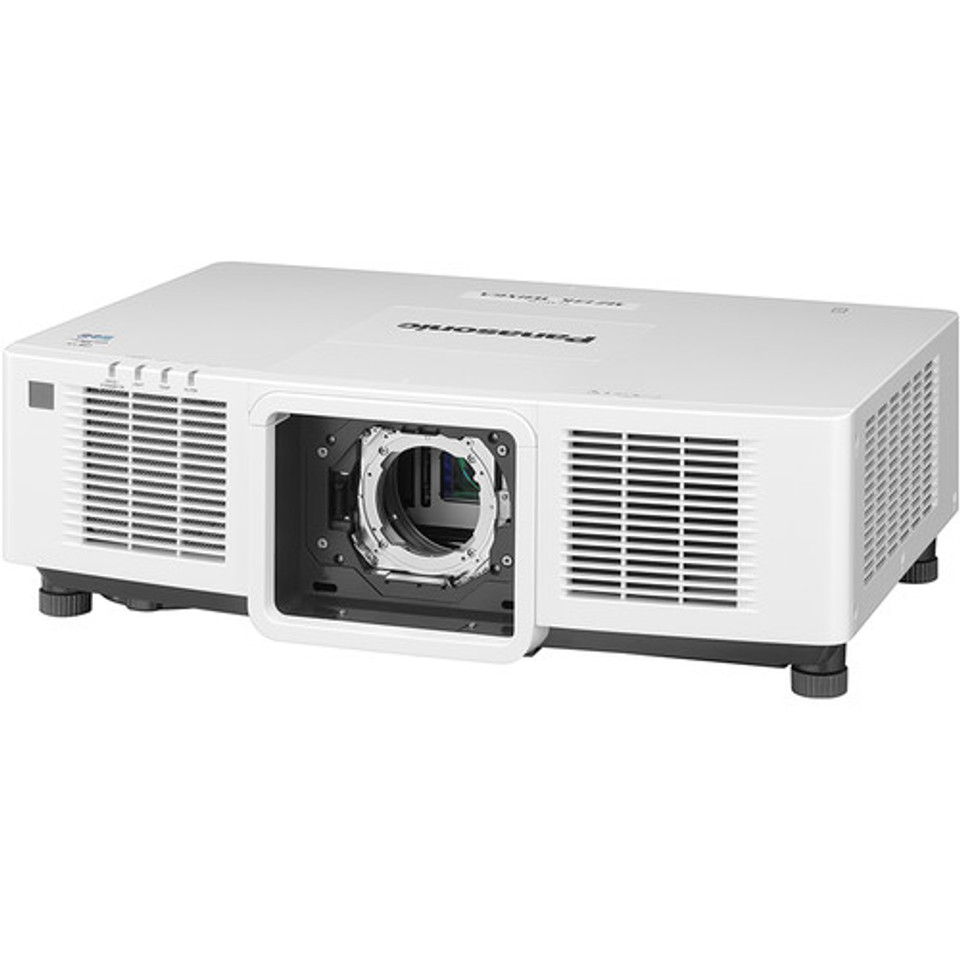

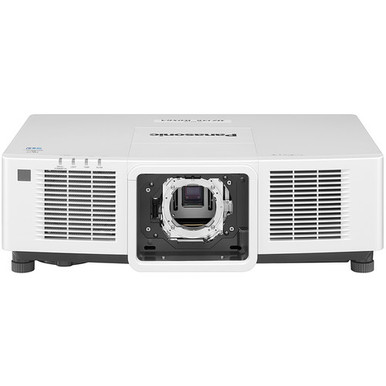

Project bright images in most settings with the white Panasonic PT-MZ10KLWU 10,000-Lumen WUXGA Laser 3LCD Projector. Its 10,000 lumens of brightness and 3,000,000:1 dynamic contrast ratio work together to overcome ambient light in most rooms and provide detail in dark areas of the image. It sports a 1920 x 1200 native resolution for viewing detailed video, pictures, and data. No lens is included with this projector; lenses with various throw and zoom ratios are required and are available separately.
The PT-MZ10KLWU features DIGITAL LINK via Ethernet, HDMI, DVI-D, and VGA inputs to connect to nearly any device; an 1/8" analog audio input and output enable audio to accompany your video via your sound system. The projector is controllable via Ethernet, DIGITAL LINK, or RS-232 with various control software options.
Key Features
- Brightness of 10,000 Lumens
- WUXGA (1920 x 1200) Native Resolution
- Separately Sold Lens Required
- DIGITAL LINK, HDMI, DVI, BNC, VGA Inputs
- Analog Audio Input and Output
- Ethernet and RS-232 Controllable
Designed for Pure Color, High Brightness, and Long-Life Operation
At up to 10,000 lumens, colors are vibrant in WUXGA resolution, aided further by the 1" LCD panels and Multi-Laser Drive Engine. A 4K/60p signal input and enhanced cooling system are also onboard.
Integrated Failover Circuitry
To help quickly resolve image maintenance issues, the projector's Multi-Laser Drive Engine has failover circuitry, a secondary backup signal input, and Information Monitor to show error information.
Interchangeable Lenses for Flexible Installations
The PT-MZ10KLWU is compatible with seven separately sold lenses to help provide flexible installation, which is expedited with Geo Pro software.
Panasonic MZ10KLWU Specs
Image Display
| Display System |
3-Chip 1" LCD |
| Native Chip Resolution |
1920 x 1200 (WUXGA) |
| Supported Resolutions |
Maximum: 4K UHD - 3840 x 2160 |
| Maximum Brightness |
10,000 Lumens |
| Aspect Ratio |
Native: 16:10 |
| Dynamic Contrast Ratio |
3,000,000:1 |
Lens
| Projection Size |
70 - 1000" / 1.78 - 25.40 m |
Features
| Ceiling Mountable |
Yes |
| Rear Screen Projection |
Yes |
| Projection Tilt Option |
Yes |
Input/Output Connectors
| Inputs/Outputs |
1 x HDBaseT (RJ45) Audio, Control, Data, LAN, Video
1 x 3G-SDI (3BNC) Video Input
1 x HDMI (HDMI Type-A) Audio, Video Input
1 x DVI-D Audio, Video Input
1 x VGA (DE-15/DB-15) Video Input
1 x Ethernet (RJ45) LAN
1 x RS-232 (DE-9/DB-9) Control Input
1 x RS-232 (DE-9/DB-9) Control Output
1 x M3 Control Input
1 x M3 Control Output
1 x DE-9/DB-9 Control Input
1 x USB 2.0 (USB Type-A) Power Output |
General
| Light Source |
Laser Phosphor |
| Expected Lamp Life |
Full Brightness: 20,000 Hours
Low Brightness: 24,000 Hours |
| Fan Noise |
Full Brightness: 35 dB
Low Brightness: 30 dB |
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz |
| Power Consumption |
Medium Brightness: < 640 W |
| Operating Temperature |
32 to 113°F / 0 to 45°C |
| Operating Humidity |
10 to 80% |
| Dimensions (W x H x D) |
25.6 x 7.3 x 17.3" / 650.0 x 185.0 x 440.0 mm With Legs at Shortest Position |
| Weight |
49.16 lb / 22.3 kg |
