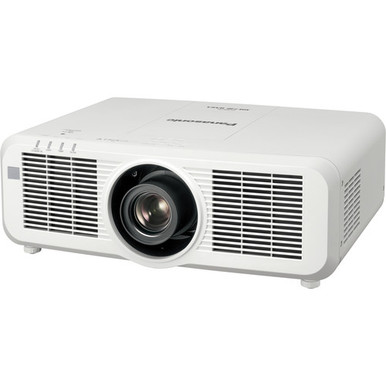

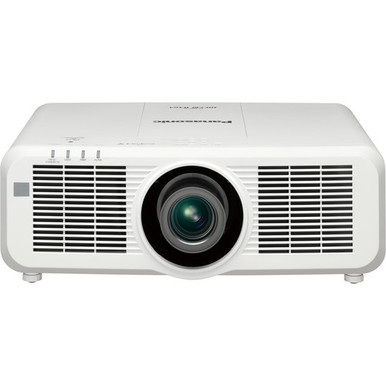

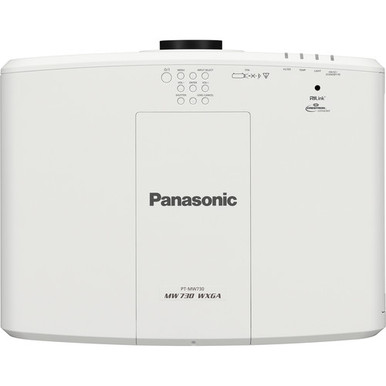

Panasonic PT-MW730U Overview
Brighten up your presentations with the PT-MW730U 8000-Lumen WXGA Laser LCD Projector from Panasonic. Boasting an 8000-lumen output and a 3,000,000:1 dynamic contrast, this projector is designed to overcome ambient light even in relatively bright rooms so that images are sharp and crisp all across. The projector’s 1280 x 800 WXGA native resolution enables you to display detailed video, pictures, and data. The preinstalled standard lens provides a 1.6 to 2.8:1 throw ratio, enabling placement and screen-size flexibility while ensuring focused images. Various interchangeable lenses are available separately for a variety of throw ratio choices.
The PT-MW730U features HDMI, BNC, and VGA ports for connectivity. The projector can be controlled via the included wireless/wired remote control, HDBaseT, or RS-232 with various control software options.
Compact and lightweight body, designed with ultra-low noise operation Wide range of collaboration technologies such as 5 GHz wireless projection from multiple devices, secure streaming and networking, PC-less presentation, and audio loop-through Ceiling, desk, auto, front/rear, or 360° installation IEEE802.11a/b/g/n wireless LAN Key Features
- Brightness of 8000 Lumens
- WXGA (1280 x 800) Native Resolution
- 1.6 to 2.8:1 Throw Ratio
- Various Optional Interchangeable Lenses
- 3,000,000:1 Dynamic Contrast Ratio
- HDMI, BNC & VGA Ports
- 360° Rotation-Capable
- Remote, HDBaseT & RS-232 Controllable
- 10W Built-In Speaker
Panasonic PT-MW730U Specs
Image Display
| Display System |
3-Chip 0.76″ LCD |
| Native Chip Resolution |
1280 x 800 (WXGA) |
| Supported Resolutions |
Maximum: WUXGA – 1920 x 1200 |
| Maximum Brightness |
8000 Lumens |
| Uniformity |
90% |
| Aspect Ratio |
Supported: 16:10 |
| Dynamic Contrast Ratio |
3,000,000:1 |
| Color Depth |
8-Bit (16.78 Million Colors) |
| Scan |
Horizontal: 15 to 91 kHz
Vertical: 24 to 100 Hz |
Lens
| Focus |
Manual Powered |
| Lens |
f/1.7 – 2.3 (f = 26.8 – 45.5 mm) |
| Lens Shift |
Vertical: ± 67%
Horizontal: ± 35% |
| Optical Zoom |
Powered: 1.6x |
| Throw Ratio |
1.6 to 2.8:1 |
| Projection Size |
40.16 – 400.00″ / 1.02 – 10.16 m |
Features
| Keystone Correction |
Vertical: ± 35°
Horizontal: ± 35° |
| Ceiling Mountable |
Yes |
| Rear Screen Projection |
Yes |
| Built-In Speaker |
Yes (Mono) |
| Speaker Power |
10W |
Input/Output Connectors
| Inputs/Outputs |
2 x HDMI (HDMI Type-A) Audio Input
1 x 5BNC Video Input
1 x VGA (DE-15/DB-15) Video Input
1 x Composite (RCA) Video Input
1 x VGA (DE-15/DB-15) Video Output
2 x M3 Audio Input
1 x 2RCA Audio Input
1 x M3 Audio Output
1 x RS-232 (DE-9/DB-9) Control Input
1 x DE-9/DB-9 Control, Remote Input
1 x M3 Control, Remote Input
1 x Ethernet (RJ45) LAN
1 x HDBaseT (RJ45) LAN
1 x USB 2.0 (USB Type-A) Control
1 x USB 2.0 (USB Type-A) Power Output |
Hardware
| Wireless LAN / Wi-Fi |
Yes, Built-in |
General
| Light Source |
Laser Phosphor |
| Expected Lamp Life |
Medium Brightness: 20,000 Hours |
| Fan Noise |
Full Brightness: 35 dB |
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz |
| Heat Dissipation |
Full Brightness: 1860 BTU |
| Power Consumption |
Full Brightness: 545 W
Standby Mode (Lamp Off): 0.5 W |
| Operating Humidity |
20 – 80% |
| Dimensions (W x H x D) |
22.1 x 8.1 x 17.4″ / 560.0 x 205.0 x 443.0 mm |
| Weight |
37.70 lb / 17.1 kg |
Packaging Info
| Package Weight |
50.05 lb |
| Box Dimensions (LxWxH) |
30 x 23.4 x 14″ |
