Display System 0.67″ DLP
Native Chip Resolution 1920 x 1200 (WUXGA)
Maximum Brightness 3500 Lumens (ISO)
Uniformity 90%
Aspect Ratio Native: 16:10
Dynamic Contrast Ratio 30,000:1, 30,000:1 Lens
Lens Shift Vertical: + 50%
Optical Zoom Manual: 1.3x
Throw Ratio 1.28 to 1.69:1
Projection Size 40 – 300″ / 101.60 – 762.00 cm
Keystone Correction Vertical: 30
Ceiling Mountable Yes
Rear Screen Projection Yes
Built-In Speaker Yes (Mono)
Speaker Power 10W
Projection Tilt Option Yes
Inputs/Outputs 2 x HDMI (HDMI Type-A) Audio, Video Input 2 x VGA (DE-15/DB-15) Video Input 1 x VGA (DE-15/DB-15) Video Output 1 x Composite (RCA) Video Input 2 x 1/8″ / 3.5 mm Mini Audio Input 1 x 1/8″ / 3.5 mm Mini Audio Output 1 x Ethernet (RJ45) LAN 1 x RS-232 (DE-9/DB-9) Control Input 1 x USB 2.0 (USB Type-A) Power Output 1 x USB 2.0 (Micro-USB) Service Input
HDCP Support Version 1.4
Wireless LAN / Wi-Fi None
Light Source LED
Expected Lamp Life Full Brightness: 20,000 Hours
Fan Noise Full Brightness: 35 dB Medium Brightness: 27 dB Low Brightness: 24 dB
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption Full Brightness: 420 W Medium Brightness: 255 W Low Brightness: 196 W
Operating Altitude 0.00 to 13,779′ / 0 to 4200 m
Operating Temperature 32 to 104 F / 0 to 40 C
Operating Humidity 20 to 80%
Dimensions (W x H x D) 14.8 x 4.9 x 12.4″ / 375.0 x 124.0 x 314.0 mm Including Protrusions
Weight 14.8 lb / 6.71 kg
Package Weight 18.875 lb
Box Dimensions (LxWxH) 22.1 x 17.7 x 9.6″

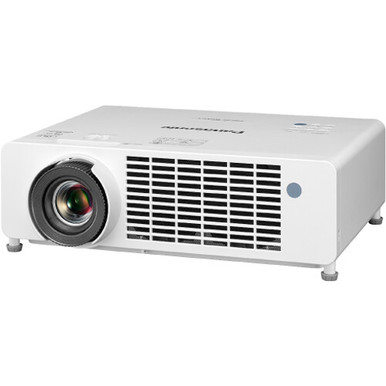

The PT-LRZ35U features composite video, two HDMI, and two VGA inputs to connect to nearly any device. The VGA output lets you daisy-chain multiple projectors or displays to show the same content in various places. The projector is controllable via PJLink via Ethernet or RS-232 with various control software options. Key Features
Brightness of 3500 Lumens WUXGA (1920 x 1200) Native Resolution
Brightness of 3500 Lumens Composite Video, 2x HDMI, 2x VGA Inputs
VGA Output for Loop-Through Analog Audio Input and Output Integrated 10-Watt Speaker
Discrete R/G/B LED Light Sources Separate red, green, and blue LEDs help the projector reproduce color with enhanced fidelity to produce vibrant images in compact rooms or open spaces, making it suitable for use in work or learning environments where small groups collaborate. The projector doesn’t employ a phosphor or color wheel, further enhancing image quality.
Auto Power-On via HDMI-CEC
The PT-LRZ35U can power on automatically when used with an HDMI-CEC-compatible source device. They start projecting immediately and can be switched off without cooldown thanks to the Instant On/Off function. A built-in USB port can power your streaming module, reducing cable clutter. Up to 20,000-Hour Operation
Discrete R/G/B LED Light Sources The LED light source is designed to last up to 20,000 hours. The projector’s filter-free design with a sealed optical unit and dust-resistant cabinet further help extend its life. Additional Features Rated for 24/7 use 2-axis 360 installation
PJLink-compatible Ethernet port
Discrete R/G/B LED Light Sources Compatible with Multi Monitoring & Control Software and Early Warning Software 3D-capable Molded plastic cabinet Panasonic LRZ35U Specs Image Display Display System 0.67″ DLP
Discrete R/G/B LED Light Sources Native Chip Resolution 1920 x 1200 (WUXGA) Maximum Brightness 3500 Lumens (ISO) Uniformity 90%
Aspect Ratio Native 16:10
Lens Shift Vertical + 50% Optical Zoom
Lens Shift Manual 1.3x
Lens Shift Throw Ratio 1.28 to 1.69:1
Projection Size 40 300″ / 101.60 – 762.00 cm Features Keystone Correction
Projection Size Vertical 30 Ceiling Mountable Yes Rear Screen Projection Yes Built-In Speaker Yes (Mono) Speaker Power 10W
2 x HDMI (HDMI Type-A) Audio, Video Input
Input/Output Connectors Inputs/Outputs 2 x VGA (DE-15/DB-15) Video Input
Input/Output Connectors Inputs/Outputs 1 x VGA (DE-15/DB-15) Video Output
1 x Composite (RCA) Video Input 2 x 1/8″ / 3.5 mm Mini Audio Input 1 x 1/8″ / 3.5 mm Mini Audio Output
1 x Ethernet (RJ45) LAN 1 x RS-232 (DE-9/DB-9) Control Input
1 x USB 2.0 (USB Type-A) Power Output, 2.0 (Micro-USB) Service Input HDCP Support Version 1.4 Hardware
Input/Output Connectors Inputs/Outputs Wireless LAN / Wi-Fi None General Light Source LED Expected Lamp Life
Input/Output Connectors Inputs/Outputs Full Brightness 20,000 Hours
Fan Noise Full Brightness 35 dB
Fan Noise Medium Brightness 27 dB
Fan Noise Low Brightness 24 dB
Fan Noise AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption Full Brightness 420 W
Power Consumption Medium Brightness 255 W
Power Consumption Low Brightness 196 W
Power Consumption Operating Altitude 0.00 to 13,779′ / 0 to 4200 m, Humidity 20 to 80%
Power Consumption Operating Temperature 32 to 104 F / 0 to 40 C
Power Consumption Dimensions (W x H x D) 14.8 x 4.9 x 12.4″ / 375.0 x 124.0 x 314.0 mm Including Protrusions Weight 14.8 lb / 6.71 kg Packaging Info Package Weight 18.875 lb
Power Consumption Box Dimensions (LxWxH) 22.1 x 17.7 x 9.6″
SKU PT-LRZ35U
