Panasonic EQ1U Overview

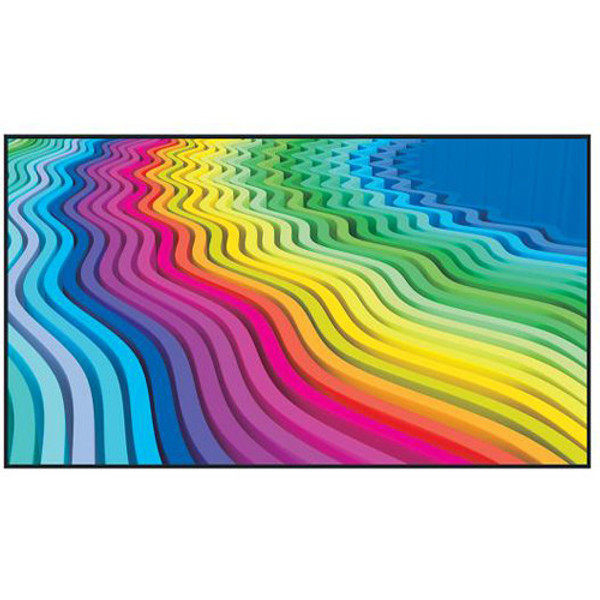

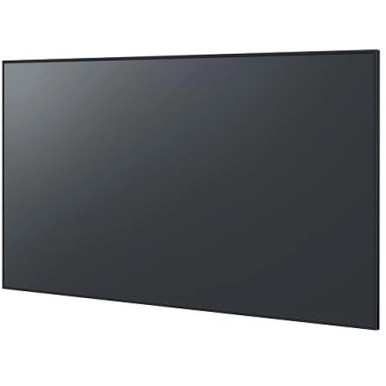

The EQ1 Series 43" 4K UHD Commercial LED Display from Panasonic supports video at resolutions up to 3840 x 2160. It features a brightness of 350 cd/m², a 4000:1 contrast ratio, and supports 178° horizontal and vertical viewing angles. There are HDMI, 3.5mm, DVI-D, and VGA ports for connectivity as well as RS-232 and IR interfaces for control. You can synchronize playback on multiple displays via the RJ45 Ethernet and USB 3.0 ports. This display has two 10W built-in speakers and is 200 x 200mm VESA mounting compatible.
- USB media player port
- Use USB memory stick (available separately) to operate self-made signage
- Display complicated drawings or detailed materials in an easy-to-read manner
- Images of materials can be refreshed in real-time during a conference
- Slim design
- Failover and Failback safeguards for mission critical situations
- Use the remote control to edit the playlist without a PC
- Timer-programmable switching of device connection
- SNMP version 1-3 compatible
- Content Management Software for PC version 3.2 enables easy playlist creation with media support including combinations of still and video images
- Multi-monitoring and control software
- 18 hours a day operating time
- Supports CEC over HDMI
Key Features
- 4K UHD 3840 x 2160 Resolution
- 350 cd/m² Brightness
- 4000:1 Contrast Ratio
- 178° Viewing Angles
- HDMI, 3.5mm, DVI-D & VGA Ports
- RS-232 & IR Control
- RJ45 Ethernet Port
- USB 3.0 Port
- Two 10W Speakers
- 200 x 200mm VESA Mounting
Panasonic EQ1U Specs
Display
| Screen Size (Diagonal) | 43" |
| Resolution | 3840 x 2160 |
| Panel Type | VA LCD |
| Brightness | 350 cd/m² (Typical) |
| Viewing Angle (H x V) | 178 x 178° |
| Screen Area | 37.05 x 20.83" / 941 x 529 mm |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 4000:1 |
| Response Time | 8 ms (GtG) |
| Pixels Per Inch (ppi) | 102 ppi |
Connectivity
| Primary Connectivity Location | Display |
| Input Ports | 2 x HDMI Video 1 x 1/8" / 3.5 mm Video 1 x DVI-D Video 1 x VGA 15-Pin Video |
| Output Ports | 1 x 1/8" / 3.5 mm – Audio |
| USB Ports | 1 x USB (Version Unspecified) Type-A - Service |
| Ethernet Ports | 1 |
| Control | IR via 1/8" / 3.5 mm Input IR via 1/8" / 3.5 mm Output RS-232C via DE-9/DB-9 Input |
| Other I/O | 1 x 1/8" / 3.5 mm IR Input 1 x 1/8" / 3.5 mm IR Output 1 x RS-232C Control Input |
| Digital Media Slot | None |
General
| HDCP Support | Yes, Version 2.2 |
Audio
| Built-In Speakers | Yes, 2 x 10 W |
Electrical
| Power Consumption | Operational: 162.0 W Standby: 0.5 W |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 20 to 80% |
| Operating Altitude | 4593.18 to 9186' / 1400 to 2800 m |
Physical
| Wall Mounting | 200 x 200 mm |
| Bezel Thickness | 11.9 mm (Right/Top/Left) 14.9 mm (Bottom) |
| Dimensions | 38.1 x 22.1 x 2.4" / 969.0 x 560.0 x 61.0 mm |
| Weight | 19.84 lb / 9 kg |
Packaging Info
| Package Weight | 25.15 lb |
| Box Dimensions (LxWxH) | 41.5 x 27 x 6.25" |
1 Year Parts & Labor Manufacture Warranty
