Quad Pixel Drive 2-axis pixel-quadrupling technology creates detailed 4K images retaining natural sharpness and clarity, while Rich Color Enhancer produces vivid, accurate colors. High-speed 240 Hz processing creates smooth, grid-less images while supporting up to 240 Hz/1080p frame rates with a minimal latency of 8 ms or less.

• Exceptionally smooth and detailed 4K image quality
• Flexible, simple to use, and easy to integrate
• Highly reliable low maintenance projection

Brightness                      5,200 ANSI Lumens

Resolution                       1920×1080   4K w/pixel shifting

Aspect Ratio                    16:9 (HD)

Contrast                           20,000:1 (full on/off)

Display Type                     0.65″ DLP x 1

Video Modes                     720p, 1080i, 1080p/60, 1080p/24, 1080p/25, 1080p/30, 1080p/50, 2160p/60, 576p, 3840p/24, 480p

Data Modes                       MAX 3840×2160

Lamp Type                         Laser Phosphor

Lamp Life                           20,000 hours  / 24,000 hours (Eco)

Included Lens                    2x manual zoom , manual focus

Optional Lenses                  No

Lens Shift                           Horizontal +34% / -27% & Vertical +71% / -49%

Throw Distance                  8.5′ – 31.6′

Image Size                         40.08″ – 300.05″

Throw Ratio                       1.45:1 – 2.92:1 (D:W)

Digital Keystone                  Horizontal & Vertical

Projector Size                      6.61″ x 19.61″ x 19.37″ (HxWxD)

Weight                                 36.4 lbs

Audible Noise                       35 dB  / 28 dB (Eco)

Internal Speakers                 No

Power                                   100V – 240V

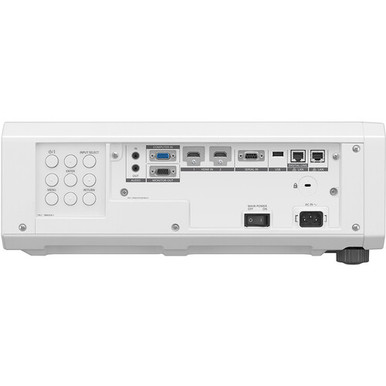

Connection Panel

Audio In: Mini Jack x 2

Audio In: RCA

Audio Out: Mini Jack

HDBaseT: RJ-45

HDMI 2.3 (HDCP) x 2

Network: RJ-45

RS232: DB-9pin

USB

VGA In: Dsub-15pin

VGA Out: Dsub-15pin

Features

Edge Blending

Geometric Correction
