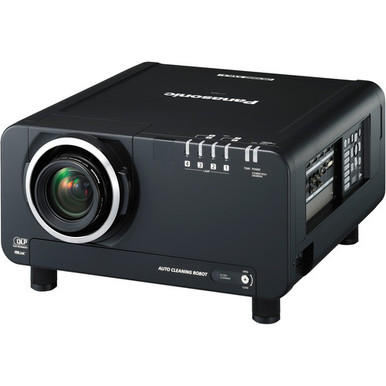

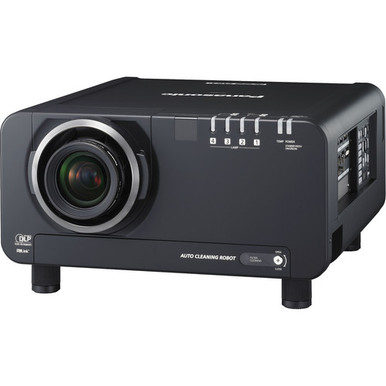

Panasonic PT-D12000U Overview
The D12000U from Panasonic is a 12,000 lumen three-chip DLP projector for displaying large venue and staging solutions such as, commercial digital cinema, higher education, corporate and digital advertising customers.
The D12000U (1400 x 1050) offers state-of-the-art projection with professional quality viewing for hours of extended use. The D12000U comes equipped with the Auto Cleaning Robot, an automatic filter cleaning system that enables about 2,000 hours of use without filter maintenance. The liquid-cooling system, directly cools the DLP chips and allows both models to be used in temperatures up to 45°C (113°F), enabling their use in a wider variety of environments. With Panasonic’s original four-lamp system, both 12,000 lumen projectors feature a lamp replacement cycle. If one lamp burns out during operation, the lamp relay mode allows the remaining lamps to provide plenty of light to continue projecting.
The D12000U supports PJLink protocol can be connected to a wired LAN connection, allowing remote control, monitoring, and e-mail alert messaging functions through Web browser. Temperature alarm and burnt-lamp LEDs are also included on each projector, letting operators know exactly where to address maintenance issues.
Lens Not Included!
- 3-Chip DLP Projector with SXGA+ resolution offers intricate, lifelike detail but does not support HD
- Exclusive to Panasonic, the Detail Clarity Processor produces pictures with a more natural, three-dimensional appearance
- he Geometric Adjustment feature lets you project onto spherical, cylindrical and other specially shaped screens using just the remote control, with no external equipment needed
- The liquid cooling system circulates a cooling liquid behind the DLP chips to absorb heat, allowing operation within a wide ambient temperature range and reducing operating noise
- Compensate for bright environments with the System Daylight View feature so that images are crisp, clear and easy to see no matter what the condition
- Reproduces deeper, richer blacks and achieves a remarkable 5,000:1 contrast with Dynamic Iris
- The Auto Cleaning Robot helps prevent clogs that can impair operation or cause malfunction by automatically clearing away any dust adhering to the air filter
Key Features
- 4:3 Aspect Ratio
- 1400 x 1050 Native Resolution
- The PT-D12000U does not support HD
- 12,000 Lumens
- 5,000:1 Contrast
- Detail Clarity Processor
- Geometric Adjustment
- Auto-Cleaning Robot
- Liquid Cooling System
- 4-Lamp Optical System
- Operate remotely over a LAN network with the Web browser and multi-projector monitoring and control software
- Adjust the optical axis vertically and horizontally by a remote control for greater setup ease and flexibility
Despite its 12,000-lumen brightness, the projector weighs only 77 lbs and runs on ordinary 120-VAC power
Panasonic PT-D12000U Specs
Image Display
| Display System |
-Chip 0.95″ DLP |
| Native Chip Resolution |
1400 x 1050 |
| Maximum Brightness |
12,000 Lumens |
| Aspect Ratio |
4:3 |
| DLP Link 3D |
None |
Lens
| Projection Size |
70 – 600″ / 1778.00 – 15240.00 mm |
Features
| Keystone Correction |
Vertical: ± 40° |
| Ceiling Mountable |
Yes |
| Rear Screen Projection |
Yes |
General
| Lamp Power |
300 W |
| Power Consumption |
Medium Brightness: 1600 W
Standby Mode (Lamp Off): 15 W |
| Dimensions (W x H x D) |
12.6 x 22.8 x 25.3″ / 32.0 x 57.9 x 64.3 cm |
