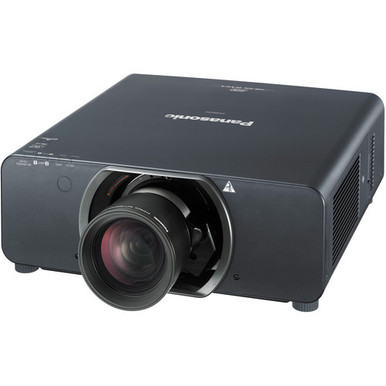

Panasonic PT-DW11KU 3D HD 720p DLP Projector

Panasonic PT-DW11KU Overview

The Panasonic PT-DW11KU 3-Chip DLP Projector features a dual-lamp system that produces stunning images at 11,000 lumens of brightness.

The wide adjustment range of the powered horizontal/vertical lens shift function can be easily adjusted with the remote control. The unit can also be rotated 360° vertically, to accommodate various installation conditions. The lens-centered design contributes to easy installation.

The Eco Filter has an electrostatic Micro Cut Filter that collects minute dust particles with an ion effect. It combines with the dust-resistant cabinet to enable long-term use even under harsh conditions. Its maintenance cycle of up to 12,000 hours reduces hassle, and the environmental design lets you wash the filter with water and reuse it.

The Dynamic Iris uses a scene-linking aperture mechanism to achieve a contrast ratio of 10,000:1, without lowering its brightness. This helps to reproduce deeper, richer blacks, and provides images with more detailed textures. When in Lamp Relay mode, the projector eliminates any interruptions if a lamp should fail, and enables 24/7 projection.

This projector is compatible with both passive and active 3D projection systems. It combines with either a separate, external 100/120/144 Hz drive with IR emitter and active shutter glasses, or an active filter and passive glasses, for viewing 3D images.

This projector can be easily operated remotely over a LAN network, because it is all done using the computer's familiar web browser. Furthermore, the projector sends an e-mail message notify the operator when an error has needs to be replaced.

Key Features

• Brightness of 11,000 Lumens
• WXGA (1366 x 768) Resolution
• 10,000:1 Contrast Ratio
• Active 3D Projection Capability
• Detail Clarity Processor 3
• DICOM Simulation Mode
• Dual Lamp System
• 12,000 Hour Eco Filter
• HDMI x 1
• Ethernet x 1

Compact Yet Bright

Dual-lamp system with a 380 W lamp helps make the body compact, while providing a full 11,000 lumens of brightness with 120 VAC operation. The projector cannot be operated continuously 24 hours a day / 7 days a week in dual-lamp mode. Use the dual-lamp optical system's alternating lamp operation (lamp changer) function

WXGA Resolution

With a native WXGA resolution, the projector reproduces detailed images

Dynamic Iris for a High 10,000:1 Contrast Ratio

Panasonic's Dynamic Iris uses a scene-linking aperture mechanism to achieve 10,000:1 contrast without lowering its brightness. This helps to reproduce deeper, richer blacks, and provides images with more detailed textures

Active 3D Projection Capability

This projector is compatible with both passive and active 3D projection systems. It combines with either a separate, external 100/120/144 Hz drive with IR emitter and active shutter glasses, or an active filter and passive glasses, for viewing 3D images

Detail Clarity Processor 3

This Panasonic circuit optimizes the sharpness of each image, based on the frequency components of the extracted image information. The resulting images have more natural, lifelike expressions

System Daylight View 2 for Enhanced Color Perception

This technology optimizes image quality to improve the color perception of the projected image in bright rooms. With a brightness of 12,000 lumens, it provides highly comfortable viewing even in bright lighting, and allows viewers to concentrate easily on the images

Dual Lamp System

This system eliminates the interruption if a lamp should fail (in dual-lamp operation mode). The Lamp Relay mode also operates the lamps alternately to enable 24/7 projection

DICOM Simulation Mode

This imaging mode is similar to DICOM part 14, which is a medical imaging standard. It reproduces X-ray images with remarkable clarity. This product is not a medical instrument. Do not use it for actual medical diagnosis

Waveform Monitor Function

When the output level of the source device fluctuates due to the performance of the device or its cable connections, the original black and white levels of the image content cannot be reproduced correctly. With this projector you can view the waveforms on the screen and adjust the settings either automatically or manually as you prefer

Rec. 709 Mode for HDTV Projection

Optimal color reproduction can be achieved by selecting this mode, compliant with ITU-R Recommendation BT.709, when images from an HDTV source are projected

Eco Filter that Needs No Maintenance for up to 12,000 Hours

The Eco Filter has an electrostatic Micro Cut Filter that collects minute dust particles with an ion effect. It combines with the dust-resistant cabinet to enable long-term use even under harsh conditions. Its maintenance cycle of up to 12,000 hours reduces hassle, and the environmental design lets you wash the filter with water and reuse it. The usage environment affects the filter maintenance cycle

Low TCO and an Environmentally Friendly Design

This projector lowers the total cost of ownership because they have a lamp replacement cycle of up to 2500 hours. Their environmentally friendly design also includes a low power consumption of 980W

Easy Lamp Replacement

For easier maintenance, you can replace the lamp from the rear. This makes it easy to replace a lamp unit while the projector is still in the mounting bracket or dual stacked

Optional Smoke Cut Filter ET-SFD320

The projector can be equipped with an optional, extra-strong air filter to prevent the entry of smoke, such as those used for special effects at events and stage performances

Flexible Installation

The wide adjustment range of the powered horizontal/vertical lens shift function can be easily adjusted with the remote control. The unit can also be rotated 360° vertically, to accommodate various installation conditions. The lens-centered design contributes to easy installation

Lens Memory

The settings of projection size, lens shift position, and focus/zoom can be stored in memory and recalled for instant switching

Wide Selection of Optional Lenses

Choose from a wide lineup of lenses for your system, including short-throw, long-throw zoom and fixed-throw lenses for rear projection use. The additional lenses make it easy to adapt your projector to the installation site. The lenses attach and detach with one-touch ease

Crestron RoomView

The LAN terminal allows a computer connected to the network to use Crestron RoomView application software to manage and control system devices

Multi-Unit Brightness Control

This function automatically corrects the brightness fluctuations that occur over time in the individual projectors of a multi-screen system. Up to 8 projectors can be controlled by connecting to each other via a hub, and this can be increased to a maximum of 2,048 projectors by using Multi Projector Monitoring & Control Software Ver. 2.8

Multi-Screen Support System Seamlessly Connects Multiple Screens

Edge Blending: The edges of adjacent screens can be blended and their luminance controlled

Color Matching: This function corrects for slight variations in the color reproduction range of individual projectors. The PC software assures easy, accurate control

Multi-Screen Processor: This projector can project large, multi-screen images without any additional equipment. Up to 100 units can be edge blended at a time

Optional Portrait Mode Capability

Portrait projection is possible by mounting the optional ET-LAD320P or ET-LAD320PW lamp units, updating the projector's firmware to MAIN Ver. 2.00 or later, and installing the projector with its terminal side surface facing downward

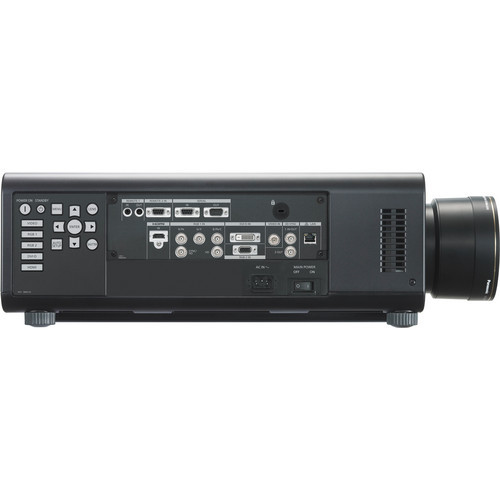

Multiple Terminals with HD-SDI Compatibility

This projector has an array of terminals, including two SDI (Dual Link HD-SDI, 3D sync, DVI-D, and HDMI terminals

Multi Projector Monitoring and Control Software Ver. 2.8

Panasonic's original Multi Projector Monitoring and Control Software Ver. 2.8 freeware lets you control and monitor multiple projectors at the same time over a wired LAN. If a problem occurs, an alarm message is sent to the monitoring/controlling PC

Web Browser Control

This projector can be easily operated remotely over a LAN network, because it is all done using the computer's familiar web browser. Furthermore, the projector sends an e-mail message notify the operator when an error has needs to be replaced

Miscellaneous Features

• PJLink compatibility
• P-in-P function
• Mechanical lens shutter with fade in/out effect
• Scheduling function
• Direct power off
• 98.4’ (30 m) long-range wireless remote control with LED backlight
• Anti-theft features with chain opening
• Control device setup function
• ID assignment for up to 64 units
• Built-in test pattern
• Selectable 10-language on-screen menu (English, German, French, Spanish, Italian, Portuguese, Russian, Japanese, Chinese, Korean)
• RoHS Directive compliant 3D color management system
• Full 10-bit image processing
• Progressive cinema scan (3:2 pulldown)
• Dynamic sharpness control
• Digital noise reduction
• IP conversion
• AI scene control
• 2:2 pulldown mode
• sRGB compatibility
• Fine-adjustable color temperature
• No halogenated flame retardants are used in the cabinet
• Lead-free solder is used to mount components to the printed circuit boards
• Stand-by power consumption of only 0.3W (0.2W for 120VAC) with the standby mode set to ECO
• Auto Power Save activates standby mode when no signal is input

Panasonic PT-DW11KU Specs

Image Display

Display System	3-Chip 0.85" DLP
Native Chip Resolution	1366 x 768 (WXGA)
Supported Resolutions	VGA - 640 x 480 WUXGA - 1920 x 1200
Maximum Brightness	11,000 Lumens
Uniformity	90%
Offset	None
Aspect Ratio	Native: 16:9
DLP Link 3D	Yes
Scan	Horizontal: 15 to 100 kHz Vertical: 24 to 120 Hz

Features

Keystone Correction	Vertical: ± 40°
Ceiling Mountable	Yes
Rear Screen Projection	Yes

Input/Output Connectors

Internal Storage

None

General

Light Source	Lamp (2 x UHM)
Lamp Power	380 W
Expected Lamp Life	Full Brightness: 2500 Hours
Fan Noise	Full Brightness: 45 dB Medium Brightness: 43 dB Low Brightness: 37 dB
Supported Languages	English French German Italian Japanese Korean Portuguese Russian Spanish Traditional Chinese
Heat Dissipation	3345 BTU (AC 0 to 120V) 3242 BTU (AC 220 to 240V)
Power Consumption	Full Brightness: 980 W Standby Mode (Lamp Off): 6 W
Dimensions (W x H x D)	20.9 x 7.9 x 21.6" / 530.9 x 200.7 x 548.6 mm Optional Lens Not Included
