Display System 3-Chip 1″ LCD
Native Chip Resolution 1920 x 1200 (WUXGA)
Supported Resolutions Maximum: 4K UHD – 3840 x 2160
Maximum Brightness 10,000 Lumens
Aspect Ratio Native: 16:10
Dynamic Contrast Ratio 3,000,000:1, 3,000,000:1 Lens
Projection Size 70 – 1000″ / 1.78 – 25.40 m
Ceiling Mountable Yes
Rear Screen Projection Yes
Projection Tilt Option Yes
Inputs/Outputs 1 x HDBaseT (RJ45) Audio, Control, Data, LAN, Video 1 x 3G-SDI (3BNC) Video Input 1 x HDMI (HDMI Type-A) Audio, Video Input 1 x DVI-D Audio, Video Input 1 x VGA (DE-15/DB-15) Video Input 1 x Ethernet (RJ45) LAN 1 x RS-232 (DE-9/DB-9) Control Input 1 x RS-232 (DE-9/DB-9) Control Output 1 x M3 Control Input 1 x M3 Control Output 1 x DE-9/DB-9 Control Input 1 x USB 2.0 (USB Type-A) Power Output
Light Source Laser Phosphor
Expected Lamp Life Full Brightness: 20,000 Hours Low Brightness: 24,000 Hours
Fan Noise Full Brightness: 35 dB Low Brightness: 30 dB
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption Medium Brightness: 640 W
Operating Temperature 32 to 113 F / 0 to 45 C
Operating Humidity 10 to 80%
Dimensions (W x H x D) 25.6 x 7.3 x 17.3″ / 650.0 x 185.0 x 440.0 mm With Legs at Shortest Position
Weight 49.16 lb / 22.3 kg

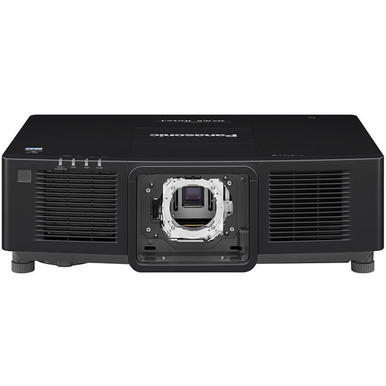

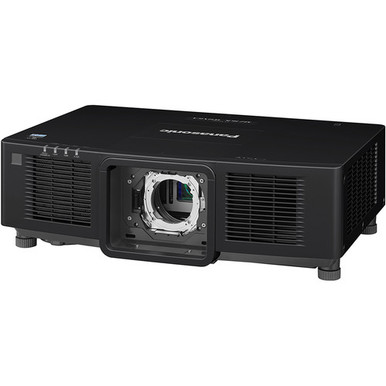

The PT-MZ10KLBU features DIGITAL LINK via Ethernet, HDMI, DVI-D, and VGA inputs to connect to nearly any device; an 1/8″ analog audio input and output enable audio to accompany your video via your s, is compatible with seven separately sold lenses to help provide flexible installation, which is expedited with Geo Pro software. Panasonic MZ10KLBU Specs Image Display Display System 3-Chip 1″ LCD
Panasonic MZ10KLBU Overview Brightness of 10,000 Lumens
Panasonic MZ10KLBU Overview WUXGA (1920 x 1200) Native Resolution
DIGITAL LINK, HDMI, DVI, BNC, VGA Inputs
Designed for Pure Color, High Brightness, and Long-Life Oper ation At up to 10,000 lumens, colors are vibrant in WUXGA resolution, aided further by the 1″ LCD panels and Multi-Laser Drive Engine. A 4K/60p signal input and enhanced cooling system are also onboard.
Ethernet and RS-232 Controllable Integrated Failover Circuitry To help quickly resolve image maintenance issues, the projector’s Multi-Laser Drive Engine has failover circuitry, a secondary backup signal input, and Information Monitor to show error information.
Ethernet and RS-232 Controllable Interchangeable Lenses for Flexible Installations
Ethernet and RS-232 Controllable Native Chip Resolution 1920 x 1200 (WUXGA) Supported Resolutions
Ethernet and RS-232 Controllable Maximum 4K UHD – 3840 x 2160 Maximum Brightness 10,000 Lumens
Aspect Ratio Native 16:10
Projection Size 70 1000″ / 1.78 – 25.40 m Features Ceiling Mountable Yes Rear Screen Projection Yes
1 x HDBaseT (RJ45) Audio, Control, Data, LAN, Video
Input/Output Connectors Inputs/Outputs 1 x 3G-SDI (3BNC) Video Input, x VGA (DE-15/DB-15) Video Input
1 x HDMI (HDMI Type-A) Audio, Video Input
1 x DVI-D Audio, Video Input
1 x Ethernet (RJ45) LAN 1 x RS-232 (DE-9/DB-9) Control Input 1 x RS-232 (DE-9/DB-9) Control Output 1 x M3 Control Input 1 x M3 Control Output 1 x DE-9/DB-9 Control Input
1 x USB 2.0 (USB Type-A) Power Output General Light Source Laser Phosphor Expected Lamp Life
Input/Output Connectors Inputs/Outputs Full Brightness 20,000 Hours
Input/Output Connectors Inputs/Outputs Low Brightness 24,000 Hours
Fan Noise Full Brightness 35 dB
Fan Noise Low Brightness 30 dB
Fan Noise AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption Medium Brightness 640 W
Power Consumption Operating Temperature 32 to 113 F / 0 to 45 C
Power Consumption Operating Humidity 10 to 80%
Power Consumption Dimensions (W x H x D) 25.6 x 7.3 x 17.3″ / 650.0 x 185.0 x 440.0 mm With Legs at Shortest Position Weight 49.16 lb / 22.3 kg
SKU PT-MZ10KLBU
