Panasonic RZ21KU Overview

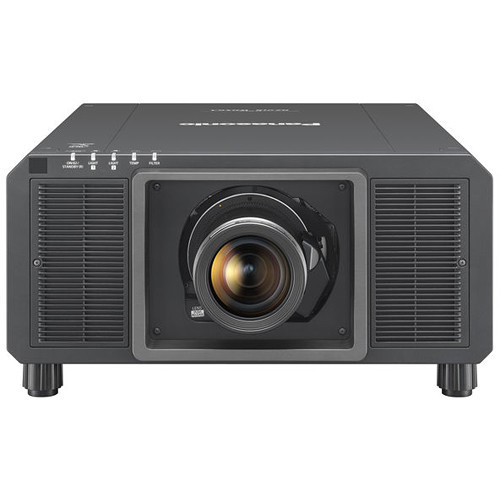

The 21,000-Lumen WUXGA DLP Projector from Panasonic features a SOLID SHINE laser phosphor technology with 3-chip DLP. With brightness of up to 21,000 lumens, the projector delivers bright and detailed picture quality. It features an efficient cooling system for stable operation and long life. Furthermore, the detail clarity processor clarifies and enhances fine details with an advanced processing algorithm. Digital link supports transmission of uncompressed Full HD video, audio, and control commands through a single LAN cable. The dust-resistant, filterless design features hermetically sealed laser modules. The projector provides 20,000 hours of maintenance-free projection.
- 3-chip DLP with SOLID SHINE laser phosphor technology
- Brightness of up to 21,000 lumens and 20,000:1 contrast ratio
- Efficient cooling system for stable operation and long life
- Dynamic contrast laser light-source modulation achieves high contrast
- Detail clarity processor clarifies and enhances fine details with advanced processing algorithm
- Daylight view function improves color perception in bright environments and in mapping applications
- DIGITAL LINK supports transmission of uncompressed Full HD video and control commands through single LAN cable
- Multi-screen support system merges multiple screens
- Multi-unit brightness and color control
- 6,912,000 (3 x 1920 x 1200) pixels
- Refresh rate 120 Hz
- Applicable Software: Logo transfer software, multi monitoring and control software, early warning software, geometry manager pro, smart projector control
SD-SDI: SMPTE ST 259 compliant, [YCBCR 4:2:2 10-bit] 480/60i, 576/50i
HD-SDI: SMPTE ST 292 compliant, [YPBPR 4:2:2 10-bit] 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/25p, 1080/24p, 1080/24sF, 1080/30p
Dual-Link HD-SDI: SMPTE ST 372 compliant, [YPBPR 4:2:2 10-bit] 1080/50p, 1080/60p [RGB 4:4:4 12-bit/10-bit] 1080/60i, 1080/50i, 1080/25p, 1080/24p, 1080/24sF, 1080/30p, 2048 x 1080/24p, [X'Y'Z' 4:4:4 12-bit] 2048 x 1080/24p
3G-SDI: SMPTE ST 424 compliant, [RGB 4:4:4 12-bit/10-bit] 1080/60i, 1080/50i, 1080/25p, 1080/24p, 1080/24sF, 1080/30p, 2048 x 1080/24p, 2048 x 1080/25p, 2048 x 1080/30p, [YPBPR 4:2:2 10-bit] 1080/60p, 1080/50p, 2048 x 1080/48p, 2048 x 1080/50p, 2048 x 1080/60p, [X'Y'Z' 4:4:4 12-bit] 2048 x 1080/24p, 2048 x 1080/25p, 2048 x 1080/30p
Dual-link 3G-SDI: SMPTE ST 425 compliant, [YPBPR 4:4:4 12-bit/10-bit] 1080/60p, 1080/50p, 2048 x 1080/60p, 2048 x 1080/50p, 2048 x 1080/48p, [RGB 4:4:4 12-bit/10-bit] 1080/60p, 1080/50p, 2048 x 1080/60p, 2048 x 1080/50p, 2048 x 1080/48p
HDMI/DVI-D/DIGITAL LINK: 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24p, 1080/24sF, 1080/25p, 1080/30p, 1080/60p, 1080/50p, 640 x 400-WUXGA (1920 x 1200) (compatible with non-interlaced signals only), dot clock: 25 to 162 MHz
RGB: fH: 15 to 100 kHz, fV: 24 to 120 Hz, dot clock: fH: 15 to 100 kHz, fV: 24 to 120 Hz, dot clock: 162 MHz or less
YPBPR (YCBCR): fH: 15.73 kHz, fV: 59.94 Hz [525i (480i)], fH: 15.63 kHz, fV: 50 Hz [625i (576i)], fH: 31.47 kHz, fV: 59.94 Hz [525p (480p)], fH: 31.25 kHz, fV: 50 Hz [625p (576p)], fH: 45.00 kHz, fV: 60 Hz [750 (720)/60p], fH: 37.50 kHz, fV: 50 Hz [750 (720)/50p], fH: 33.75 kHz, fV: 60 Hz [1125 (1080)/60i], fH: 28.13 kHz, fV: 50 Hz [1125 (1080)/50i], fH: 28.13 kHz, fV: 25 Hz [1125 (1080)/25p], fH: 27.00 kHz, fV: 24 Hz [1125 (1080)/24p], fH: 27.00 kHz, fV: 48 Hz [1125 (1080)/24sF], fH: 33.75 kHz, fV: 30 Hz [1125 (1080)/30p], fH: 67.50 kHz, fV: 60 Hz [1125 (1080)/60p], fH: 56.25 kHz, fV: 50 Hz [1125 (1080)/50p]
Video/YC: fH: 15.73 kHz, fV: 59.94 Hz (NTSC/NTSC4.43/PAL-M/PAL60), fH: 15.63 kHz, fV: 50 Hz (PAL/PAL-N/SECAM
HD-SDI: SMPTE ST 292 compliant, [YPBPR 4:2:2 10-bit] 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/25p, 1080/24p, 1080/24sF, 1080/30p
Dual-Link HD-SDI: SMPTE ST 372 compliant, [YPBPR 4:2:2 10-bit] 1080/50p, 1080/60p [RGB 4:4:4 12-bit/10-bit] 1080/60i, 1080/50i, 1080/25p, 1080/24p, 1080/24sF, 1080/30p, 2048 x 1080/24p, [X'Y'Z' 4:4:4 12-bit] 2048 x 1080/24p
3G-SDI: SMPTE ST 424 compliant, [RGB 4:4:4 12-bit/10-bit] 1080/60i, 1080/50i, 1080/25p, 1080/24p, 1080/24sF, 1080/30p, 2048 x 1080/24p, 2048 x 1080/25p, 2048 x 1080/30p, [YPBPR 4:2:2 10-bit] 1080/60p, 1080/50p, 2048 x 1080/48p, 2048 x 1080/50p, 2048 x 1080/60p, [X'Y'Z' 4:4:4 12-bit] 2048 x 1080/24p, 2048 x 1080/25p, 2048 x 1080/30p
Dual-link 3G-SDI: SMPTE ST 425 compliant, [YPBPR 4:4:4 12-bit/10-bit] 1080/60p, 1080/50p, 2048 x 1080/60p, 2048 x 1080/50p, 2048 x 1080/48p, [RGB 4:4:4 12-bit/10-bit] 1080/60p, 1080/50p, 2048 x 1080/60p, 2048 x 1080/50p, 2048 x 1080/48p
HDMI/DVI-D/DIGITAL LINK: 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24p, 1080/24sF, 1080/25p, 1080/30p, 1080/60p, 1080/50p, 640 x 400-WUXGA (1920 x 1200) (compatible with non-interlaced signals only), dot clock: 25 to 162 MHz
RGB: fH: 15 to 100 kHz, fV: 24 to 120 Hz, dot clock: fH: 15 to 100 kHz, fV: 24 to 120 Hz, dot clock: 162 MHz or less
YPBPR (YCBCR): fH: 15.73 kHz, fV: 59.94 Hz [525i (480i)], fH: 15.63 kHz, fV: 50 Hz [625i (576i)], fH: 31.47 kHz, fV: 59.94 Hz [525p (480p)], fH: 31.25 kHz, fV: 50 Hz [625p (576p)], fH: 45.00 kHz, fV: 60 Hz [750 (720)/60p], fH: 37.50 kHz, fV: 50 Hz [750 (720)/50p], fH: 33.75 kHz, fV: 60 Hz [1125 (1080)/60i], fH: 28.13 kHz, fV: 50 Hz [1125 (1080)/50i], fH: 28.13 kHz, fV: 25 Hz [1125 (1080)/25p], fH: 27.00 kHz, fV: 24 Hz [1125 (1080)/24p], fH: 27.00 kHz, fV: 48 Hz [1125 (1080)/24sF], fH: 33.75 kHz, fV: 30 Hz [1125 (1080)/30p], fH: 67.50 kHz, fV: 60 Hz [1125 (1080)/60p], fH: 56.25 kHz, fV: 50 Hz [1125 (1080)/50p]
Video/YC: fH: 15.73 kHz, fV: 59.94 Hz (NTSC/NTSC4.43/PAL-M/PAL60), fH: 15.63 kHz, fV: 50 Hz (PAL/PAL-N/SECAM
- SDI 1 Input: 1 x BNC 3G/HD/SD-SDI input, Dual-link HD-SDI (Link-A), Dual-link 3G-SDI (Link 1)
SDI 2 Input: 1 x BNC 3G/HD/SD-SDI input, Dual-link HD-SDI (Link-B), Dual-link 3G-SDI (Link 2)
DVI-D Input: 1 x DVI-D 24-pin (DVI 1.0 compliant, compatible with HDCP) (Single-link only)
RGB 2 Input: 1 x D-sub HD 15-pin (female) RGB/YPBPR
Remote 1 Input / Output: 1 x M3 for wired remote control, link control
Panasonic RZ21KU Specs
Image Display
| Display System | 0.96" DLP |
| Native Chip Resolution | 1900 x 1200 (WUXGA) |
| Maximum Brightness | 21,000 Lumens |
| Uniformity | 90% |
| Aspect Ratio | 16:10 |
Lens
| Lens Shift | Vertical: ± 55% Horizontal: ± 20% |
| Optical Zoom | None |
| Projection Size | 70 - 1000" / 1.78 - 25.40 m |
Features
| Keystone Correction | Vertical: ± 40° Horizontal: ± 15° |
| Ceiling Mountable | Yes |
| Inputs/Outputs | 1 x HDMI (HDMI Type-A) Video Input 1 x VGA (DE-15/DB-15) Video Input 1 x Composite (BNC) Video Input 1 x Composite (BNC) Video Output 1 x DE-9/DB-9 Control Input 1 x DE-9/DB-9 Control Output 1 x DE-9/DB-9 Remote Input 1 x Ethernet (RJ45) LAN 1 x USB 2.0 (USB Type-A) Data |
General
| Fan Noise | Full Brightness: 46 dB |
| Power Consumption | Full Brightness: 1510 W |
| Dimensions (W x H x D) | 23.5 x 10.6 x 28.5" / 598.0 x 270.0 x 725.0 mm not including protruding parts |
| Weight | 108 lb / 48.99 kg |
