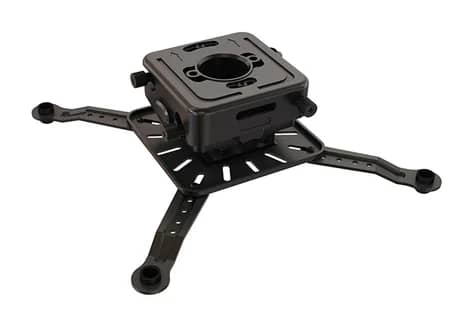

Optoma BM-9004U Universal Projector Ceiling Mount

The Optoma BM-9004U is a universal ceiling mount with extenders designed for Optoma large-venue projectors. Its adjustable mounting platform provides roll, pitch, and yaw control for aligning a supported projector after it has been positioned overhead. The mount supports loads up to 70 lb and provides roll adjustment of ±8°, pitch adjustment of ±15°, and yaw adjustment of ±360°.

Ideal Use Cases

The BM-9004U is intended for large-venue Optoma projector installations that require ceiling mounting. It is suited to projects where the projector must be positioned above the occupied area while retaining the ability to refine its physical alignment. The 70 lb maximum load makes projector weight a clear selection criterion: the intended projector must remain within that stated limit.

Its three-axis adjustment is especially relevant when the mounting point and projected image need to be aligned. Roll adjustment addresses side-to-side leveling, pitch adjustment changes the projector’s vertical angle, and yaw adjustment controls horizontal orientation. These adjustments allow the installer to work directly with the projector’s physical position rather than relying solely on image-processing corrections.

Why Choose This Model

This model combines a universal ceiling-mount format with support for Optoma large-venue projectors. The mount’s key advantage is its clearly specified range of mechanical adjustment. Roll can be adjusted by ±8°, pitch by ±15°, and yaw by ±360°. Together, these controls provide multiple ways to orient the attached projector relative to the screen and room layout.

The published 70 lb maximum load also makes suitability easier to evaluate before installation. Instead of relying on an unspecified capacity, the installer can compare the projector’s weight with the mount’s stated limit. The product title identifies this configuration as including extenders, although the supplied information does not specify their dimensions or quantity.

Installation and Integration

The BM-9004U is designed for ceiling-mounted integration. Before installation, verify that the selected Optoma large-venue projector is compatible with the universal mounting arrangement and does not exceed the 70 lb maximum load. The available source data does not provide a projector compatibility list, mounting-hole dimensions, ceiling attachment requirements, or extender measurements.

Once the projector is mounted, the adjustment ranges support staged alignment. Yaw can be used to establish horizontal direction, pitch can set the upward or downward angle, and roll can level the projector from side to side. Because all three adjustment values are specified, the mount can be evaluated against the amount of physical correction required by the planned mounting location.

Performance Highlights

• Universal ceiling mount designed for Optoma large-venue projectors
• Maximum supported load of 70 lb
• Roll adjustment range of ±8°
• Pitch adjustment range of ±15°
• Yaw adjustment range of ±360°
• Product configuration identified as including extenders

These specifications describe the mount’s load-handling and positioning capabilities without assigning projector-specific imaging features to the accessory. The BM-9004U does not determine resolution, brightness, contrast, or lens performance; those characteristics depend on the projector selected for the installation.

What Makes It Different

The BM-9004U is distinguished by the combination of a 70 lb maximum load and independently stated roll, pitch, and yaw ranges. This gives buyers concrete figures for evaluating both load suitability and available alignment movement. The ±360° yaw specification provides the broadest stated adjustment range, while the ±15° pitch and ±8° roll ranges address vertical aiming and lateral leveling.

Its focus is straightforward: provide an adjustable ceiling-mounting solution for Optoma large-venue projectors. The inclusion of extenders in the product name further identifies this specific mount configuration, while model BM-9004U and UPC 796435041199 provide precise product identification.

Final Assessment

The Optoma BM-9004U is a purpose-defined option for ceiling mounting a compatible Optoma large-venue projector weighing no more than 70 lb. Its ±8° roll, ±15° pitch, and ±360° yaw adjustments provide the core mechanical controls needed to orient and level the projector. For installations that match its load limit and mounting format, it offers a clearly specified combination of overhead placement and multi-axis adjustment.
