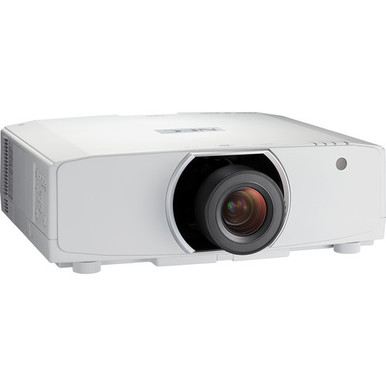

NEC NP-PA853W Overview
Project bright, vibrant images with the NEC NP-PA853W 8500-Lumen HDR WXGA Projector and Lens Bundle. The projector’s 8500 lumens of brightness will overcome ambient light in most installations. WXGA (1280 x 800) is its native resolution, but the projector can process images over its digital inputs up to 4K with support for the wider color gamut produced by HDR10-compatible content and sources. The included 1.3 to 3.08:1 lens will project up to 500″ images.
Key Features
- Brightness of 8500 Lumens
- WXGA (1280 x 800) Native Resolution
- Supports up to UHD Resolution & HDR10
- 1.3 to 3.08:1 Lens Included
- DisplayPort, HDBaseT, VGA, 2x HDMI-In
- HDBaseT Output for Loop-Through
- Analog Audio Input & Output
- USB & RS-232 Controllable
- Controllable by Crestron, AMX & more
- IR Remote Included
NEC PA Series NP-PA853W 8500-Lumen WXGA LCD Professional Installation Projector (No Lens)
The PA Series NP-PA853W 8500-Lumen WXGA LCD Professional Installation Projector from NEC features multi-display support and TileMatrix technology. All processing is done internally and therefore eliminates the additional hardware typically required to produce 4K resolution. Built-in stacking correction capabilities (up to four projectors) allow the projector to boost an image’s brightness up to 26,000 lumens, which is suitable for larger-sized screens and environments with heavy ambient light. This feature also prevents the complete loss of an image, which can happen when using only one projector.
The PA Series Projector features Edge blending, which lets the projector seamlessly blend multiple projected images to display a single high-resolution image. The built-in HDBaseT support simplifies your installations. The projector is optimized for video applications and supports uncompressed full HD digital video, audio, Ethernet, power, and various control signals. With only a single cable (up to 328′) to run, infrastructure and labor costs are reduced, installations are significantly easier, and there is no cable clutter to manage.
Cornerstone
Keystone correction allows for horizontal, vertical, and diagonal image correction for aligned images even when the projector is set up at an angle to the screen.
Geometric Correction
Geometric correction allows the projector to project an image on spheres, cylinders, corner angles, and many more non-standard surfaces.
10,000-Hour Filter Life
Virtually maintenance-free filter reduces the frequency at which cleaning is required, thereby decreasing total cost of ownership.
Tilt-Free
The projector can be rotated freely (360°) to orient the image depending on the installation requirements.
Portrait Mode
The portrait mode allows the projector (and screen if necessary) to be rotated to a vertical alignment so that portrait content can be viewed without black bars on the sides when landscape mode is used.
3D Ready
When combined with active shutter glasses and 3D emitter, the PA Series Projectors create 3D images from a computer or Blu-ray player. The PA Series utilizes the 3D sync line output from the projector to connect to the 3D emitter.
Remote Control
Wired and wireless backlit remote allows you to adjust for complete control of the projector’s menu structure in a well-lit or dark environment. Direct controls such as lamp mode, aspect ratio, volume, and input selection eliminates multiple button pushes.
Digital Inputs
Among the PA Series’ wide selection of inputs are dual HDMI with HDCP, and DisplayPort with HDCP for connecting to high-definition sources such as Blu-ray players, cable boxes, satellite receivers, and personal computers.
Other Features
- Variable audio-out enables the remote control to be used to adjust volume of self-powered external speakers that are connected to the projector
- In stand-by mode, the audio-out stays active, allowing the last input used to pass to the self-powered external speakers
- Advanced AccuBlend ensures detailed images when non-native resolution sources are connected to the projector
- 64-step image magnification with location control
- Built-in HTTP page for control and monitoring over a LAN network
- Email notification of error messages or lamp end-of-life can be sent to remote locations
- Multi-display support with Picture by Picture / Picture Out Picture
- TileMatrix (internal multi-screen splitter) enables 4K resolution utilizing four projectors without the need for external hardware
- Built-in daisy chain capabilities support multi-display applications
- Seamlessly blend multiple images with integrated edge blending capabilities
- HDR10, BT.2020 signal format applicable for use with the Ultra HD Blu-ray and 4K TV broadcasting Project uncompressed FHD video with integrated HDBaseT
- Integrated software applications such as AMX Beacon, Crestron Roomview, Extron XTP, and PJ Link allow for complete interactivity and control
- Up to 60% vertical lens shift and ±30% horizontal lens shift capabilities make alignment easy
- Multiple Digital computer inputs ensure quick switching between presentations
- Five audio inputs make it easy to add sound to enhance your presentation
NEC 1.30-3.08 Zoom Lens for NEC PA Series Projectors
The 1.30-3.08 Zoom Lens from NEC can be used with NEC PA Series Projectors. When used with this lens, the projector can achieve 50 to 500″ projection size.
Compatible with NEC NP-PA653U, NP-PA803U, NP-PA853W, and NP-PA903X LCD Projectors
NEC PA Series NP-PA853W 8500-Lumen WXGA LCD Professional Installation Projector (No Lens) Specs
Image Display
| Display System |
1-Chip 0.76″ Micro Lens Array (MLA) LCD |
| Native Chip Resolution |
1280 x 800 (WXGA) |
| Supported Resolutions |
Maximum: 4096 x 2160
VGA
SVGA
XGA
SXGA
SXGA+
UXGA |
| Maximum Brightness |
8500 Lumens |
| Contrast Ratio |
10,000:1 |
| Scan |
Horizontal: 15 to 153 kHz
Vertical: 24 to 120 Hz |
Lens
| Focus |
Manual |
| Throw Distance |
2.5 – 68.5′ / 0.762 – 20.879 m |
| Projection Size |
40 – 500″ / 101.60 – 1270.00 cm |
Features
| Keystone Correction |
Vertical: ± 40°
Horizontal: ± 40° |
| Multi-Input Support (PIP/PBP) |
Picture-in-Picture (PIP) |
| Ceiling Mountable |
Yes |
| Rear Screen Projection |
Yes |
| Built-In Speaker |
None |

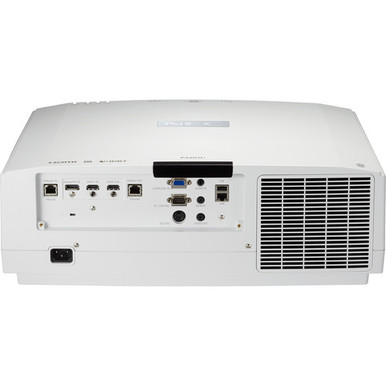

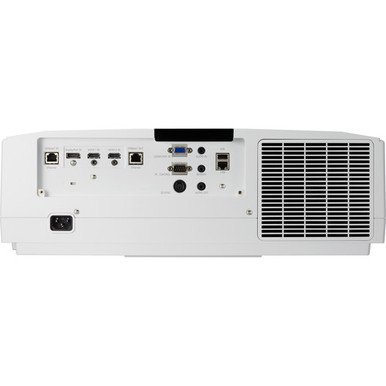

| Inputs/Outputs |
1 x VGA (DE-15/DB-15) Video Input
2 x HDMI (HDMI Type-A) Audio, Video Input
1 x DisplayPort Audio, Video Input
1 x HDBaseT (RJ45) Audio, Video Input
1 x 1/8″ / 3.5 mm Mini Audio Input
1 x HDBaseT (RJ45) Audio, Video Output
1 x 1/8″ / 3.5 mm Mini Audio Output
1 x VESA 3D Sync (3-Pin DIN) Video Output
1 x RS-232 (DE-9/DB-9) Control
1 x 1/8″ / 3.5 mm Mini Control
1 x Ethernet (RJ45) LAN |
General
| Expected Lamp Life |
Medium Brightness: 3000 Hours
Low Brightness: 5000 Hours |
| Fan Noise |
Medium Brightness: 39 dB
Low Brightness: 33 dB |
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz |
| Power Consumption |
Medium Brightness: 566 W
Low Brightness: 390 W
Standby Mode (Lamp Off): 0.7 W
Standby Mode (Lamp Off): 0.3 W |
| Dimensions (W x H x D) |
19.8 x 6.6 x 16.2″ / 50.3 x 16.8 x 41.1 cm |
| Weight |
22.5 lb / 10.2 kg |
