Description
NEC NP-ME382U Overview

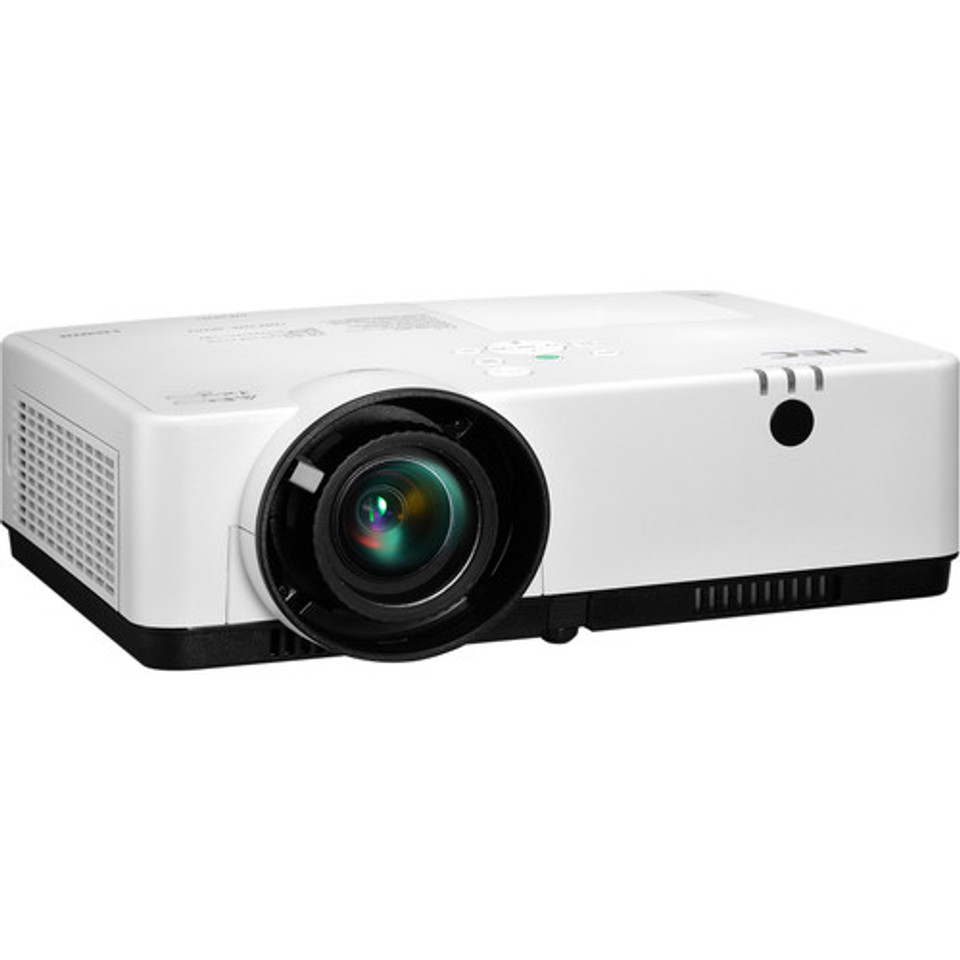

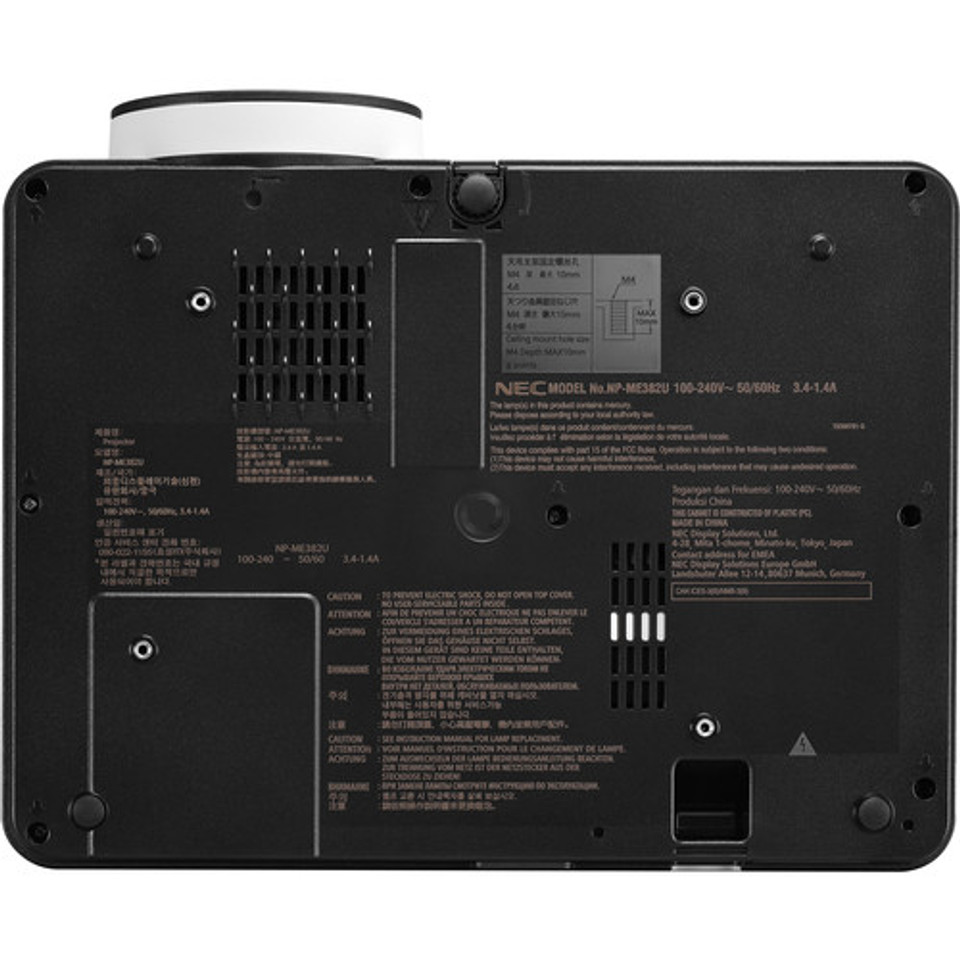

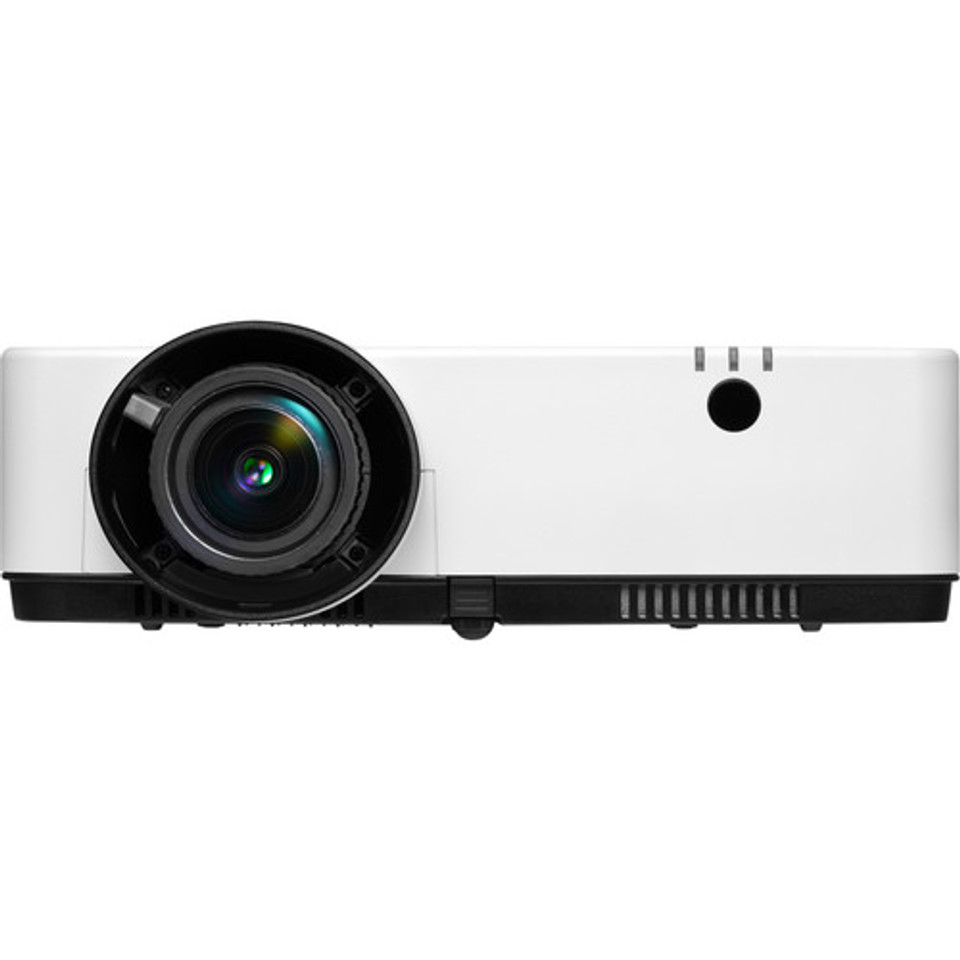

Enjoy bright, clear images with the NEC NP-ME382U 3800-Lumen WUXGA LCD Projector. Its 3800 lumens of brightness can overcome ambient light in most conference room and classroom settings, while its 16,000:1 dynamic contrast ratio can help ensure discernible detail in most images. The projector's native WUXGA 1920 x 1200 resolution is suitable for most video and file formats, and will accept up to 4K UHD sources.
The NP-ME382U has VGA, composite video, and two HDMI inputs to support most input types, plus an analog audio input and built-in 16W speaker that will provide audio for your video. The 1.2 to 2:1 throw ratio and 1.6x zoom allows you to place the projector near the back of the room in most cases. It is controllable via Ethernet, RS-232, the included IR remote control, or Crestron RoomView software
Key Features
- Brightness of 3800 Lumens
- WUXGA (1920 x 1200) Native Resolution
- 1.2 to 2:1 Throw Ratio
- VGA, RCA, 2 HDMI Inputs
- VGA Output for Loop-Through
- Analog Audio Input and Output
- Compatible with Crestron RoomView
- Built-In 16W Speaker
- Ethernet and RS-232 Controllable
- IR Remote Included
Advanced AccuBlend
This feature helps ensure detailed images when non-native resolution sources are projected.
AutoSense
AutoSense is designed to sync the projector with most computer signals. It also features one-touch image optimization.
Wall Color Correction
Presets provide for adaptive color tone correction for projection on non-white surfaces.
Cornerstone Correction
This feature allows for horizontal, vertical, and diagonal image correction to help you achieve aligned images when the projector is set up at an angle to the screen.
Geometric Correction
Geometric correction lets you project onto spheres, cylinders, corner angles, and more.
Computer-Free Presentations
Insert a compatible USB drive directly into the projector and flip through images using the remote control.
Ready for 4K UHD
The NP-ME382U accepts resolutions up to 4K UHD to offer a measure of future-proofing.
Integrated Speaker
The built-in 16W speaker is designed to provide the volume needed for most conference rooms.
Multiple Inputs
Having VGA, RCA, and two HDMI inputs enables you to quickly switch between presentations from different sources. The HDMI ports support HDCP, so you can project from Blu-ray players, cable boxes, satellite receivers, computers, and more.
USB Viewer
Play JPG files stored on your USB drive without a computer.
Wired Network Connection
The integrated Ethernet connection enables quick connection to your LAN via 10/100 base-T.
Variable Audio Out
You can adjust the volume of an external speaker system using the projector's remote control.
Crestron RoomView Compatibility
Crestron RoomView provides unified management, including the ability to turn the power on and off for multiple projectors connected to a network.
Remote Diagnostics
You can monitor and make adjustments to the projector from a remote location.
Closed Captioning
Closed captioning enables the decoding and display of text information from a video.
Independent Source Keys
The projector and remote feature direct access buttons for source selection.
ECO Mode
This mode helps extend lamp life, lower audible noise, and reduce total cost of ownership.
Carbon Savings Meter
This meter calculates the effects of operating the projector in ECO Mode. A green ECO Mode button on the remote control enables one-touch mode activation.
Power Management
Power management enables the projector to automatically turn off when an incoming signal is not detected from any of the inputs.
Quick Startup and Quick Power-Off
These features allow you to start presenting within four seconds and enables immediate power off with no cooling required after shutdown to help ensure efficient energy usage.
Auto Power On
This feature powers the projector on as soon as it's plugged into a power outlet.
Direct Power Off
Direct Power Off helps protect the lamp when the projector is accidentally unplugged by enabling the fan to continue running until the lamp is properly cooled down. Internal sensors monitor lamp temperature and prevent the lamp from powering on if it's too hot.
Optional Wireless LAN
Transmit images from your computer to the projector wirelessly with the optional NP05LM1 wireless LAN adapter.
Additional Features
- The lamp lasts up to 15,000 hours to help reduce maintenance requirements, lowering the total cost of ownership
- 1.6x zoom gives installers more options when choosing a mounting location
- LCD technology is designed to provide bright, colorful images
- Built-in MultiPresenter functionality allows for screen sharing of up to 16 Windows, Mac, Android, or iOS devices simultaneously via your LAN
- NaViSet Administrator 2 software helps ease administration and management of large display device installations
- Virtual Remote
- Sleep timer
NEC NP-ME382U Specs
Image Display
| Display System | 0.64" LCD |
| Native Chip Resolution | 1920 x 1200 (WUXGA) |
| Supported Resolutions | Maximum: 4K UHD - 3840 x 2160 @ 30 Hz |
| Maximum Brightness | 3800 Lumens |
| Aspect Ratio | Native: 16:10 |
| Dynamic Contrast Ratio | 16,000:1 |
| Scan | Horizontal: 15 to 100 kHz Vertical: 50 to 120 Hz |
Lens
| Focus | Manual |
| Lens | f/1.5 - 2.08 (f = 17.2 - 27.7 mm) |
| Optical Zoom | 1.6x |
| Throw Distance | 2.6 - 42.3' / 0.792 - 12.893 m |
| Throw Ratio | 1.2 to 2:1 |
| Projection Size | 30 - 300" / 76.20 - 762.00 cm |
Features
| Keystone Correction | Horizontal: ± 20° Vertical: ± 30° |
| Ceiling Mountable | Yes |
| Rear Screen Projection | Yes |
| Built-In Speaker | Yes |
| Speaker Power | 16W |
| Closed Captioning | Yes |
Input/Output Connectors
| Inputs/Outputs | 2 x HDMI (HDMI Type-A) Audio, Video Input 1 x USB 2.0 (USB Type-A) Data Input 1 x VGA (DE-15/DB-15) Video Input 1 x VGA (DE-15/DB-15) Video Output 1 x Composite (RCA) Video Input 1 x 2RCA Audio Input 1 x 1/8" / 3.5 mm Mini Audio Input 1 x 1/8" / 3.5 mm Mini Audio Output 1 x Ethernet (RJ45) Control, LAN 1 x RS-232 (DE-9/DB-9) Control Input 1 x USB 2.0 (USB Type-B) Service |
| Wireless LAN / Wi-Fi | No, Optional Adapter Available |
General
| Light Source | Lamp |
| Lamp Power | 225 W |
| Expected Lamp Life | Full Brightness: 10,000 Hours Low Brightness: 15,000 Hours |
| Fan Noise | Full Brightness: 37 dB Medium Brightness: 34 dB Low Brightness: 29 dB |
| Supported Photo File Types | JPG |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Consumption | Medium Brightness: 295 W |
| Operating Temperature | 41 to 104°F / 5 to 40°C |
| Storage Temperature | -14 to 122°F / -25 to 50°C |
| Dimensions (W x H x D) | 13.6 x 4.1 x 10.3" / 34.5 x 10.4 x 26.2 cm |
| Weight | 7.7 lb / 3.49 kg |
Packaging Info
| Package Weight | 11.75 lb |
| Box Dimensions (LxWxH) | 17.4 x 15.5 x 7.5" |
