Screen Size (Diagonal) 75″
Resolution 3840 x 2160
Panel Type IPS-Type LCD
Bit Depth / Color Support 8-Bit+FRC (1.07 Billion Colors)
Brightness 350 cd/m (Maximum)
Aspect Ratio 16:9
Contrast Ratio 1200:1
Response Time 8 ms
Refresh Rate 60 Hz
Horizontal Frequency 15 to 136 kHz (Digital)
Vertical Frequency 23 to 76 Hz (Digital)
Pixels Per Inch (ppi) 59 ppi
Backlighting Technology Edge LED
Primary Connectivity Location Display

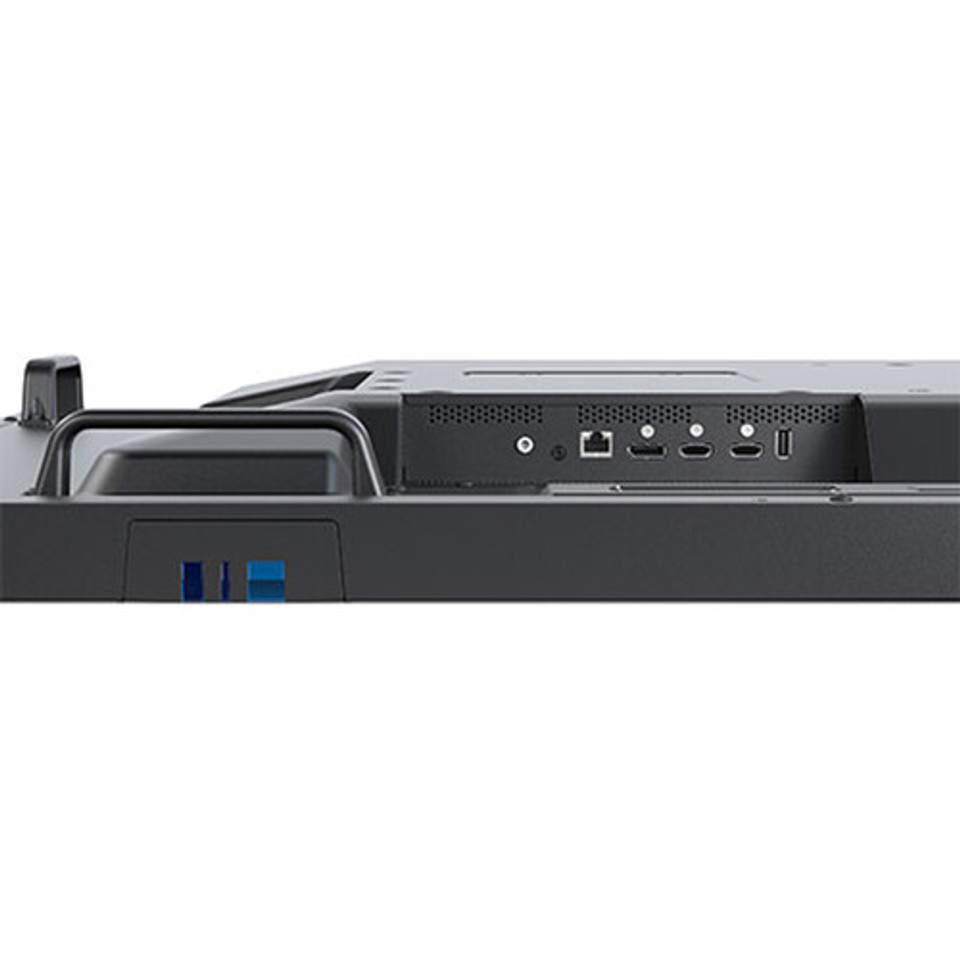

Input Ports 2 x HDMI Audio, Video 1 x DisplayPort 1.2 Audio, Video
Output Ports 1 x 1/8″ / 3.5 mm Audio
USB Ports 1 x USB 2.0
Ethernet Ports 1 x 10/100 Mb/s Ethernet
Control IR via 1/8″ / 3.5 mm Input

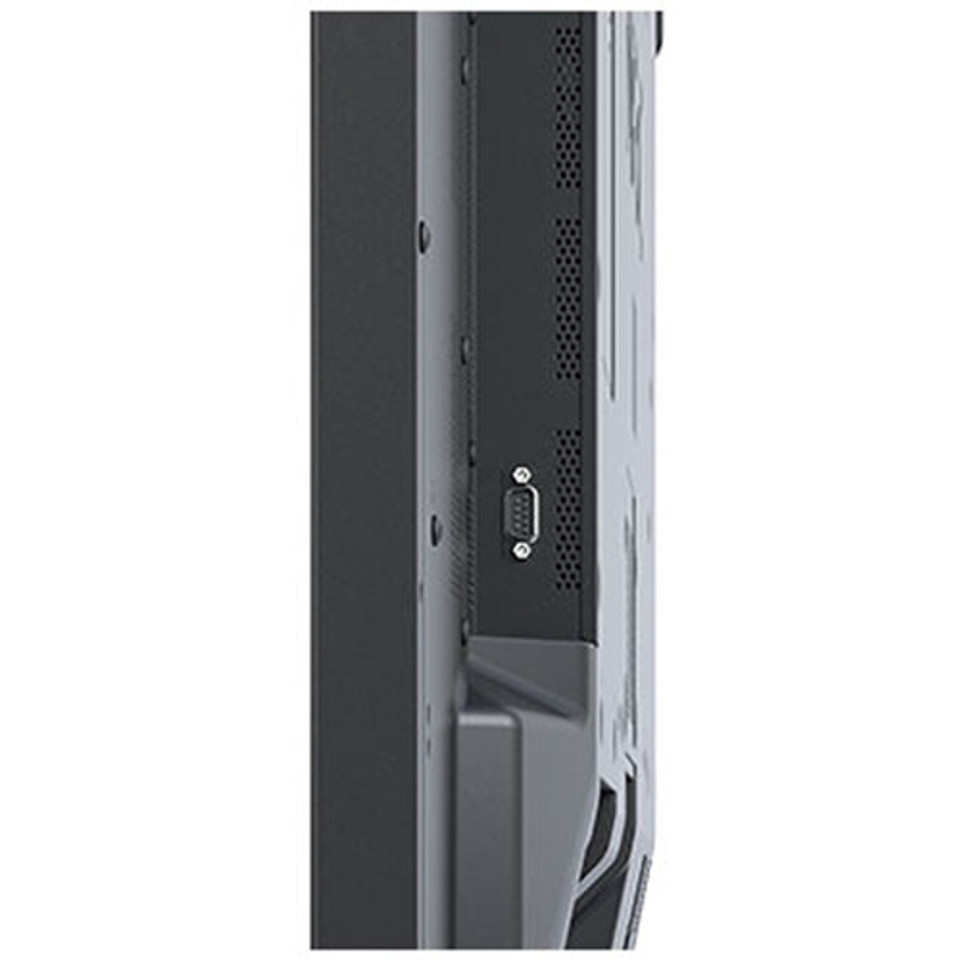

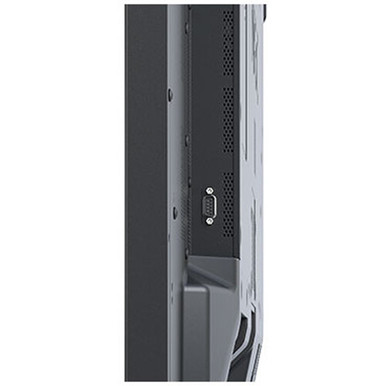

Other I/O 1 x RS-232C
Number of OPS/Expansion Slots 1
TV Tuner No

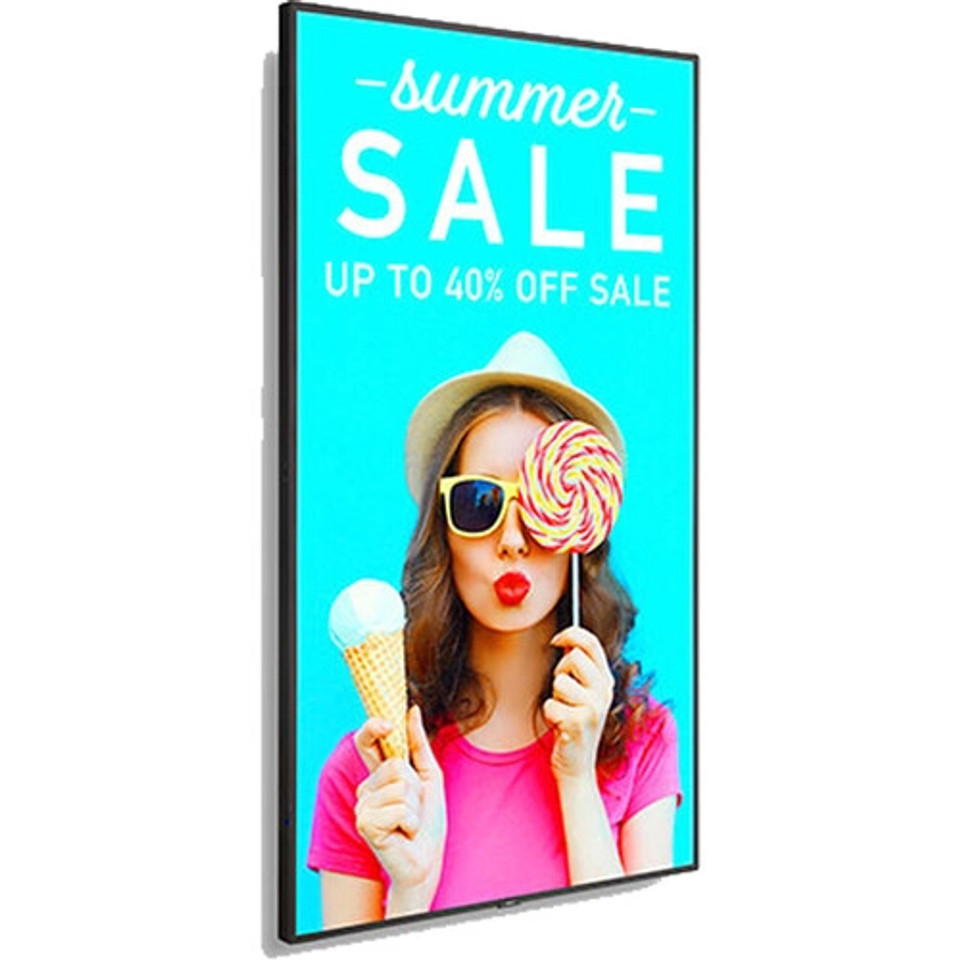

Display Orientation Landscape, Portrait
HDCP Support Yes, Version 2.2
Built-In Speakers Yes, 2 x 10 W
Speaker Configuration 2-Channel
Power Consumption Operational: 195.0 W Maximum: 375.0 W Economy Mode: 0.5 W Network Standby: 2.0 W
AC Input Power 100 to 240 VAC, 50 / 60 Hz at 4.4 to 1.9 A
Operating Temperature 32 to 104 F / 0 to 40 C
Storage Temperature -4 to 140 F / -20 to 60 C
Operating Humidity 20 to 80%
Storage Humidity 10 to 90%
Operating Altitude 9843′ / 3000 m
Storage Altitude 40,000′ / 12,192 m
Bezel Thickness 14.8 mm (Bottom/Right/Top/Left)
Dimensions 66.2 x 39.2 x 23.9″ / 1681.2 x 996.8 x 606.0 mm (with Stand) 66.2 x 37.8 x 2.8″ / 1681.2 x 959.6 x 71.1 mm (without Stand)
Weight 126.1 lb / 57.2 kg (with Stand) 115.98 lb / 52.61 kg (without Stand)
Package Weight 144 lb
Box Dimensions (LxWxH) 71.5 x 46.5 x 10.5″
NEC C750Q Overview HDR Compatibility 8 ms Response Time 350 cd/m Brightness
Landscape and Portrait Orientation Allows for flexibility of installation dependent on your needs. Industrial-Strength Panel
Enjoy 24/7 operation with thermal protection, internal temperature sensors with self-diagnostics, and integrated fans. Integrated Media Player
Allows for audio, video, or image playback via USB. Failover Capabilities With full Input Detect functionality, you get peace of mind as the display will automatically switch to a secondary or tertiary source if the primary source fails.
Power Management Enables projector to automatically turn off when an incoming signal is not detected from any of the inputs. Round-the-Clock Scheduler
Allows for advanced scheduling of powering on/off, which can increase panel lifespan, reduce power consumption, and save the time and expense of finding and purchasing a third-party scheduling solution. Human Sensor
Power Management Upon sensing movement, the display can automatically adjust to certain built-in settings and features that can lead to targeted messaging for dual-purpose display in digital signage or presentation applications.
Integrated Ambient Light Sensor Allows the display to automatically adjust its brightness based on external lighting conditions. LED Edge-Lit Display
Power Management Reduces overall depth while also lowering overall power consumption of the product. NaViSet Administrator 2
Power Management Free software solution that greatly eases administration and management of larger display device installations. Additional Features AMX Support
Power Management Automated Email Alert Function CEC Support through HDMI Crestron Connected Support Display Browser Control
HDR Compatible Key Guide NaViSet Administrator 2 Compatible
HDR Compatible Key Guide Power USB Port (5V/2A) Removeable Logo Ornament Real Time Clock Local Dimming TileMatrix SNMP
Integrated USB Media Player Integrated Temperature sensors Integrated Cooling Fans
Full Input Detect Functionality Integrated Ambient Light Sensor Programmable Gamma Scheduler Function Off Timer Vacation Switch NEC C750Q Specs Display
Full Input Detect Functionality Screen Size (Diagonal) 75″ Resolution 3840 x 2160 Panel Type
Bit Depth / Color Support 8-Bit+FRC (1.07 Billion Colors) Brightness 350 cd/m (Maximum)
IPS-Type LCD Aspect Ratio 16:9
IPS-Type LCD Contrast Ratio 1200:1 Response Time 8 ms
IPS-Type LCD Refresh Rate 60 Hz Horizontal Frequency 15 to 136 kHz (Digital) Vertical Frequency 23 to 76 Hz (Digital) Pixels Per Inch (ppi) 59 ppi Backlighting Technology Edge LED Connectivity
2 x HDMI Audio, Video
Input Ports Output Ports 1 x 1/8″ / 3.5 mm Audio
1 x USB 2.0
USB Ports Ethernet Ports 1 x 10/100 Mb/s Ethernet Control IR via 1/8″ / 3.5 mm Input Other I/O 1 x RS-232C
USB Ports Number of OPS/Expansion Slots 1 General TV Tuner No Display Orientation Landscape, Portrait HDCP Support Yes, Version 2.2 Audio Built-In Speakers Yes, 2 x 10 W Speaker Configuration 2-Channel Electrical
Power Consumption Operational 195.0 W
Power Consumption Maximum 375.0 W
Power Consumption Economy Mode 0.5 W
Power Consumption Network Standby 2.0 W
Power Consumption AC Input Power 100 to 240 VAC, 50 / 60 Hz at 4.4 to 1.9 A Environmental
Power Consumption Operating Temperature 32 to 104 F / 0 to 40 C Storage Temperature -4 to 140 F / -20 to 60 C
Power Consumption Operating Humidity 20 to 80% Storage Humidity 10 to 90%, Altitude 9843′ / 3000 m Storage Altitude 40,000′ / 12,192 m Physical Bezel Thickness 14.8 mm (Bottom/Right/Top/Left) Dimensions 66.2 x 39.2 x 23.9″ / 1681.2 x 996.8 x 606.0 mm (with Stand) 66.2 x 37.8 x 2.8″ / 1681.2 x 959.6 x 71.1 mm (without Stand) Weight 126.1 lb / 57.2 kg (with Stand) 115.98 lb / 52.61 kg (without Stand) Packaging Info Package Weight 144 lb
Power Consumption Box Dimensions (LxWxH) 71.5 x 46.5 x 10.5″
SKU C750Q
Brand NEC
MPN C750Q
GTIN 00805736076561, 805736076561
UPC 805736076561
