Video Wall Mobil Cart 2x2 800x 400 100Lbs Max Weight MPVWM2X84U

Ideal Use Cases

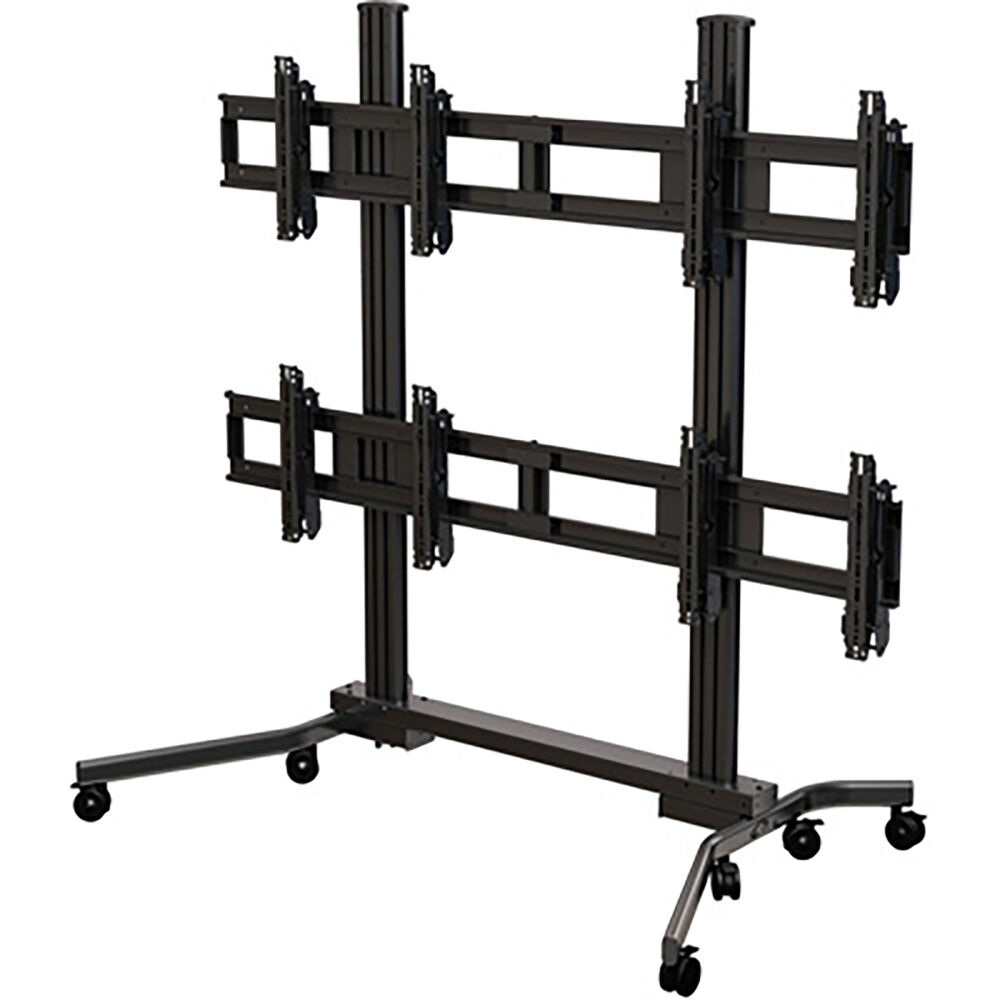

The Mustang Professional MPVW-CART-2X2 is designed for installations that require a 2×2 video wall using 37- to 75-inch TVs. Each display position supports up to 100 lbs, while the complete mount has a stated maximum capacity of 400 lbs. Its cart format is suited to applications where four compatible displays need to be organized into a unified video wall without relying on a wall-mounted structure.

• 2×2 video wall configurations using four compatible TVs
• Displays measuring between 37 and 75 inches
• Installations requiring support for up to 100 lbs per display
• TVs with VESA mounting patterns up to 800 x 400 mm

Why Choose This Model

This model combines broad display compatibility with a clearly defined 2×2 mounting format. Support for 37- to 75-inch TVs gives installers flexibility when selecting display sizes, while the 800 x 400 mm maximum VESA pattern accommodates a range of compatible mounting interfaces. The 100-lb load rating applies to each display, providing a total stated maximum weight capacity of 400 lbs across the video wall.

The structure is manufactured from high-grade cold rolled steel. A scratch-resistant epoxy powder-coat finish protects the exterior surface and provides a durable finished appearance. These material details make the MPVW-CART-2X2 a purpose-built mounting platform rather than a collection of separate display stands.

Installation and Integration

Before installation, verify the size, weight, and VESA pattern of every TV. Each display must measure from 37 to 75 inches, weigh no more than 100 lbs, and use a mounting pattern no larger than 800 x 400 mm. Because lateral adjustment varies with the selected screens, the exact adjustment range should be evaluated using the dimensions and mounting locations of the displays being installed.

The cart has a base depth of 41.5 inches and an overall height of 72.1 inches. The maximum TV height is listed as 68.3 inches, measured to the center of the screen on the top row. These measurements help determine the floor area, vertical clearance, and final screen position required for the assembled 2×2 display configuration.

Performance Highlights

The MPVW-CART-2X2 supports four-display layouts while maintaining an individual 100-lb rating for each mounted TV. Its maximum 800 x 400 mm VESA compatibility is especially important when matching the cart to larger displays within the supported 37- to 75-inch range. The stated 400-lb maximum capacity corresponds with the combined per-display load rating when all four mounting positions are used.

High-grade cold rolled steel provides the primary structural material, while the epoxy powder-coat finish adds scratch resistance. Together, these specifications address the two central requirements of a multi-display mounting system: supporting the installed equipment and maintaining the finish during normal installation and use.

What Makes It Different

Rather than supporting a single television, this model is configured specifically for a 2×2 video wall. Its specifications define the complete installation envelope: supported TV sizes, per-display load capacity, maximum VESA pattern, base depth, cart height, and top-row screen-center height. This makes it easier to assess display compatibility and space requirements before installation.

The available lateral adjustment varies with screen choice, allowing the final setup to account for the particular displays being used. Compatibility should therefore be confirmed across all four TVs, especially when display dimensions or mounting-hole positions differ.

Final Assessment

The Mustang Professional MPVW-CART-2X2 is a dedicated 2×2 video wall cart for 37- to 75-inch TVs. It supports up to 100 lbs per display, a maximum total weight of 400 lbs, and VESA patterns up to 800 x 400 mm. With cold rolled steel construction, a scratch-resistant powder-coat finish, and documented installation dimensions, it provides a clearly specified foundation for a compatible four-display video wall.
