Mobile Cart for the 50" Microsoft Surface Hub 2S/2X

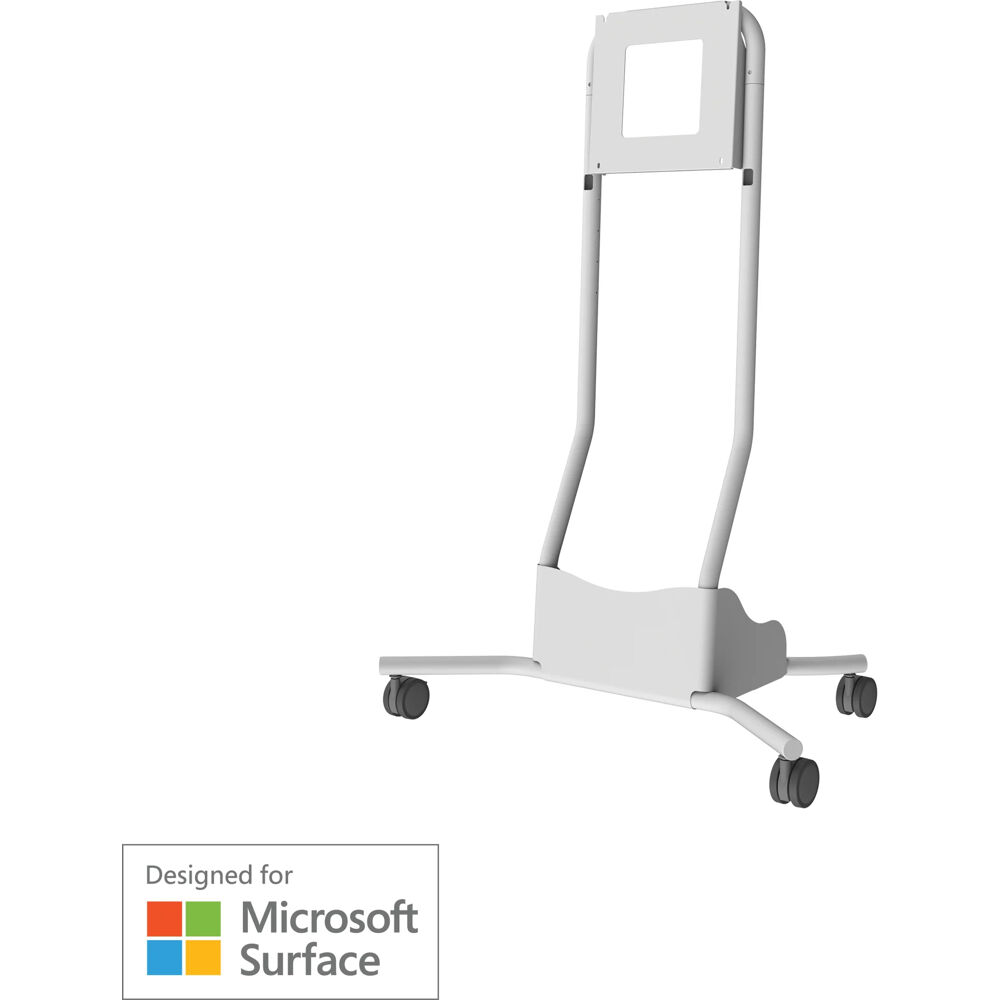

The Peerless-AV® SmartMount® SR560-HUB2 is a purpose-designed mobile cart for mounting, moving, and storing one 50-inch Microsoft® Surface™ Hub 2S. Its 65 lb load rating, adjustable display position, and four 4-inch casters support the practical demands of a large interactive display. The white, powder-coated cart places the screen at Microsoft’s recommended 55-inch viewing height, while incremental vertical adjustment lets the display sit from 48 to 60 inches above the floor. Concealed cable routing and compute-cartridge clearance keep the installation orderly and accessible.

Ideal Use Cases

This model fits installations where a 50-inch Surface Hub 2S needs to be shared across spaces or repositioned without removing it from its mounting structure. The mobile format supports interactive-display use, while the caster arrangement provides a stable foundation for touch applications. Two swivel casters and two locking swivel casters are included, allowing the cart to move when required and remain secured in position during use.

It is also well suited to deployments that need a choice of screen heights. With positions spanning 48 to 60 inches from the floor, installers can select an appropriate viewing and interaction level rather than relying on one fixed mounting point.

Why Choose This Model

The SR560-HUB2 combines device-specific fit with details aimed at day-to-day usability. It supports one 50-inch display weighing up to 65 lb and uses a 350 x 350 mounting pattern. At 46.18 inches wide and 28.60 inches deep, the base gives the cart a defined footprint, while the full assembled height is 68.19 inches.

Locking 4-inch casters help maintain stability for touch interaction. Inside the vertical columns, cable-management channels completely hide cabling, reducing exposed runs around the display and base. This provides an orderly installation while preserving the mobility that distinguishes the cart format.

Installation and Integration

Assembly is required. The package contains one assembled base, two vertical columns, two swivel casters, two locking swivel casters, a bottom shelf, hardware, and instructions. The supplied components create a single-screen cart for the supported Microsoft display. The cart itself weighs approximately 58.20 lb.

During setup, the display can be positioned at incremental heights within the 48-to-60-inch range. Cabling routes through channels inside the uprights instead of remaining exposed. The design also leaves clearance for the Surface Hub 2S removable compute cartridge, allowing the cartridge to be upgraded without taking the display off the cart. This access supports future cartridge work while keeping the mounted screen in place.

Performance Highlights

The cart’s core performance is defined by its 65 lb maximum load capacity, four-caster mobility, and controlled positioning for a 50-inch screen. Each caster measures 4 inches, and the locking pair supports a stable base when the display is being used for touch input. The 48-to-60-inch vertical range includes the 55-inch recommended viewing height.

A powder-coated white finish completes the SR560-HUB2. Overall dimensions are 46.18 inches wide by 28.60 inches deep by 68.19 inches high, making its footprint and storage requirements clear before installation.

What Makes It Different

What distinguishes this model is the combination of mobility and Surface Hub 2S-specific access. The removable compute cartridge remains reachable without display removal, while internal upright channels conceal the installation cabling. These two details address servicing and presentation without giving up the adjustable, mobile format.

The cart is TAA compliant and meets Restriction of Hazardous Substances (RoHS) environmental compliance. Peerless-AV backs the product with a five-year limited warranty. Together with the 350 x 350 mounting pattern and 65 lb rating, these details provide concrete purchasing and integration criteria.

Final Assessment

For a supported 50-inch Microsoft Surface Hub 2S, the SR560-HUB2 offers a clearly specified path to mobile deployment: one-display support, a 65 lb load limit, four 4-inch casters, concealed cable routing, and height adjustment from 48 to 60 inches. Its compute-cartridge clearance, included bottom shelf, locking caster pair, white powder-coated finish, and five-year limited warranty complete a cart whose features are matched to the supported display.
