Motorized height adj Flat panel cart for 42″to 86″interactive dispays

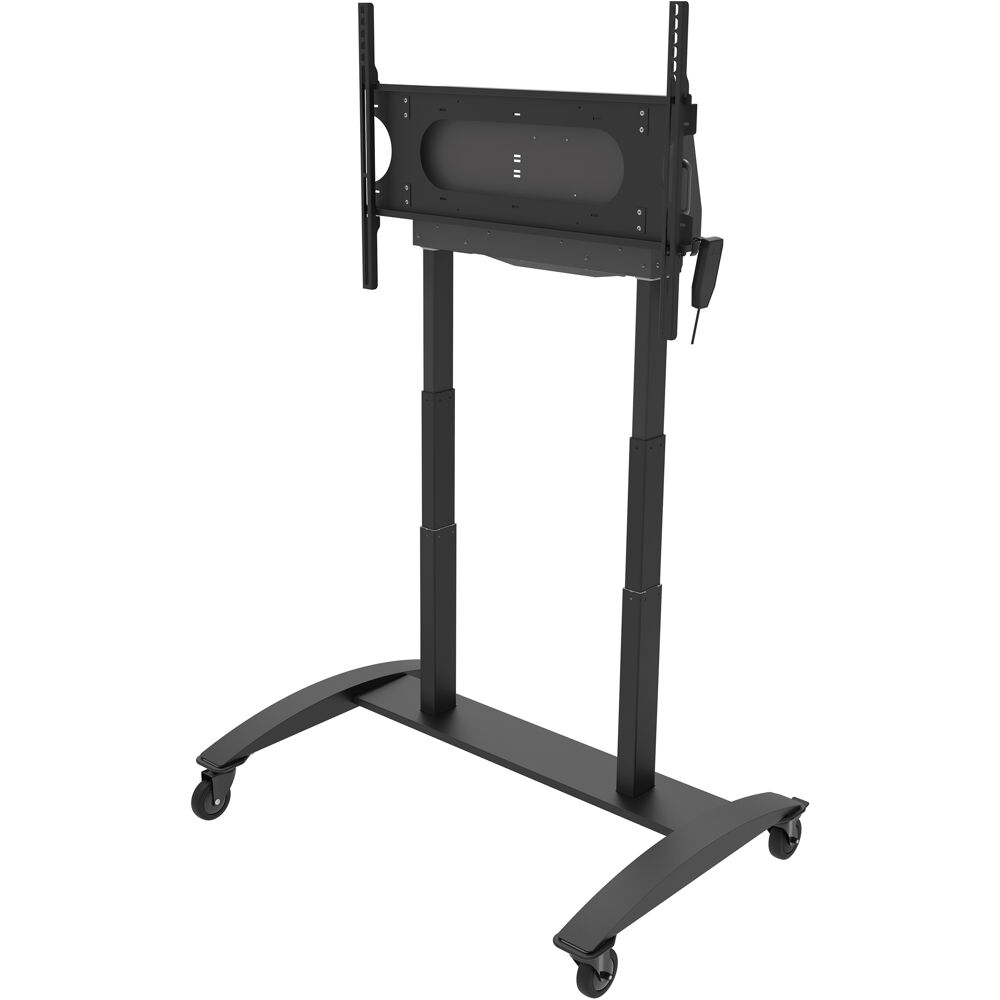

The Peerless-AV SmartMount® SR598ML3E is a motorized, height-adjustable flat panel cart designed to mount, move, and store interactive displays. It supports screens from 42 to 86 inches and loads up to 280 lb. Button-operated, UL-recognized actuators provide up to 25.6 inches (650 mm) of vertical adjustment, allowing the display height to be changed without manually repositioning the mounted screen.

Ideal Use Cases

This cart is suited to interactive displays, touch displays, and flat panels that need to move between rooms or be adjusted for different users and applications. Its large wall plate and locking casters establish a stable foundation for touch interaction, while the motorized columns make it possible to raise or lower the display at the touch of a button. The integrated rear shelf also supports installations that use a mini PC and power strip.

Why Choose This Model

The SR598ML3E combines a broad 42- to 86-inch screen range with a 280 lb maximum load capacity. Its specified 800 x 600 mounting pattern is VESA compatible. Four 4-inch swivel casters support room-to-room movement, and the locking wheels secure the cart when it reaches the intended position. The textured black powder-coated finish is durable, fingerprint resistant, and dust resistant. The model is also TAA compliant, UL listed, and covered by a five-year limited warranty.

Installation and Integration

The package includes an assembled base with motorized columns and casters, a universal display adaptor, control box, control switch, hardware, and instructions. Assembly is required. The cart measures 72.47 inches high, 45.76 inches wide, and 28.75 inches deep, with an approximate weight of 100 lb. Its floor-standing design does not require permanent attachment to a wall.

The rear shelf provides space for a mini PC and power strip. Listed mini PC compatibility includes the Dell Optiplex Micro, HP 260 G2, Lenovo M600 Tiny, and Intel NUC. A storage location below the shelf allows the power cord to be bundled and stored neatly. These provisions keep the computing and power components together with the mobile display system.

Performance Highlights

• Supports flat panels and interactive displays from 42 to 86 inches.
• Handles a maximum display load of 280 lb.
• Provides up to 25.6 inches (650 mm) of motorized height adjustment.
• Uses UL-recognized actuators controlled by an included switch.
• Features four 4-inch swivel casters with locking capability.
• Supports a VESA-compatible 800 x 600 mounting pattern.
• Includes a rear shelf for a mini PC and power strip.

The motorized adjustment system is particularly relevant when one display must accommodate changing touch positions. Instead of removing or manually resetting the mounted panel, users can operate the control to change its height within the available adjustment range.

What Makes It Different

The defining feature of the SR598ML3E is the integration of powered height control into a high-capacity mobile cart. The motorized columns, large wall plate, locking caster system, rear equipment shelf, and cord-storage provision form a single platform for the display and its supporting equipment. Its certifications and standards include RoHS, TAA, VESA, and UL, and its environmental compliance follows the Restriction of Hazardous Substances requirements.

Final Assessment

The Peerless-AV SmartMount SR598ML3E provides a documented combination of 42- to 86-inch display support, 280 lb capacity, 25.6 inches of powered height adjustment, and mobile positioning on locking swivel casters. For interactive or touch-display installations requiring adjustable height, equipment storage, and movement between rooms, it brings the display, compatible mini PC, power strip, controls, and cable storage together on one floor-standing cart.
