Mustang Pro Ceiling Mount Back-to-back 700x500 150Lbs Max Weight

Ideal Use Cases

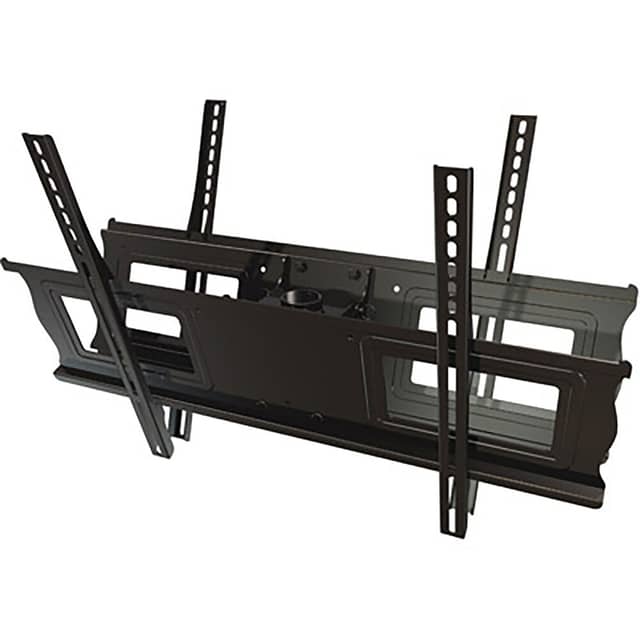

The Mustang Professional MPCD-L75U is a commercial-grade ceiling display mount designed for back-to-back screen arrangements with 37- to 75-inch TVs. It fits commercial and retail settings where displays need an overhead position and viewing access from opposing directions. The supplied technical data supports hole patterns up to 723 mm wide by 501 mm high, equivalent to 28.5 inches by 19.8 inches. The listing title also references a 700 x 500 format, providing both the nominal listing reference and the maximum pattern stated in the detailed specifications.

Why Choose This Model

This model combines broad display compatibility with flexible positioning. It provides up to 20° of continuous tilt, allowing the viewing angle to be adjusted without relying on fixed tilt increments. A full 360° rotation range supports precise screen orientation after the ceiling position has been established. The universal design works with any compatible hole pattern within the stated 723 x 501 mm maximum, making the mount suitable for installations where display dimensions may vary while remaining within the supported 37- to 75-inch range.

Installation and Integration

The MPCD-L75U mounts to any 1.5-inch NPT threaded pipe, providing a defined interface for integration into a compatible ceiling-mounting system. A pre-assembled securing screw is included to make installation faster and easier. The supplied hardware is pre-sorted, helping installers identify the necessary components without sorting through an undivided hardware assortment. Hardware for installation to wood studs or concrete surfaces is also included. Together, the standardized pipe connection, pre-assembled securing component, and organized hardware pack support a more direct installation process in commercial or retail environments.

Performance Highlights

Positioning flexibility is a central feature of this ceiling mount. Continuous tilt of up to 20° helps direct screens toward the intended viewing area, while 360° rotation permits comprehensive horizontal orientation. The detailed technical specifications state a 300 lb load rating. The supplied product title separately identifies a 150 lb maximum weight. Because the source data does not explain how these two capacity figures relate to the back-to-back configuration, they are presented separately and should be verified for the intended installation before equipment is mounted.

What Makes It Different

The MPCD-L75U brings several installation-focused features together in one commercial ceiling-mount design: back-to-back display positioning, support for 37- to 75-inch TVs, universal hole-pattern compatibility, continuous tilt, full rotation, and a standard 1.5-inch NPT threaded-pipe interface. Its maximum listed hole-pattern range of 723 x 501 mm extends slightly beyond the 700 x 500 reference in the product title. The pre-sorted hardware and pre-assembled securing screw further distinguish the model by addressing component organization and installation efficiency as part of the supplied package.

Final Assessment

The Mustang Professional MPCD-L75U is suited to commercial and retail projects requiring a back-to-back ceiling display arrangement with adjustable viewing angles. Its 37- to 75-inch display range, maximum 723 x 501 mm hole-pattern compatibility, 20° continuous tilt, 360° rotation, and 1.5-inch NPT interface provide the core specifications needed for planning an installation. Included wood-stud and concrete mounting hardware supports common mounting surfaces, while the organized hardware pack simplifies component selection. Installers should reconcile the supplied 150 lb and 300 lb capacity references with the intended configuration before installation.
